Special Tools Required

NOTE:
  • Before you troubleshoot, record all freeze data and any on-board snapshot, and review GENERAL TROUBLESHOOTING INFORMATION .
  • Fresh fuel has a higher volatility that will create greater pressure/vacuum. The best condition for testing is less than a full tank of fresh fuel. If possible, to assist in leak detection, add 1 gallon of fresh fuel to the tank (as long as it will not fill the tank), just before starting these procedures.
  1. Check the fuel fill cap (the cap must say TIGHTEN TO CLICK). It should turn 1/4 turn after it's tight, then it clicks.

    Is the correct fuel fill cap installed and properly tightened?

    YES:  Go to step  2.

    NO:  Replace or tighten the cap, then go to step  24.

  2. Check the fuel fill cap seal (A) and the fuel fill pipe mating surface (B). Verify that the fuel fill cap tether cord (C) is not caught under the cap.
    Fig 1: Identifying Fuel Fill Cap Seal, Fuel Fill Pipe Mating Surface & Fuel Fill Cap Tether Cord
    G05953253Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Is the fuel fill cap seal missing or damaged, is the fuel fill pipe damaged, or is the tether cord caught under the cap?

    YES:  Replace the fuel fill cap or the fuel fill pipe, then go to step  24.

    NO:  Go to step  3.

  3. Turn the ignition switch to ON (II).
  4. Clear the DTC with the HDS.
  5. Turn the ignition switch to LOCK (0).
  6. Check for a poor connection or damage at the fuel tank vapor recirculation tube.

    Is the tube OK?

    YES:  Go to step  7.

    NO:

    • Replace the fuel tank vapor recirculation tube, then go to step  26.
    • If needed, replace the fuel tank (see FUEL TANK REPLACEMENT ), then go to step  26.

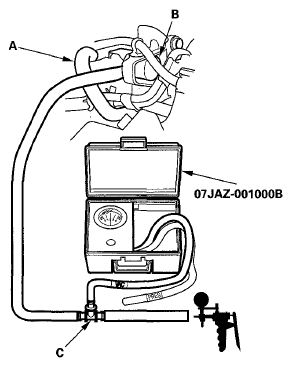

  7. Disconnect the vacuum hose (purge line) (A) from the EVAP canister purge valve (B) in the engine compartment, then connect a T-fitting (C) from the vacuum gauge and the vacuum pump/gauge, 0-30 in.Hg, to the vacuum hose as shown below.
    Fig 2: Identifying Vacuum Hose (Purge Line) & EVAP Canister Purge Valve
    G05953254Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Slowly apply about 2 kPa (0.6 in.Hg, 15 mmHg) of vacuum to the hose.

    Does it hold vacuum for 1 minute?

    YES:  Go to step  9.

    NO:  Replace the EVAP canister purge valve, then go to step  25.

  9. Turn the ignition switch to ON (II).
  10. Do the EVAP FUNCTION TEST in the INSPECTION MENU with the HDS.

    Is the result OK?

    YES:  intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the FTP sensor, the EVAP canister purge valve, the EVAP canister vent shut valve, and the ECM/PCM.

    NO:  Go to step  5.

  11. Turn the ignition switch to LOCK (0).
  12. Disconnect the fuel tank vapor recirculation tube (A) from the EVAP canister (B), and plug the EVAP canister port (C).
    Fig 3: Identifying Fuel Tank Vapor Recirculation Tube, EVAP Canister & Plug EVAP Canister Port
    G05953255Courtesy of AMERICAN HONDA MOTOR CO., INC.

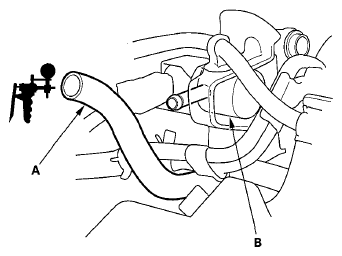

  13. Remove the vacuum gauge, and connect a vacuum pump/gauge, 0-30 in.Hg, to the vacuum hose as shown.
    Fig 4: Connecting Vacuum Pump/Gauge To Vacuum Hose
    G05953256Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Turn the ignition switch to ON (II).
  15. Select EVAP CVS ON in the INSPECTION MENU with the HDS.
  16. Apply vacuum to the hose until the FTP reads 1.90 V (-0.59 in.Hg, -15.1 mmHg).
    NOTE: Be careful not to exceed the vacuum. If you do, the FTP sensor can be damaged.
  17. Monitor the FTP SENSOR in the DATA LIST for 1 minute with the HDS.

    Does the voltage increase more than 0.2 V (0.1 in.Hg, 0.5 mmHg)?

    YES:  Go to step  18.

    NO:  Go to step  23.

  18. Select EVAP CVS OFF in the INSPECTION MENU with the HDS.
  19. Disconnect the fresh air hose (A) from the EVAP canister vent shut valve (B), and plug the EVAP canister vent shut valve port (C).
    Fig 5: Identifying Fresh Air Hose, EVAP Canister Vent Shut Valve & Valve Port
    G05953257Courtesy of AMERICAN HONDA MOTOR CO., INC.
  20. Apply vacuum to the EVAP system until the FTP reads 1.90 V (-0.59 in.Hg, - 15.1 mmHg).
    NOTE: Be careful not to exceed the vacuum. If you exceed the vacuum, the FTP sensor can be damaged.
  21. Monitor the FTP SENSOR in the DATA LIST for 1 minute with the HDS.

    Does the voltage increase more than 0.2 V (0.1 in.Hg, 2.5 mmHg)?

    YES:  Go to step  22.

    NO:  Replace the EVAP canister vent shut valve, then go to step  25.

  22. Check for a loose or damaged EVAP canister purge line between the EVAP canister and the EVAP canister purge valve, or a leaking EVAP canister purge valve.

    Are the line and the EVAP canister purge valve OK?

    YES:  Replace these parts, then go to step  25:

    • FTP sensor O-ring
    • EVAP canister vent shut valve case and O-ring
    • EVAP canister

    NO:  Reconnect or repair the EVAP canister purge hose, then go to step  25.

  23. Select EVAP CVS OFF in the INSPECTION MENU with the HDS.
  24. Check these parts for looseness or damage:
    • Fuel fill pipe
    • Fuel vapor return pipe

      Are the parts OK?

      YES:  Check the fuel tank unit base gasket (see FUEL TANK UNIT REMOVAL AND INSTALLATION ), and check the fuel tank, then go to step  25.

      NO:  Repair or replace the damaged parts, then go to step  25.

  25. Reconnect all hoses and connectors.
  26. Turn the ignition switch to ON (II).
  27. Reset the ECM/PCM with the HDS.
  28. Do ECM/PCM IDLE LEARN PROCEDURE .
  29. Do the EVAP FUNCTION TEST in the INSPECTION MENU with the HDS.

    Is the result OK?

    YES:  Troubleshooting is complete.

    NO:  Check for poor connections or loose terminals at the FTP sensor, the EVAP canister purge valve, the EVAP canister vent shut valve, and the ECM/PCM, then go to step  1.
