DTC P0400: Exhaust Gas Recirculation (EGR) System Leak Detected
General Description

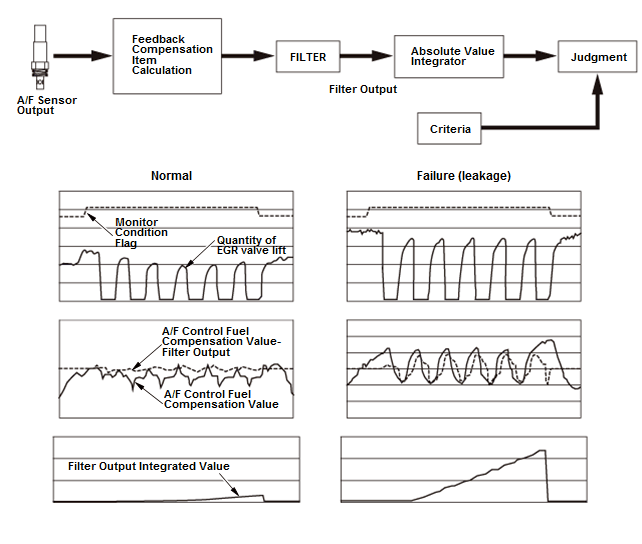

The exhaust gas recirculation (EGR) system failure conditions include a sticking lift sensor, restricted passages, and leakage from the external piping. At any specific EGR lift value there is a corresponding air/fuel ratio compensation value. If the air/fuel ratio compensation value is greater than the corresponding EGR lift value, the powertrain control module (PCM) detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type, OBD Status
| Execution | Once per driving cycle | |
| Sequence | P0404, P2413 are judged as OK | |
| Duration | 9.0 seconds or more | |
| DTC Type | Two drive cycles, MIL on | |
| OBD Status | PASSED/FAILED/NOT COMPLETED (STILL TESTING) | |
Enable Conditions
| Condition | Minimum | Maximum | |
|---|---|---|---|
| Engine coolant temperature [ECT SENSOR 1] |
156 °F (69 °C) | - | |
| Intake air temperature [IAT SENSOR (1)] |
50 °F (10 °C) | - | |
| Engine speed [ENGINE SPEED] |
1, 500 rpm | 3, 000 rpm | |
| Vehicle speed [VEHICLE SPEED] |
50 mph (80 km/h) | - | |
| EGR flow rate | 10 % | - | |
| 12 volt battery voltage [BATTERY] | 10.5 V | - | |
| Fuel feedback | Closed loop at stoichiometric | ||
| Monitoring priority* 1 | P0133, P0420, P219A | ||
| Monitoring priority* 2 | P0133, P0420 | ||
| Other | Without excessive load change | ||
*1:: '14-15
*2:: '17
[ ]: HDS Parameter
Malfunction Threshold
The air/fuel ratio (A/F) sensor response parameter according to the opening and closing of the EGR is 32, 768 (LT80A) or less.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- EGR pipe misinstalled
- EGR valve failure
Confirmation Procedure
Operating Condition
- 1.

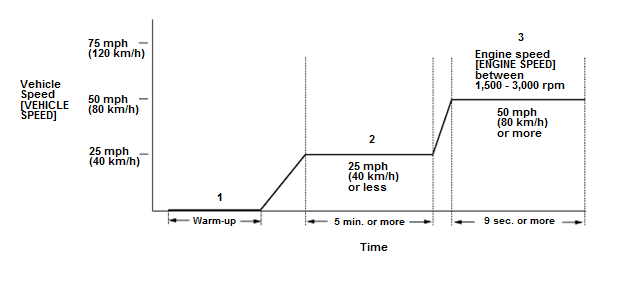

Enter the maintenance mode, then start the engine. Hold the engine speed [ENGINE SPEED] at 3, 000 rpm without load (in P or N) until the radiator fan comes on, then let it idle.
- 2.
Drive the vehicle at a steady speed of 25 mph (40 km/h) or less, for at least 5 minutes.
- 3.
Drive immediately at a steady speed of 50 mph (80 km/h) or more and engine speed [ENGINE SPEED] between 1, 500 - 3, 000 rpm for at least 9 seconds.
- Drive the vehicle in this manner only if the traffic regulations and ambient conditions allow.
With the HDS
None.
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.
Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
