Honda
>>
2014
>>
Pilot EX, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Relay And Control Unit Locations
>>
Engine Compartment
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Compartment

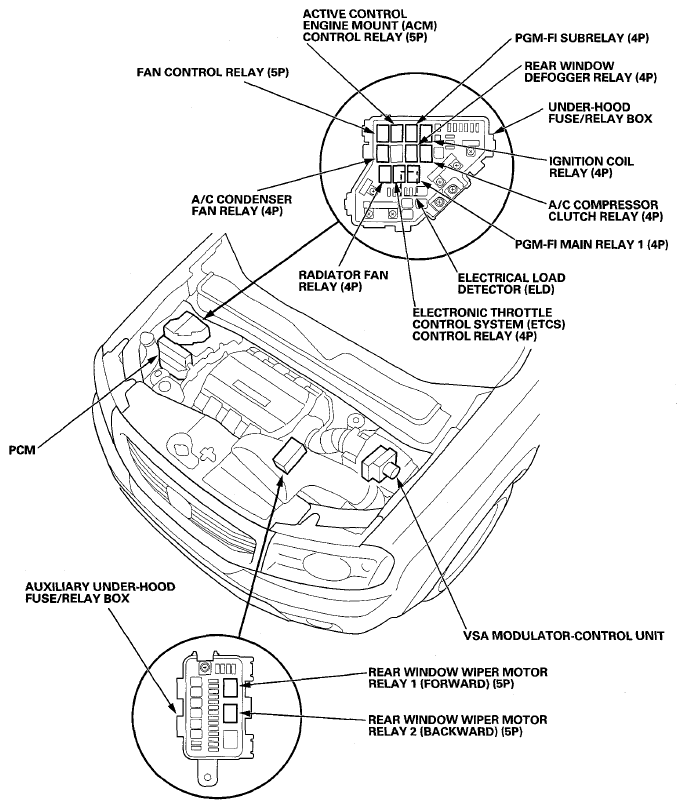

Fig 1: Engine Compartment Relay And Control Unit Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
