Security Hood Switch Circuit Troubleshooting

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2014 Honda Ridgeline, 2013 Honda Ridgeline, 2012 Honda Ridgeline, 2011 Honda Ridgeline, and 2010 Honda Ridgeline. However, it is still accessible from the selected car via links, so may be relevant.

Turn the ignition switch to ON (II).
With the hood closed, select SECURITY with the HDS, and enter the DATA LIST.
Check the ON/OFF information of the SECURITY HOOD SWITCH in the DATA LIST.
Is information indicator ON?

YES -Go to step 4.

NO -Go to step 8.
Disconnect the security hood switch 2P connector.
Check the ON/OFF information of the SECURITY HOOD SWITCH in the DATA LIST.
Is information indicator OFF?

YES -Faulty security hood switch; replace the hood latch (see HOOD LATCH REPLACEMENT ).

NO -Go to step 6.
Disconnect under-hood fuse/relay box connector H (18P).
Check for continuity between under-hood fuse/relay box connector H (18P) terminal No. 2 and body ground.

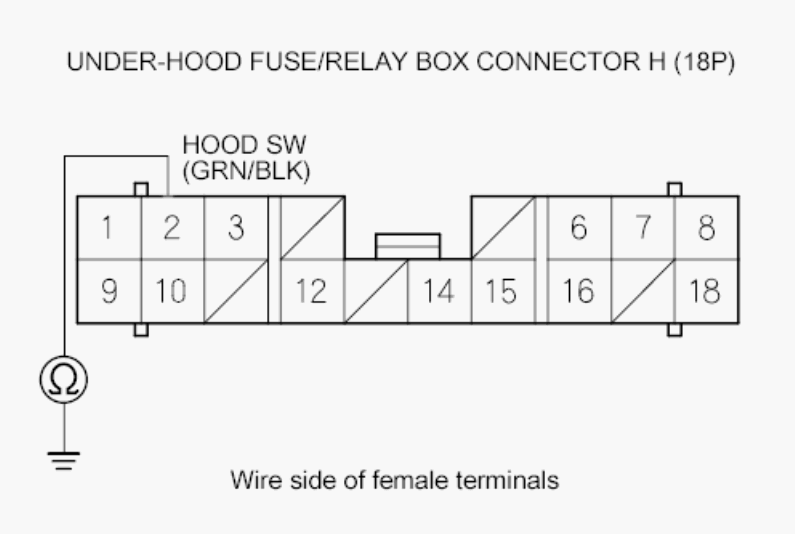

Fig 1: Checking For Continuity Between Under-Hood Fuse/Relay Box Connector H (18P) Terminal No. 2 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Repair a short to ground in the wire.

NO -Faulty relay control module; replace the under-hood fuse/relay box (see REMOVAL AND INSTALLATION ).
Disconnect the security hood switch 2P connector.
Connect security hood switch 2P connector terminal No. 2 and body ground with a jumper wire.

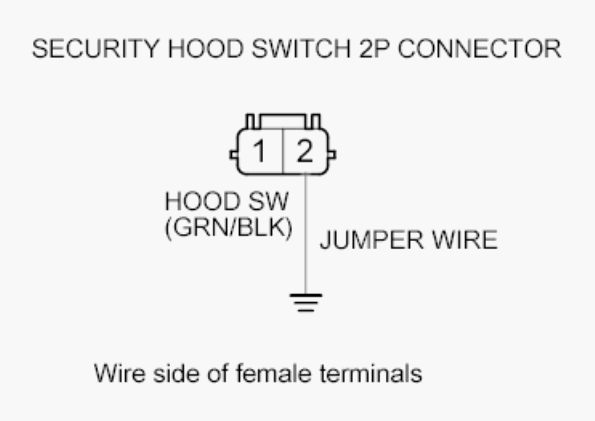

Fig 2: Connecting Security Hood Switch 2P Connector Terminal No. 2 And Body Ground With A Jumper Wire
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the ON/OFF information of the SECURITY HOOD SWITCH in the DATA LIST.
Is information indicator ON?

YES -Go to step 11.

NO -Go to step 12.
Check for continuity between security hood switch 2P connector terminal No. 1 and body ground.

Fig 3: Checking For Continuity Between Security Hood Switch 2P Connector Terminal No. 1 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Faulty security hood switch; replace the hood latch (see HOOD LATCH REPLACEMENT ).

NO -Repair an open or high resistance in the ground wire or poor ground (G201).
Connect under-hood fuse/relay box connector H (18P) terminal No. 2 and body ground with a jumper wire.

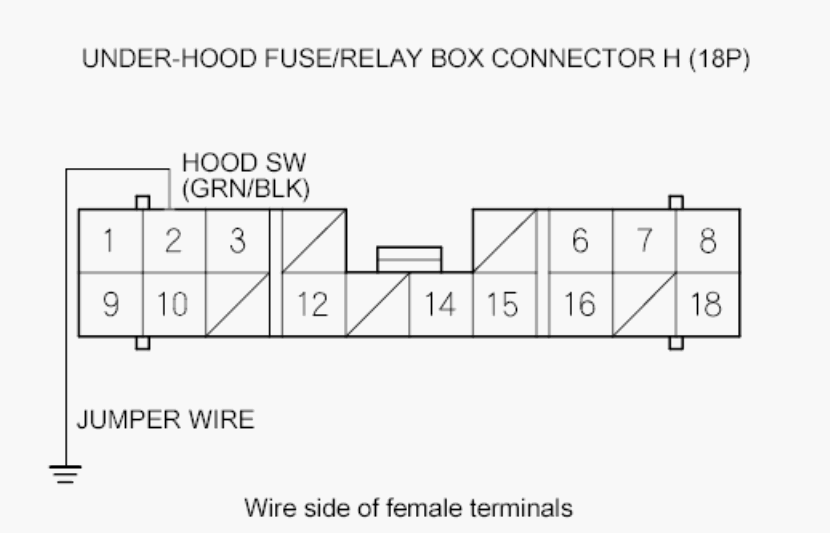

Fig 4: Connecting Under-Hood Fuse/Relay Box Connector H (18P) Terminal No. 2 And Body Ground With A Jumper Wire
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check the ON/OFF information of the SECURITY HOOD SWITCH in the DATA LIST.
Is information indicator ON?

YES -Repair an open or high resistance in the wire.

NO -Faulty relay control module; replace the under-hood fuse/relay box (see REMOVAL AND INSTALLATION ).
