Park Pin Switch Replacement

NOTE:
  • The A/T gear position indicator panel light harness is not available separately from the park pin switch and the D3 switch connector harness; replace the A/T gear position indicator panel light harness/park pin switch/D3 switch connector harness, and the connector as a set.
  • Refer to the SHIFT LEVER DISASSEMBLY AND REASSEMBLY  as needed during the following procedures.
  1. Remove the shift lever assembly (see SHIFT LEVER REMOVAL  ).

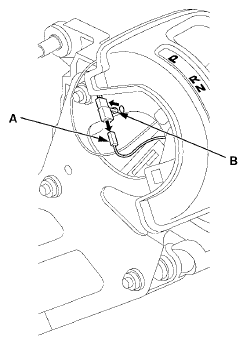

  2. Disconnect the D3 switch connector (A), and remove the harness connector clip (B).
    Fig 1: Removing Harness Connector Clip
    G08087447Courtesy of AMERICAN HONDA MOTOR CO., INC.

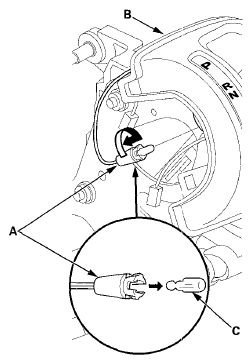

  3. Remove the A/T gear position indicator panel light socket (A) from the A/T gear position indicator panel (B), and remove the A/T gear position indicator panel light bulb (C) from the socket.
    Fig 2: Removing A/T Gear Position Indicator Panel Light Socket
    G08087448Courtesy of AMERICAN HONDA MOTOR CO., INC.

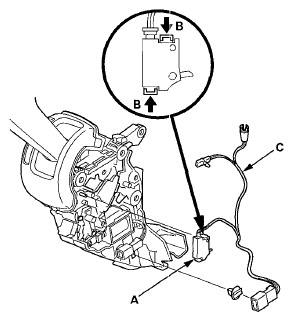

  4. Remove the park pin switch (A) by expanding its locks (B) from the shift lever. Remove the A/T gear position indicator panel light harness/park pin switch/D3 switch connector harness (C).
    Fig 3: Identifying Park Pin Switch, Locks And Switch Connector Harness
    G08087449Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Replace the A/T gear position indicator panel light harness/park pin switch/D3 switch connector harness.
  6. Install the light bulb in the A/T gear position indicator panel light socket.

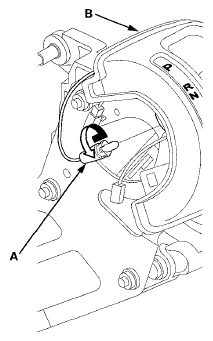

  7. Install the A/T gear position indicator panel light socket (A) in the A/T gear position indicator panel (B).
    Fig 4: Installing A/T Gear Position Indicator Panel Light Socket
    G08087450Courtesy of AMERICAN HONDA MOTOR CO., INC.

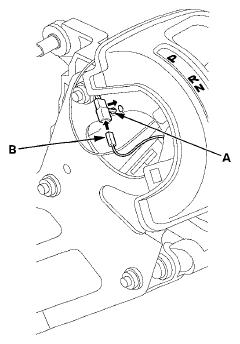

  8. Install the D3 switch connector clip (A), and connect the D3 switch connector (B).
    Fig 5: Identifying Switch Connector Clip
    G08087451Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Install the shift lever assembly (see SHIFT LEVER INSTALLATION  ).
