Intake Manifold Removal & Installation: Removal
1. Intake Manifold - Exploded View
Exploded View

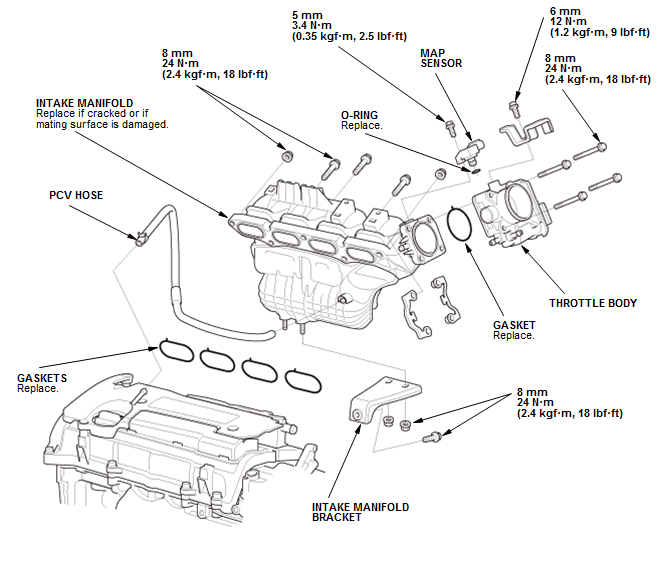

Fig 1: Exploded View Of Intake Manifold With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
