HandsFreeLink Control Unit 32P Connector

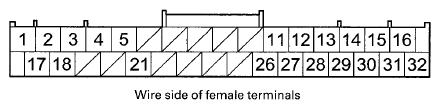

Fig 1: Identifying HandsFreeLink Control Unit 32P Connector Terminals
G08091285Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cavity Wire Color Terminal Name Description
1 BLK GND Body ground to G403
2 WHT HFT STRG SW Detects control signal from HFL switch
3 LT GRN HFT MUTE HFL mute signal
4 BLK GA BUS+ GA-Net bus communication signal
5 WHT GA BUS- GA-Net bus communication signal
11 WHT GA AUDIO R+ Outputs sound signal
12 RED GA AUDIO L- Outputs sound signal
13 GRN TELM SIG+ Outputs telephone sound signal to audio-navigation unit(2) or audio unit(3)
14 GRY(1) MIC SH Shield for terminals No. 15 and No. 16
15 BRN MIC+ Inputs microphone signal positive
16 YEL MIC- Inputs microphone signal positive
17 WHT +B Continuous power source
18 PUR ACC Power source for accessories
21 GRY(1) GA BUS SH Shield for terminals No. 4 and No. 5
26 GRY(1) GA AUDIO SH Shield for terminals No. 11, No. 12, No. 27 and No. 28
27 BLK GA AUDIO R- Outputs sound signal
28 GRN GA AUDIO L- Outputs sound signal
29 RED TELM SIG- Outputs telephone sound signal to audio-navigation unit(2) or audio unit(3)
30 GRY(1) TELM SIG SH Shield for terminals No. 13 and No. 29
31(2) YEL HFT NAVI MIC+ Outputs microphone signal positive
32(2) BRN HFT NAVI MIC- Outputs microphone signal positive
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
(2) With navigation
(3) Without navigation
