Relay And Control Unit Locations: Rear

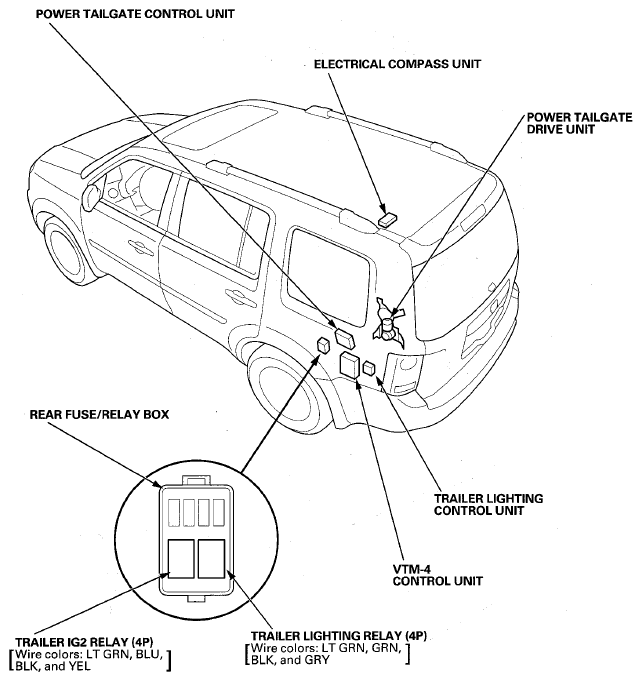

Fig 1: Relay And Control Unit Locations (Rear)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
