Under-Hood Fuse/Relay Box
WARNING: This page is about a different car, the 2011 Honda Pilot, 2010 Honda Pilot, and 2009 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

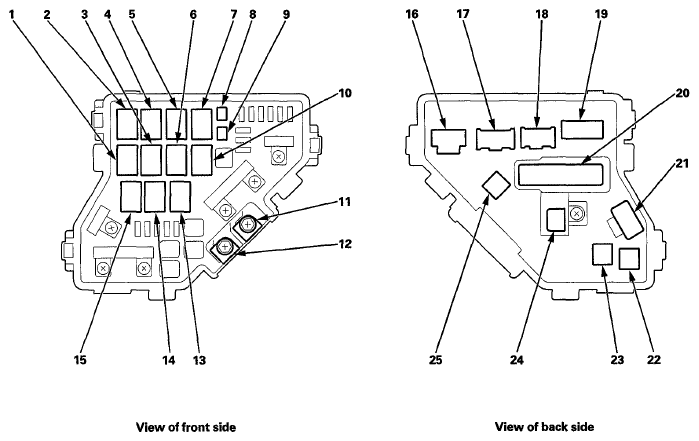

UNDER-HOOD FUSE/RELAY BOX REFERENCE TABLE
| Socket | Ref | Terminal | Connects to | Notes |
|---|---|---|---|---|
| A (Electrical load detector) | 24 | 3 | Right engine compartment wire harness | - |
| A/C compressor clutch relay | 10 | 4 | - | - |
| A/C condenser fan relay | 1 | 44 | - | - |
| PGM-FI subrelay | 5 | 4 | - | - |
| B | 25 | - | Not used | - |
| Front blower motor relay | 3 | 4 | - | - |
| C | 16 | - | Not used | - |
| D | 18 | 8 | Right engine compartment wire harness | - |
| Diode (for radiator fan) | 8 | - | - | - |
| Diode (for A/C condenser fan) | 9 | - | - | - |
| E | 17 | 10 | Right engine compartment wire harness | - |
| Electronic throttle control system (ETCS) control relay | 14 | 4 | - | - |
| F | 20 | 20 | Right engine compartment wire harness | - |
| Fan control relay | 2 | 5 | - | - |
| G | 22 | 1 | Right engine compartment wire harness | - |
| H | 23 | 1 | Right engine compartment wire harness | - |
| Ignition coil relay | 7 | 4 | - | - |
| J | 19 | 4 | Right engine compartment wire harness | - |
| K | 21 | 2 | Right engine compartment wire harness | - |
| PGM-FI main relay 1 (Fl MAIN) | 13 | 4 | - | - |
| Radiator fan relay | 15 | 4 | - | - |
| Rear window defogger relay | 6 | 4 | - | - |
| ACTIVE CONTROL ENGINE MOUNT (ACM) control relay | 4 | 5 | - | - |
| T1 | 11 | - | Starter cable | - |
| T101 | 12 | - | Alternator | - |
