Exploded View

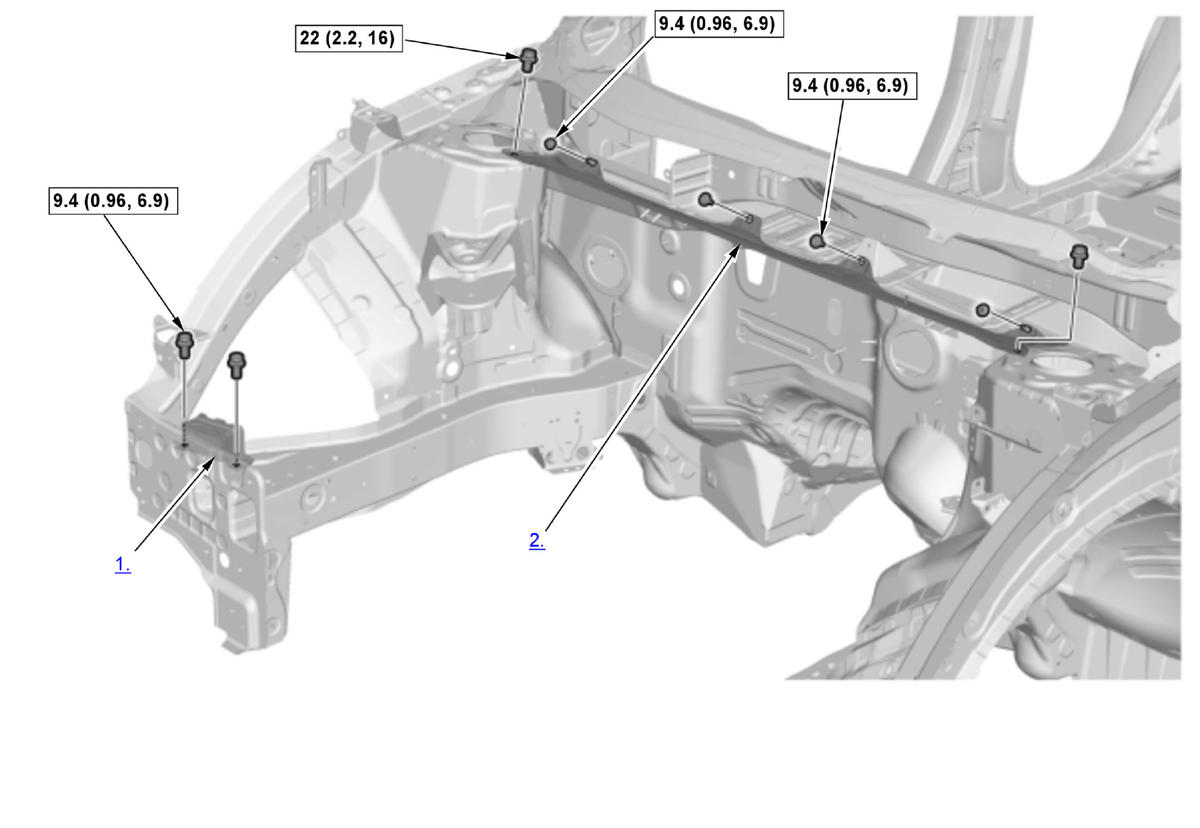

1

GHH427851Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)

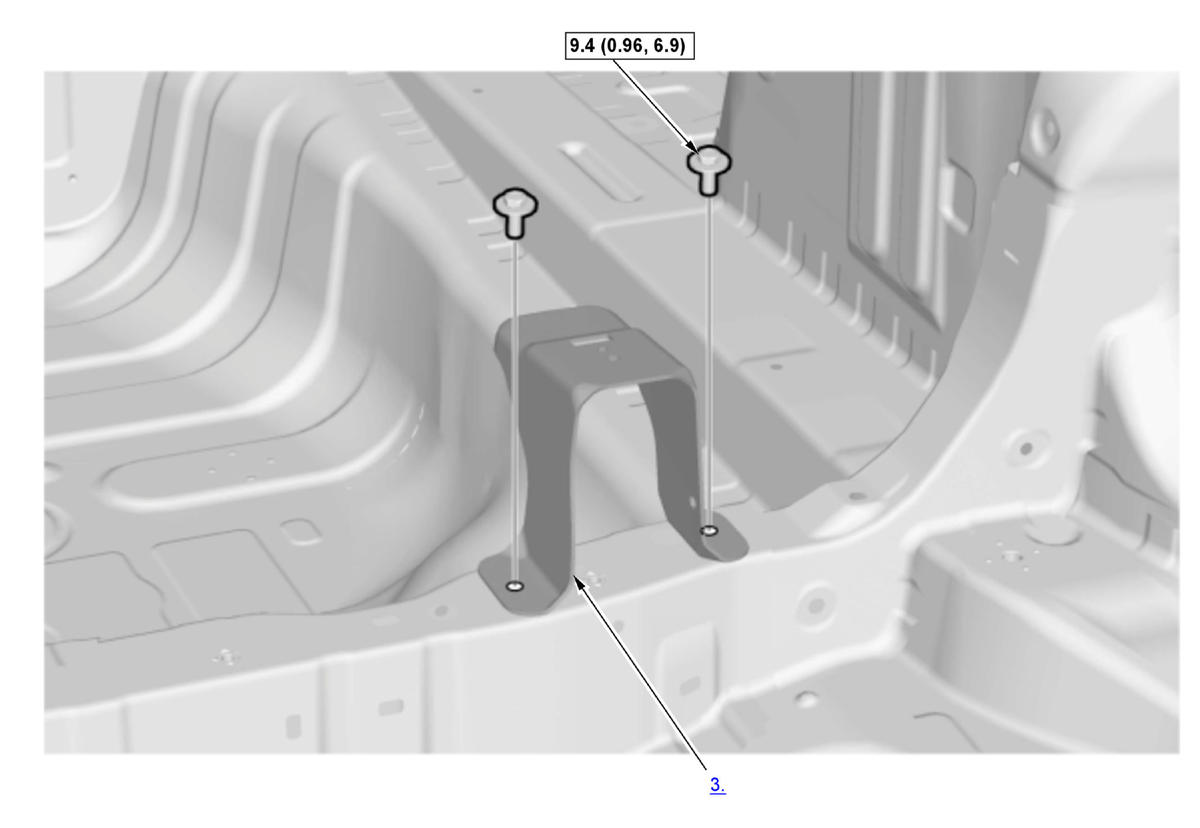

2

GHH427852Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)

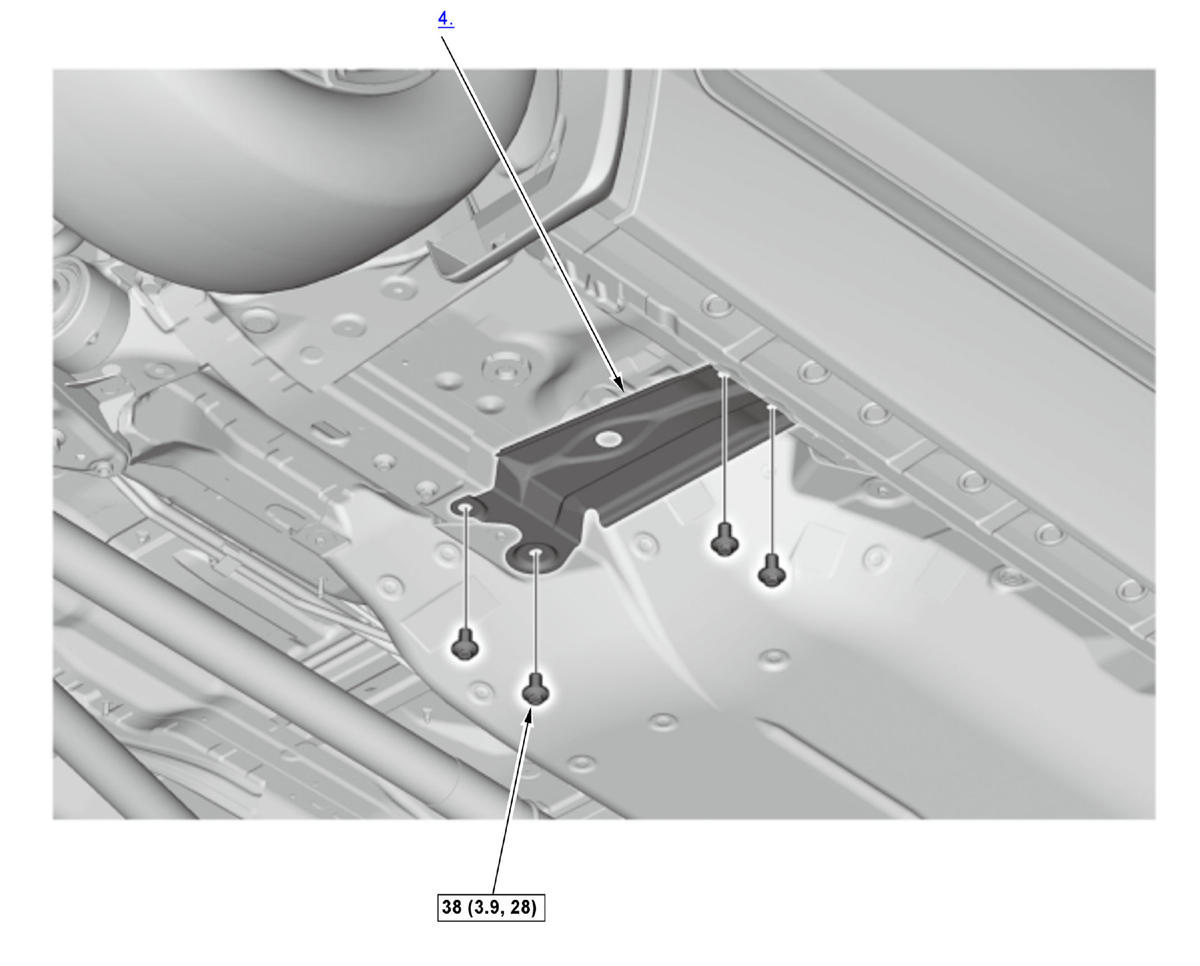

3

GHH427853Courtesy of HONDA, U.S.A., INC.
Torque: N.m (kgf.m, lbf.ft)
  1. Front Side Frame Dynamic Damper - Remove (For Some Models)
  2. Under Cowl Panel - Remove
  3. Rear Carpet Trim Bracket - Remove
  4. Front Floor Brace - Remove
