DTC U0128 (With Multipurpose Camera Unit) (2019 2020 2021)
DTC U0128: F-CAN Malfunction (Powertrain Control Module (PCM)-Electric Parking Brake Control Unit)
General Description

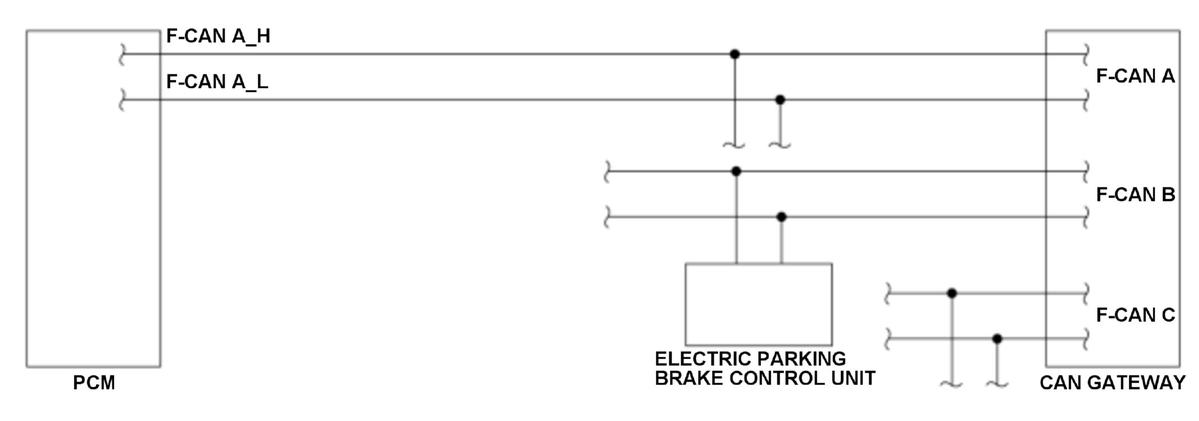

The controller area network (CAN) transmits/receives pulsing signals to/from the control modules simultaneously by using two signal lines (F-CAN H and F-CAN L). When the powertrain control module (PCM) cannot receive the signals from the electric parking brake control unit via the F-CAN lines for a set time, the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 1 second or more |
| DTC Type | One drive cycle, MIL off |
Enable Conditions
| Condition | Minimum | Maximum |
|---|---|---|
| 12 volt battery voltage [BATTERY] | 10.0 V | - |
[ ]: HDS Parameter
Malfunction Threshold
The PCM cannot receive any signals from the electric parking brake control unit via the F-CAN lines for at least 1 second.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Electric parking brake control unit failure (include fuse fall-outs)
- F-CAN circuit F-CAN A H line open
- F-CAN circuit F-CAN A L line open
- F-CAN circuit F-CAN A H line short to ground
- F-CAN circuit F-CAN A L line short to ground
- F-CAN circuit F-CAN B H line open
- F-CAN circuit F-CAN B L line open
- F-CAN circuit F-CAN B H line short to ground
- F-CAN circuit F-CAN B L line short to ground
- PCM internal circuit failure
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory. The MIL does not come on.
Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
