Catalytic Converter System Description - Overview (KA/KC)

Warm Up Three Way Catalytic Converter (WU-TWC), Under-Floor Three Way Catalytic Converter (Under-Floor TWC)

The warm up three way catalytic converter (WU-TWC) and the under-floor three way catalytic converter (Under-floor TWC) convert hydrocarbons (HC), carbon monoxide (CO), and oxides of nitrogen (NOx) in the exhaust gas to carbon dioxide (CO2), nitrogen (N2), and water vapor. The WU-TWC is attached directly under the each cylinder head that is integrated into the exhaust manifold.

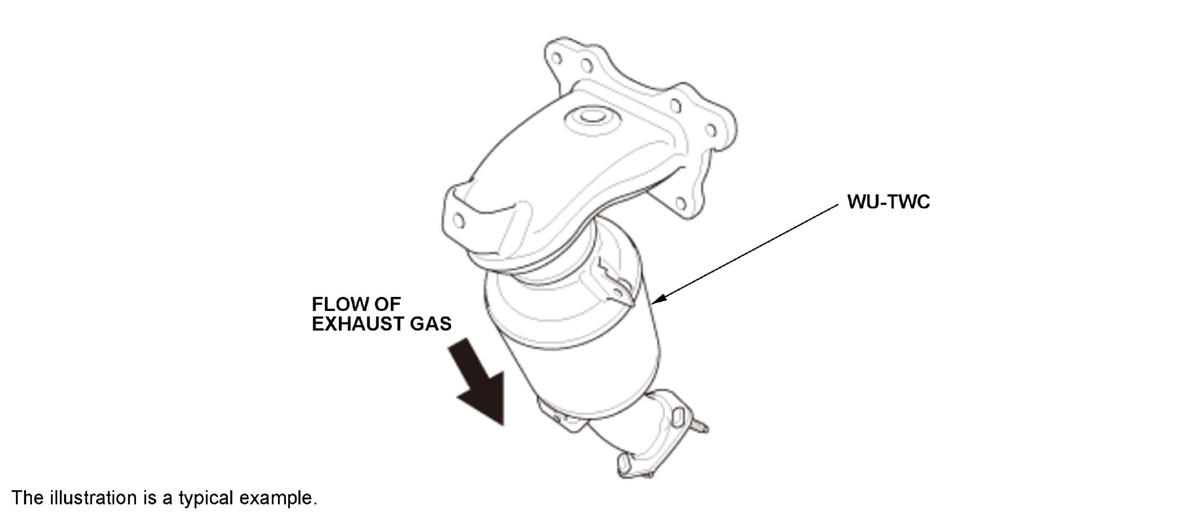

WU-TWC (Attached to the cylinder head)

Courtesy of HONDA, U.S.A., INC.

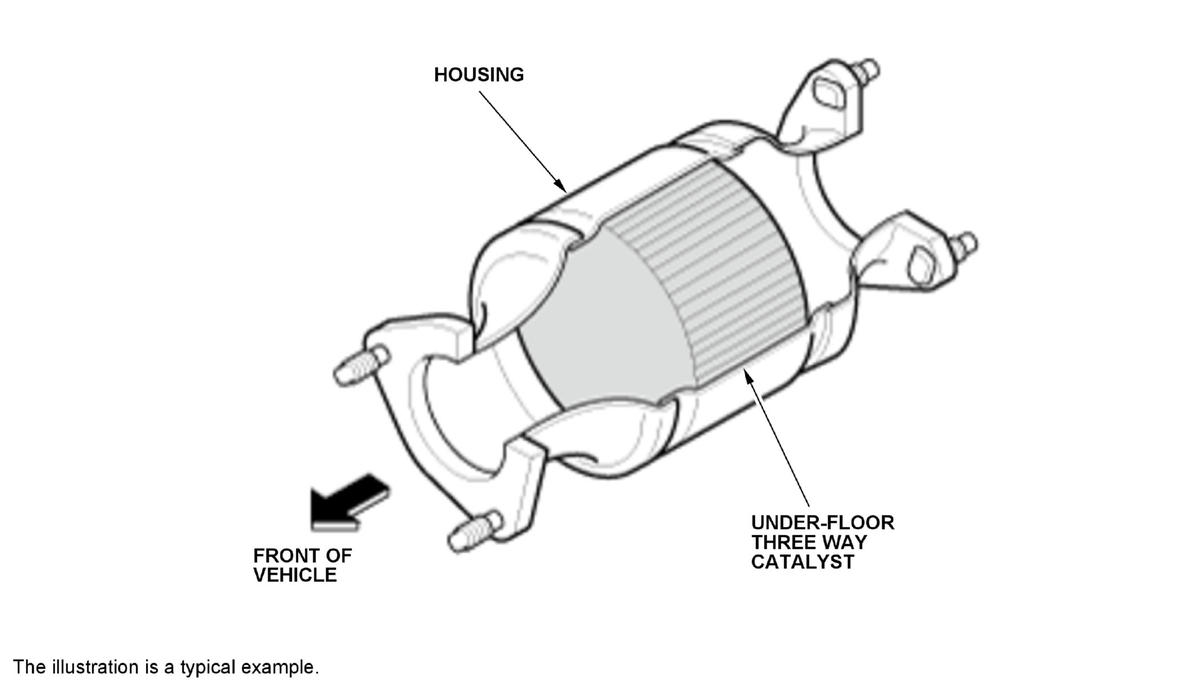

Under-floor TWC

Courtesy of HONDA, U.S.A., INC.
