Auxiliary Under-Dash Fuse Box

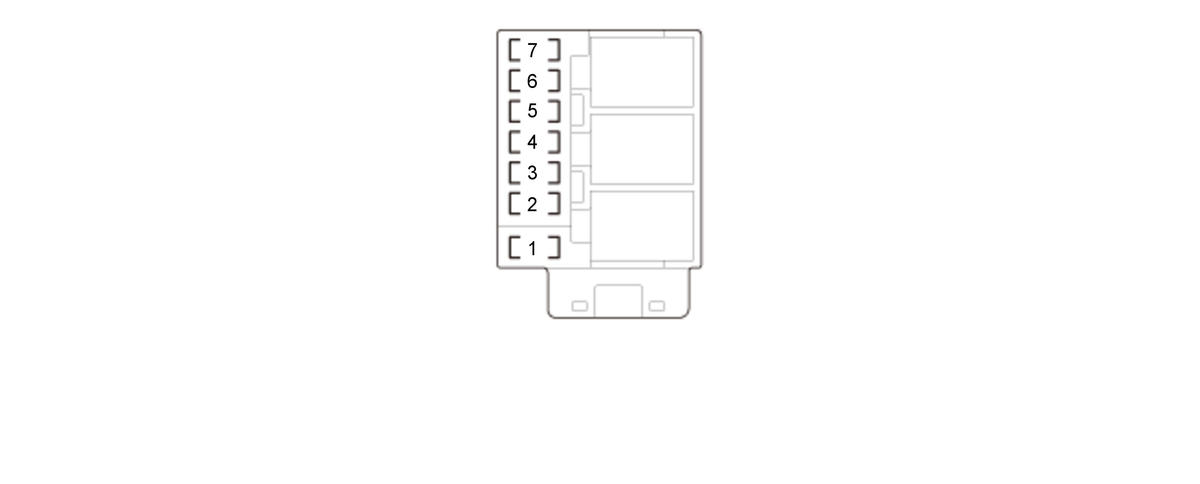

Auxiliary Under-Dash Fuse Box Legend
| Fuse Number | Amps | Component(s) or Circuit(s) Protected | Feature |
|---|---|---|---|
| D1 | 10 A | ANC/active sound control unit (IG1 METER(DC/DC)), BSI radar units (IG1 METER(DC/DC)), Climate control unit (IG1 METER(DC/DC)), Front seat heater control unit (IG1 METER(DC/DC))*3, Gauge control module (IG1 METER(DC/DC)), Rear control panel, Second row seat heater control unit (IG1 METER)*4 (IG1 METER(7.5A))*5, Telematics control unit (IG1 METER(DC/DC))*1, Ventilated seat control unit (IG1 METER(DC/DC))*2 | *1: With telematics *2: With ventilated seat *3: Without ventilated seat *4: Second row seat (captain) *5: Second row seat (bench) |
| D2 | 7.5 A | Brake light relay, EPS control unit (IG1 VSA(DC/DC)), Steering angle sensor, VSA modulator-control unit (IG1 VSA(DC/DC)) | |
| D3 | 7.5 A | Engine mount control unit (IG1 ACM(DC/DC)), Millimeter wave radar (IG1 ACM(DC/DC)), Multipurpose camera unit (IG1 ACM(DC/DC))*, Multipurpose camera unit (LDW SW) (via RDM switch), RDM switch indicator | *: With multipurpose camera unit |
| D4 | 7.5 A | MICU (IG1 MICU(DC/DC)) | |
| D5 | 15 A | Center display unit (+B) | |
| D6 | 10 A | ANC/active sound control unit (+B BACKUP(DC/DC)), Automatic lighting/rain sensor*1, Telematics control unit (+B BACKUP(DC/DC)) | *: With automatic wiper |
| D7 | 7.5 A | Via DC-DC converter ACC relay: Telematics control unit (ACC(DC/DC)), USB charger unit B (ACC(DC/DC)) |
