Engine Oil: Replacement

Engine - Warm Up

1. Allow the engine to reach operating temperature (fan comes on at least twice).
Vehicle - Lift

Engine Oil - Drain

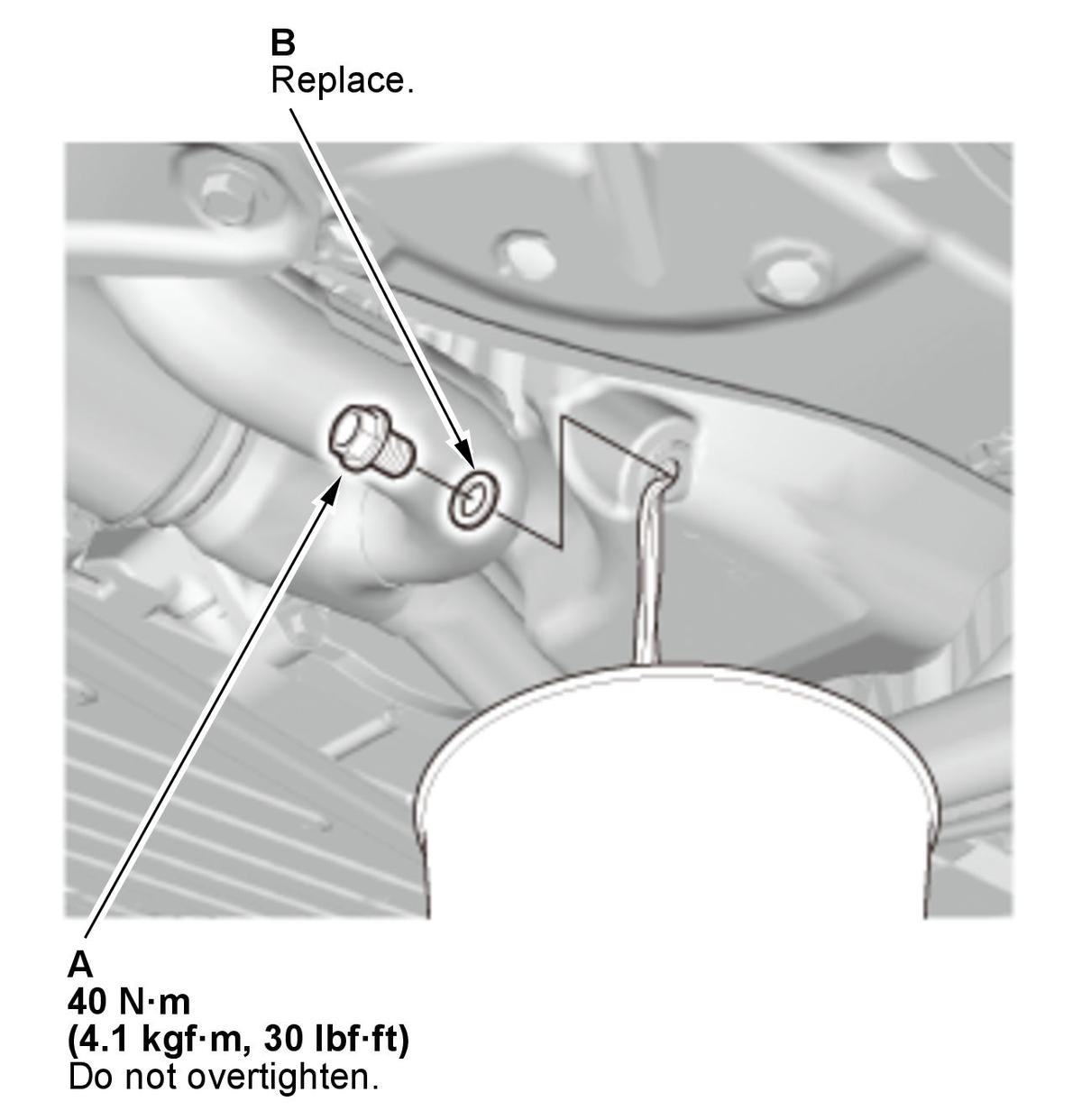

Fig 1: Engine Oil Drain Bolt With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Remove the drain bolt (A), and drain the engine oil.

2. Reinstall the drain bolt with a new washer (B) and torque to specification.

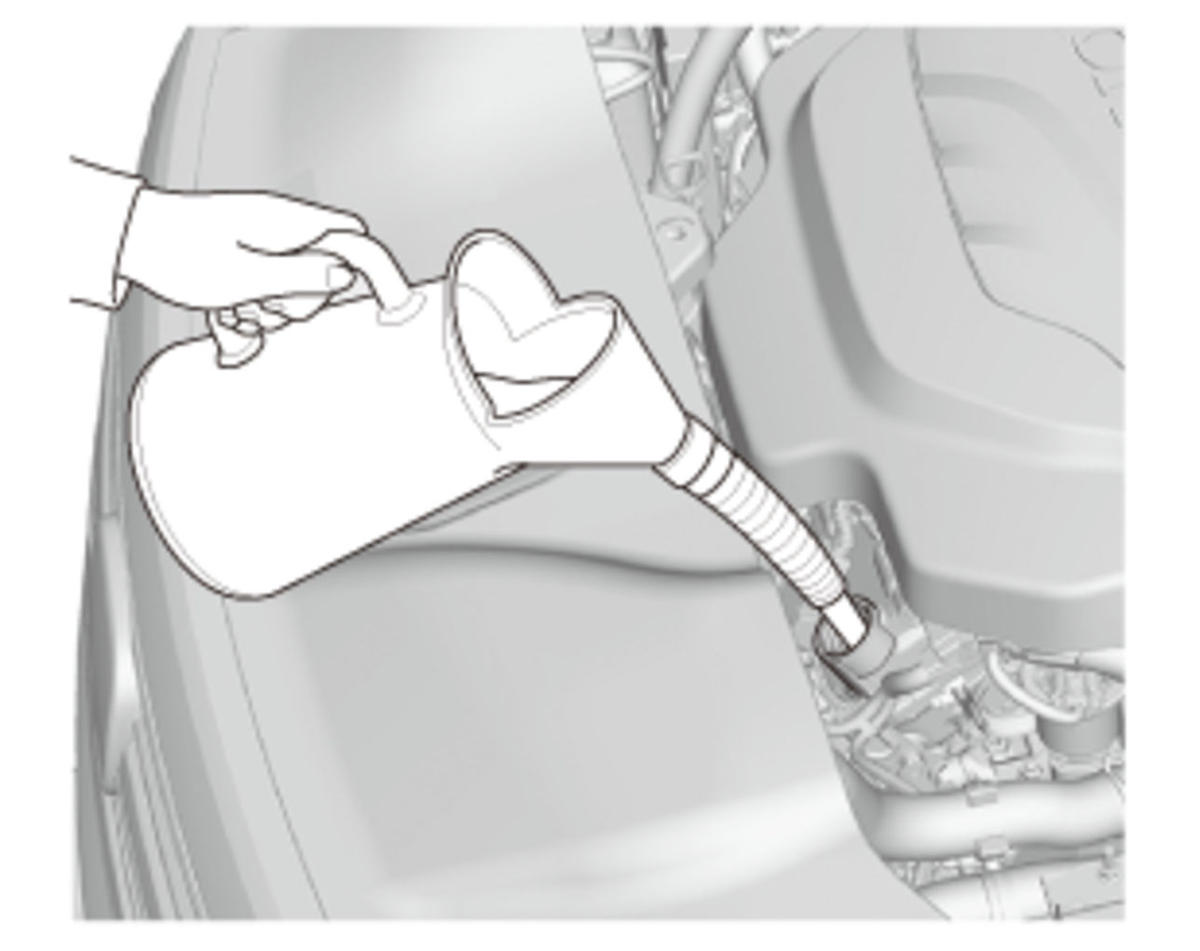

Engine Oil - Refill

Courtesy of HONDA, U.S.A., INC.

1. Refill the engine with the recommended engine oil .

Capacity
At Oil Change: 5.1 L (5.4 US qt)
At Oil Change including Filter:
5.4 L (5.7 US qt)
After Engine Overhaul:
6.1 L (6.4 US qt)

Engine Oil Level - Check

1. Run the engine for more than 3 minutes, then check the oil level and the oil leakage.

Maintenance Minder - Reset (With Maintenance Minder System)

1. If the Maintenance Minder required to replace the engine oil, reset the Maintenance Minder with the gauge - Refer to:
Maintenance Minder™ General Information (KA/KC) (2019 2020 2021) (see "Resetting the Maintenance Minder").
Maintenance Minder™ General Information (KA/KC) (2016 2017 2018) or
If the Maintenance Minder did not require to replace the engine oil, reset the Maintenance Minder with the HDS - Refer to:
Maintenance Minder™ General Information (KA/KC) (2019 2020 2021) or
Maintenance Minder™ General Information (KA/KC) (2016 2017 2018) (see "Resetting the Individual Maintenance Items").
