Visual Index - Dashboard

Location Index
Dashboard 1
Dashboard 2

Dashboard 1

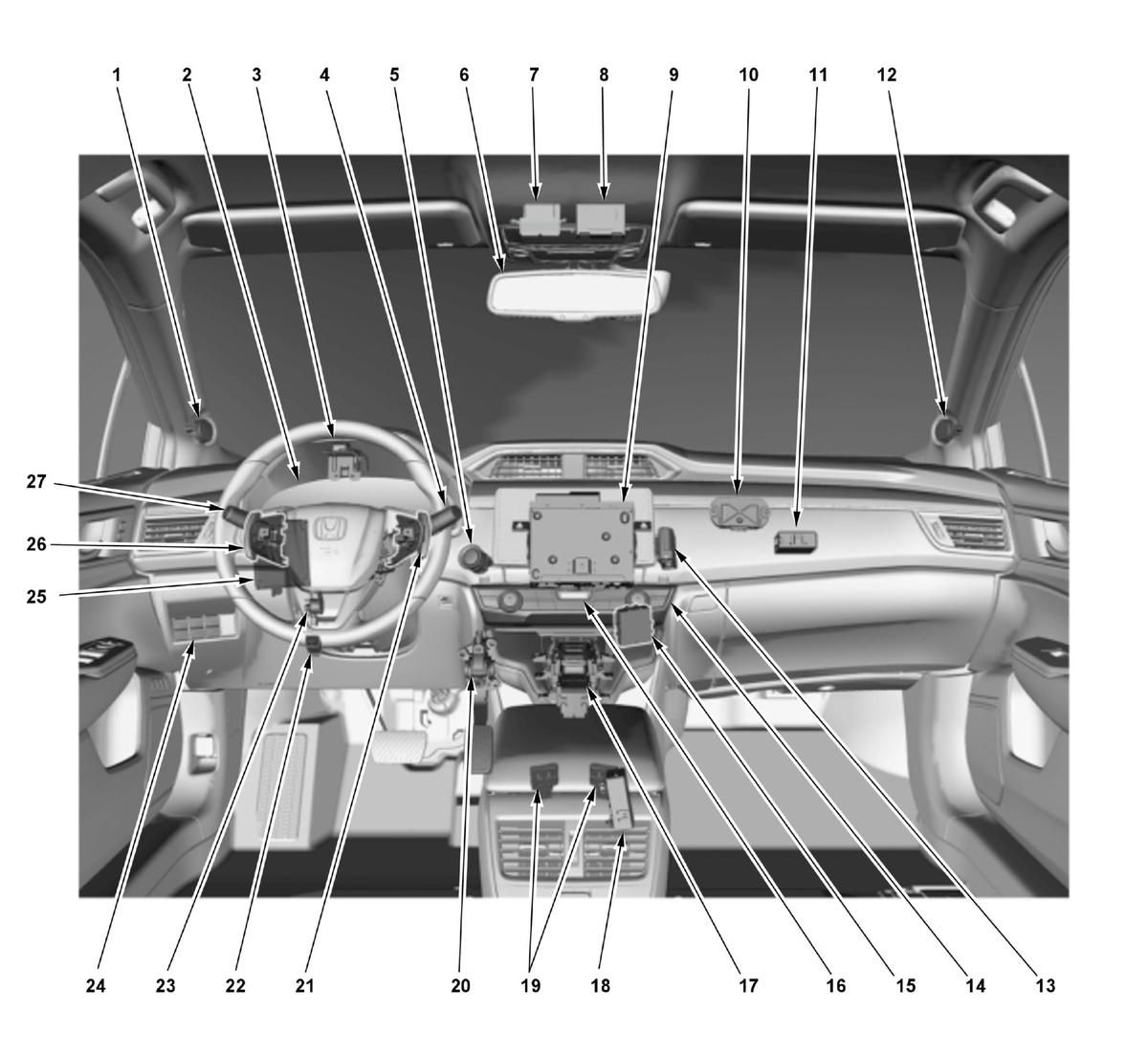

GHH418921

Courtesy of HONDA, U.S.A., INC.

Dashboard 1

No.	Component	Related System
1	Left Front Tweeter	Audio System Navigation System HandsFreeLink System

*1: With navigation*2: Without navigation

No.	Component	Related System
2	Gauge Control Module	Acoustic Vehicle Alerting System Exterior Lights Gauges Keyless Access System Keyless/Power Door Locks/Security System Reminder Systems Safety Indicator System Turn Signal/Hazard Warning Lights Wipers/Washers Adaptive Cruise Control (ACC) Collision Mitigation Braking System (CMBS) Lane Keeping Assist System (LKAS) Road Departure Mitigation LaneWatch
3	GPS Antenna	Audio System Navigation System
4	Wiper/Washer Switch	Wipers/Washers
5	Power Switch	Keyless Access System
6	Rearview Mirror - Automatic Dimming Inside Mirror - Front-Facing Lux Level Sensor - Rear-Facing Lux Level Sensor - Indicator	Automatic Dimming Mirrors
7	Front HFL-Navigation-ANC Microphone* 1Front HFL-ANC Microphone* 2	Audio System Navigation System HandsFreeLink System
8	HomeLink ® Unit	HomeLink Remote Control System
9	Audio-Navigation Unit* 1Audio Unit* 2	Audio System Navigation System HandsFreeLink System Telematics System LaneWatch
10	Active Noise Cancellation Unit	Audio System
11	Acoustic Vehicle Alerting Control Unit	Acoustic Vehicle Alerting System
12	Right Front Tweeter	Audio System HandsFreeLink System
13	CAN Gateway	Fuel and Emissions System
14	Climate Control Panel	Climate Control Power Mirrors Rear Window Defogger Seat Heaters
15	Park Pawl Actuator Driver Unit	Gear Keyless Access System
16	Hazard Warning Switch	Turn Signal/Hazard Warning Lights

*1: With navigation*2: Without navigation

No.	Component	Related System
17	SBW Shifter Assembly - SBW Shifter Control Module	Gear Driving Position Memory System (DPMS) Keyless Access System Wipers/Washers
18	Front Seat Heater Control Unit	Seat Heaters
19	USB Ports	Audio System
20	Accelerator Pedal Module - Accelerator Pedal Position (APP) Sensor	Fuel and Emissions System
21	Paddle Shifter+	Shift Position Indicator
22	Brake Pedal Position Switch	Exterior Lights Keyless Access System Adaptive Cruise Control (ACC) Collision Mitigation Braking System (CMBS)
23	Brake Pedal Stroke Sensor	Electric Servo Brake System
24	VSA Off Switch Acoustic Vehicle Alerting System Off Switch Charge Lid Opener Switch CMBS Off Switch RDM Switch	VSA System Acoustic Vehicle Alerting System Charge Lid Collision Mitigation Braking System (CMBS) Road Departure Mitigation
25	Battery Charge Control Module	Electric Powertrain
26	Paddle Shifter-	Shift Position Indicator
27	Combination Light Switch - Turn Signal Switch - Lanewatch Switch	Exterior Lights Reminder Systems Turn Signal/Hazard Warning Lights LaneWatch

*1: With navigation*2: Without navigation

Dashboard 2

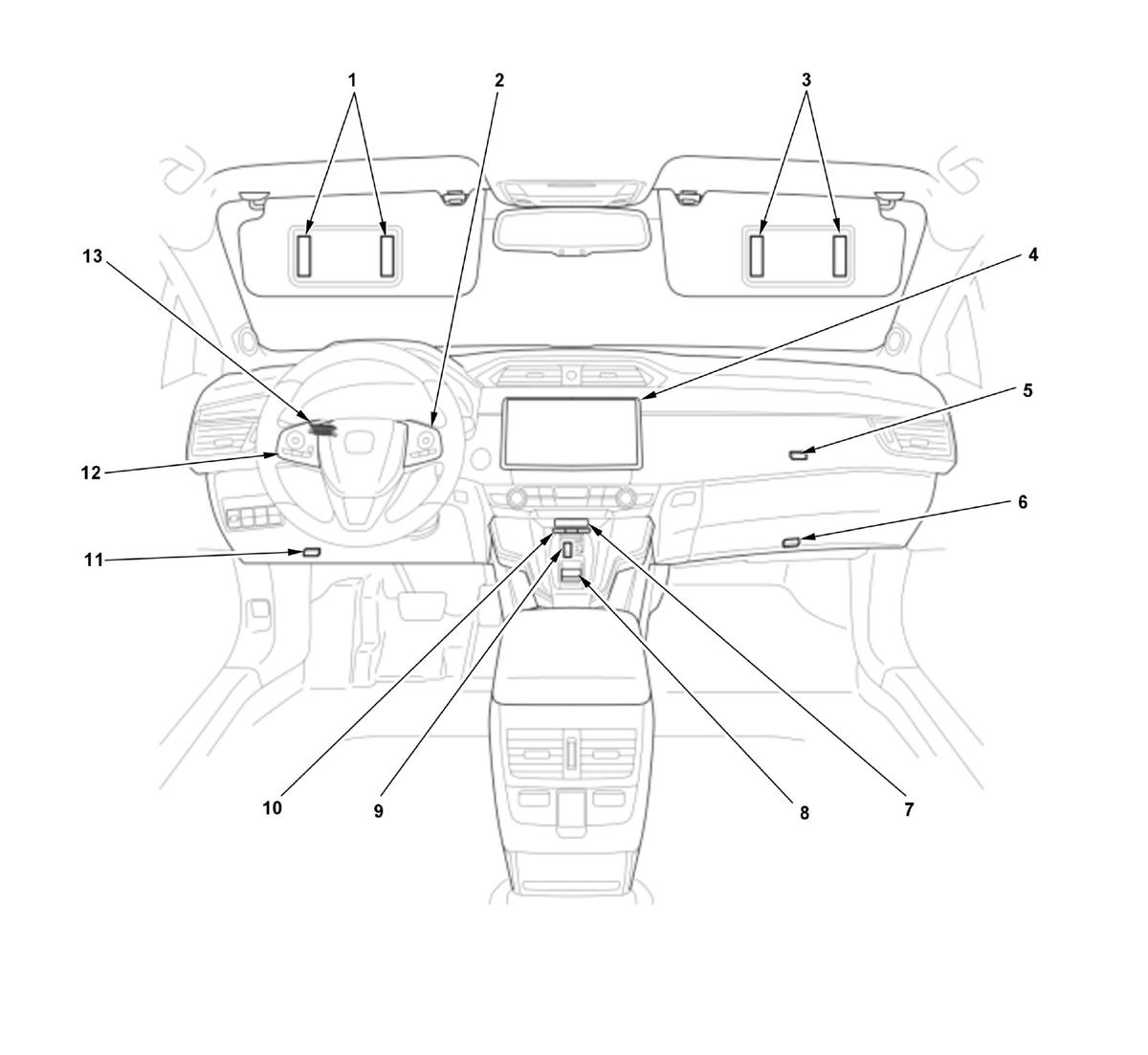

GHH418922

Courtesy of HONDA, U.S.A., INC.

Dashboard 2

No.	Component	Related System
1	Driver's Vanity Mirror Lights	Interior Lights
2	ACC Combination Switch - Distance Switch - LKAS Switch	Adaptive Cruise Control (ACC) Lane Keeping Assist System (LKAS)
3	Passenger's Vanity Mirror Lights	Interior Lights
4	Center Display Unit	Audio System Navigation System HandsFreeLink System Telematics System
5	Glove Box Light	Interior Lights
6	Front Passenger's Footwell Light	Interior Lights
7	Front Passenger's Airbag Cutoff Indicator	SRS (Supplemental Restraint System)

No.	Component	Related System
8	Electric Parking Brake Switch/Automatic Brake Hold Switch	Electric Parking Brake Electric Servo Brake System Gauges Keyless Access System
9	Center Tray Light	Interior Lights
10	ECON Switch HV Switch Sport Mode Switch	Gauges Electric Powertrain Shift Position Indicator
11	Driver's Footwell Light	Interior Lights
12	Audio Remote-HFL Switch - Information Switch	Gauges Audio System Navigation System HandsFreeLink System
13	Dashlights Brightness Control Switch	Gauges
