Wireless Charger

Symptom Diagnostic procedure Check for
Wireless charger indicator blinks (Flash 1) Check the wireless charger
  • Foreign matters between the wireless charger and electronic device
  • Misalignment of the electronic device
Wireless charger indicator blinks (Flash 2) Check for DTCs with the HDS; if a DTC is indicated, troubleshoot the DTC first. Wireless charger
Wireless charger indicator does not come on Symptom troubleshooting
  • Open in +B BACK UP wire
  • Open in GND wire or poor ground (G402)
  • Wireless charger

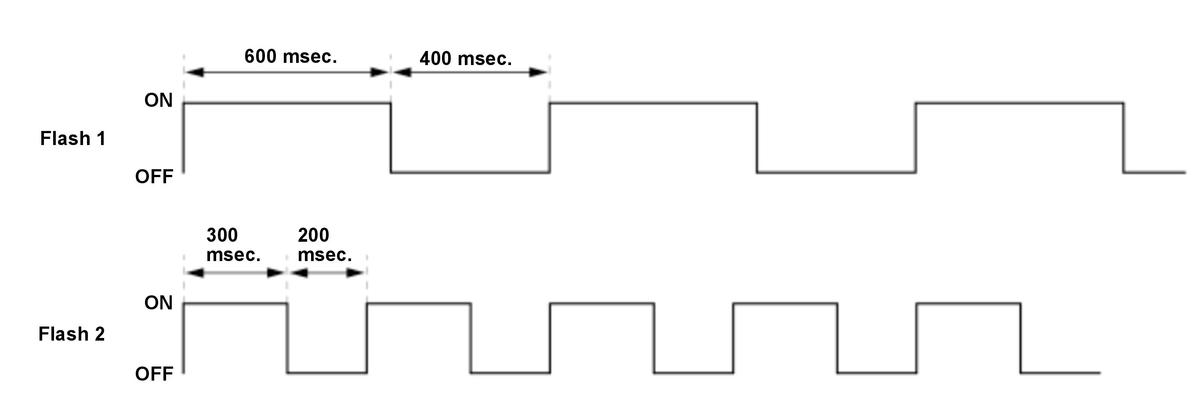

Indicator Flash Pattern

GHH306460Courtesy of HONDA, U.S.A., INC.
