DTC Advanced Diagnostics: P0602 (310) (Generator Motor Control Module)
DTC P0602 (310): Generator Motor Control Module Programming Error
General Description

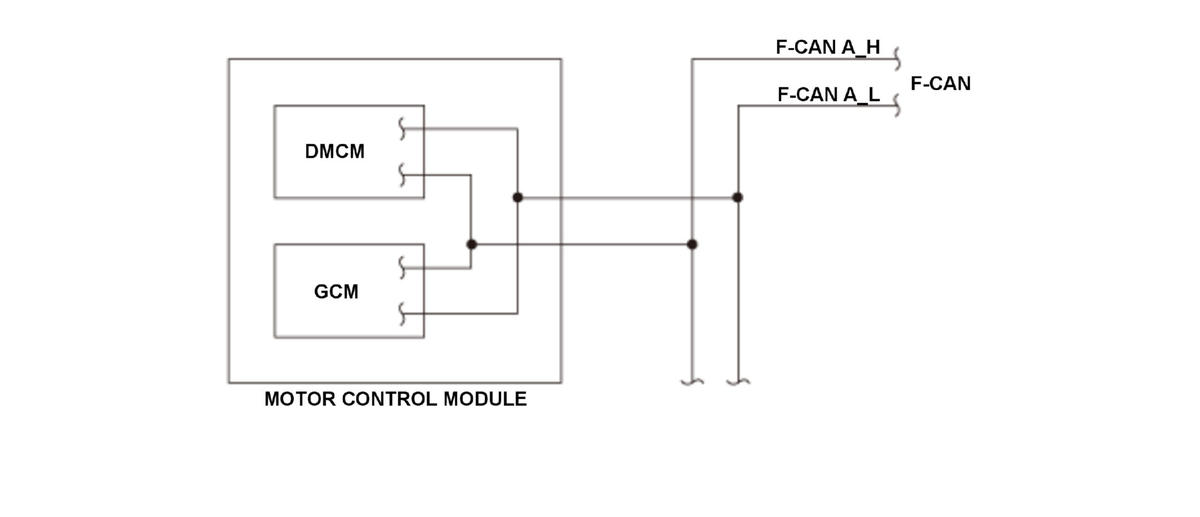

The drive motor control module (DMCM) and the generator control module (GCM) in the motor control module can be reprogrammed with updated software. Each processor confirms if the control program update is completed normally. When the power is interrupted during reprogramming, each processor detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | When the power is turned on after updating is executed and it failed |
| Sequence | None |
| Duration | - |
| DTC Type | One drive cycle, MIL on, POWER SYSTEM indicator on, 12 volt battery charging system indicator on |
Enable Conditions
| Condition | ||
|---|---|---|
| Vehicle | ON mode | |
Malfunction Threshold
The power is applied while the motor control module control program is not being rewritten normally, and the motor control module is activated.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- Motor control module program unwritten
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the MIL, the POWER SYSTEM indicator, and the 12 volt battery charging system indicator comes on and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the motor control module memory.
Conditions for clearing the DTC
The MIL, the POWER SYSTEM indicator, and the 12 volt battery charging system indicator are cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the POWER SYSTEM indicator, the 12 volt battery charging system indicator, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the 12 volt battery.
