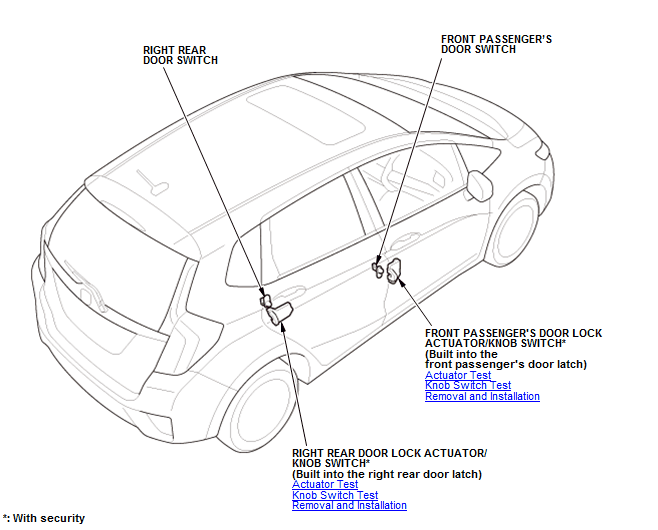

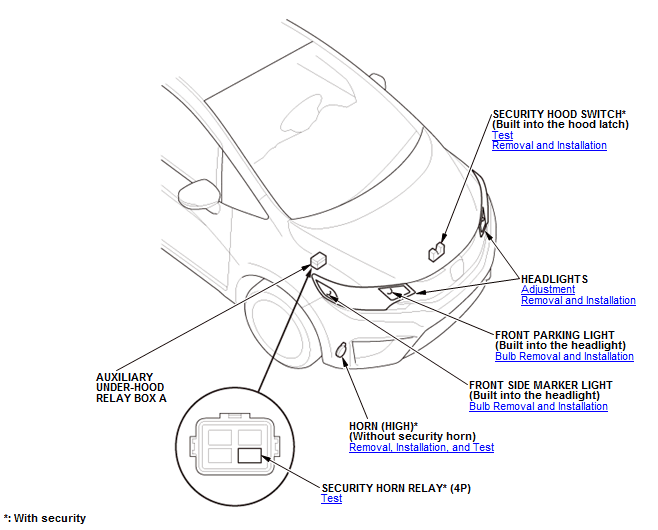

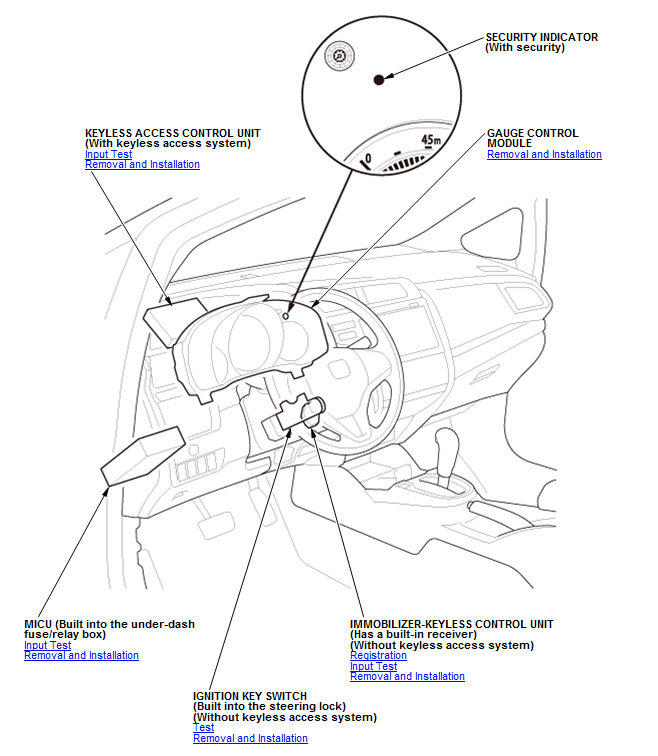

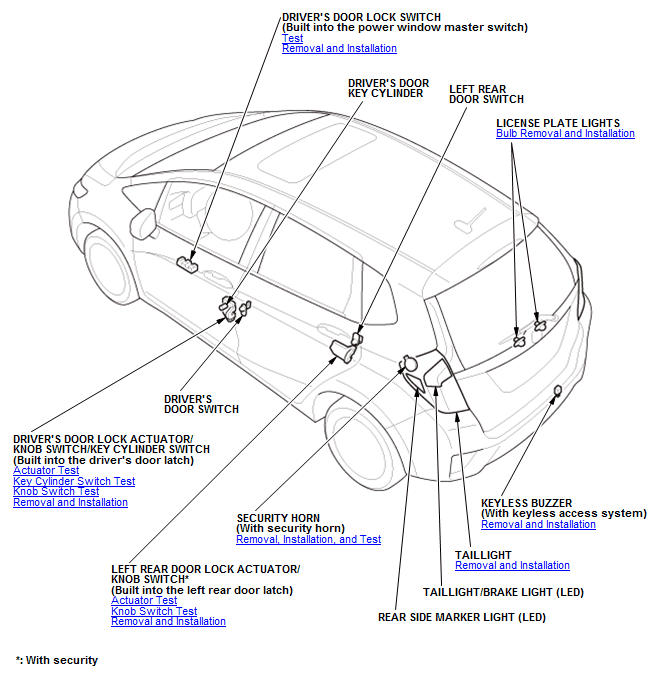

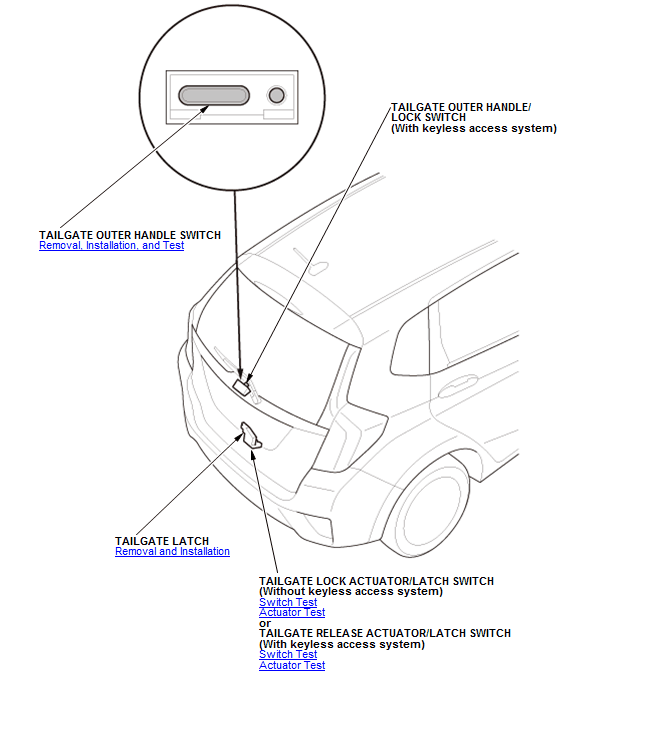

Keyless/Power Door Locks/Security System Component Location Index

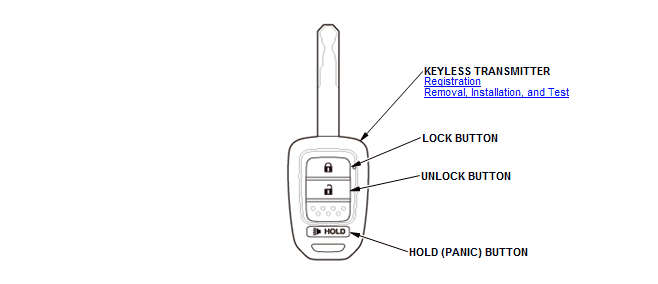

Without Keyless Access System

Courtesy of HONDA, U.S.A., INC.

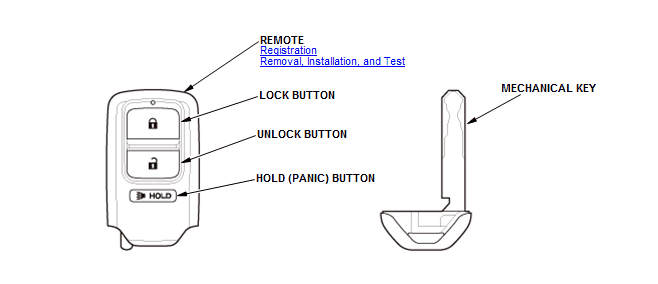

With Keyless Access System

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
