Immobilizer System (Without Keyless Access System): Control/Function

Immobilizer Function

The system provides mutual authentication between the immobilizer-keyless control unit, the PCM, and the MICU to turn the vehicle to the ON mode. The engine stays running after the engine start-up if the correct key is inserted.

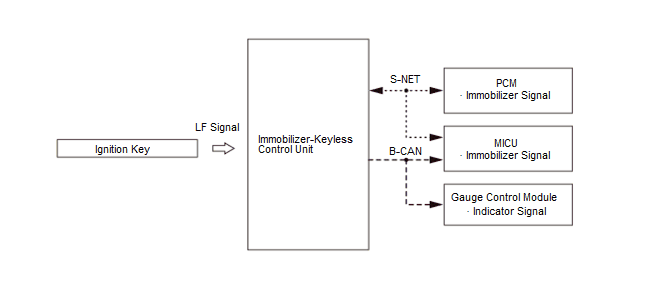

GHH83147Courtesy of HONDA, U.S.A., INC.
