Keyless Access System Description: Overview

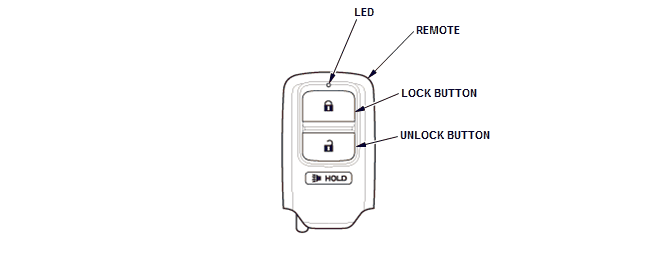

The keyless access system enables you to lock/unlock the doors and tailgate remotely. Keyless access system uses the LF-RF communication system. It sends the LF signal via the LF antenna, and the keyless access control unit receives the RF signal from the remote.
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|
