Security System & Keyless Entry System - Testing & Troubleshooting
>>
Description
>>
Keyless/Power Door Locks/Security System Description
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

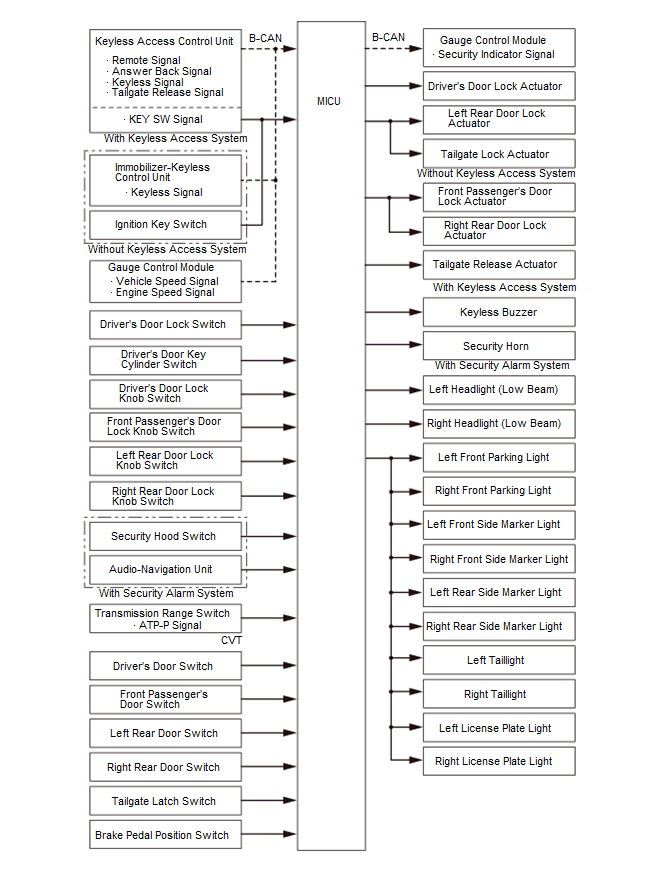

System Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
