Under-Dash Fuse / Relay Box Connector for Inputs and Outputs
| Connector Index |
|---|

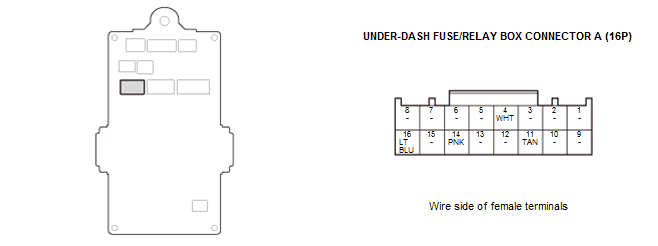

| UNDER-DASH FUSE/RELAY BOX CONNECTOR A (16P) |

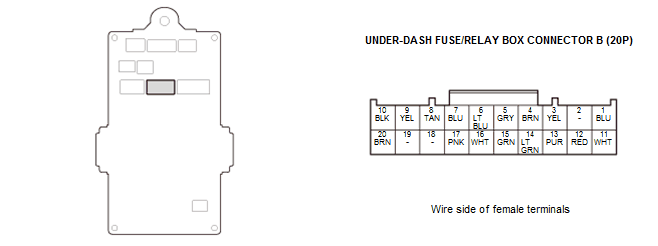

| UNDER-DASH FUSE/RELAY BOX CONNECTOR B (20P) |

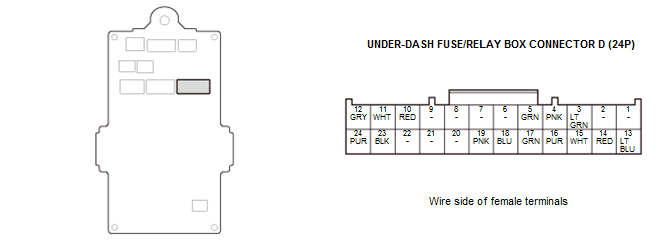

| UNDER-DASH FUSE/RELAY BOX CONNECTOR D (24P) |

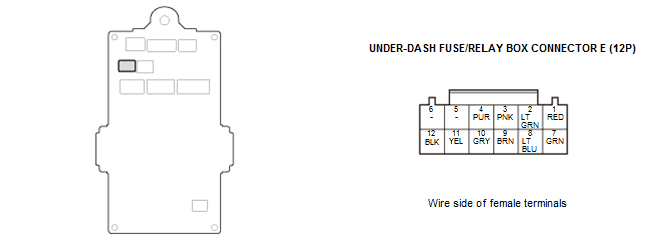

| UNDER-DASH FUSE/RELAY BOX CONNECTOR E (12P) |

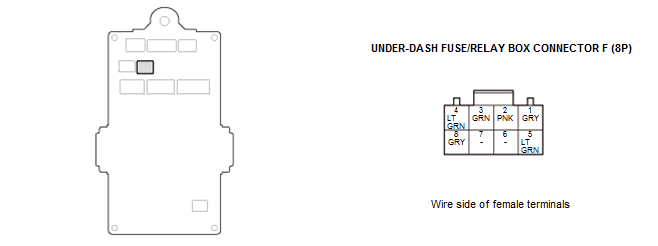

| UNDER-DASH FUSE/RELAY BOX CONNECTOR F (8P) |

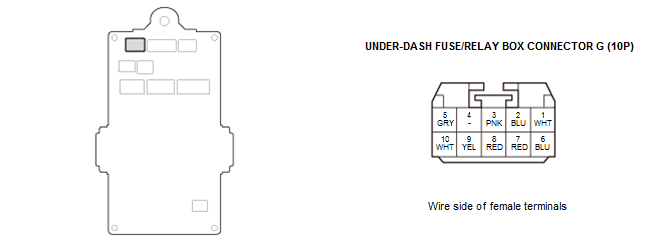

| UNDER-DASH FUSE/RELAY BOX CONNECTOR G (10P) |

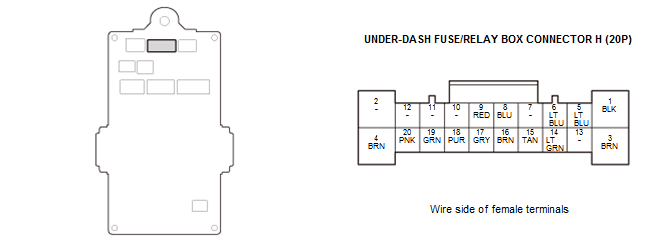

| UNDER-DASH FUSE/RELAY BOX CONNECTOR H (20P) |

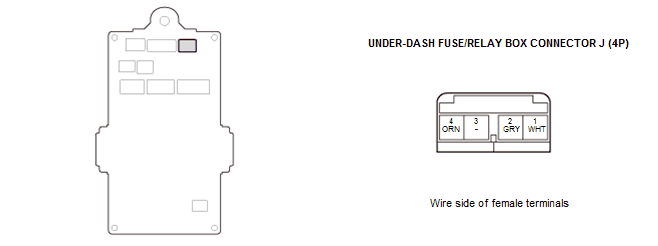

| UNDER-DASH FUSE/RELAY BOX CONNECTOR J (4P) |

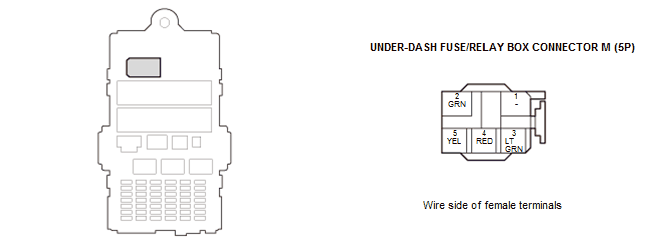

| UNDER-DASH FUSE/RELAY BOX CONNECTOR M (5P) |

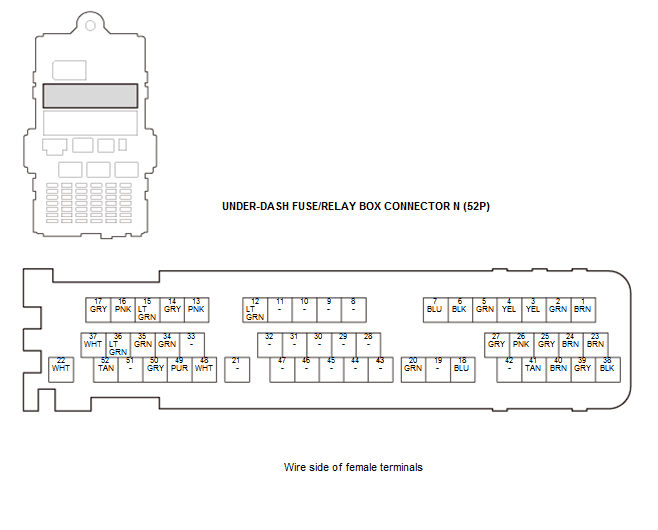

| UNDER-DASH FUSE/RELAY BOX CONNECTOR N (52P) |

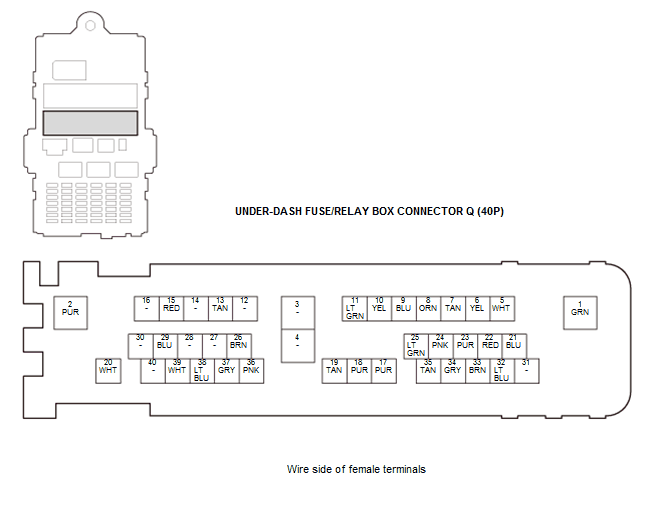

| UNDER-DASH FUSE/RELAY BOX CONNECTOR Q (40P) |

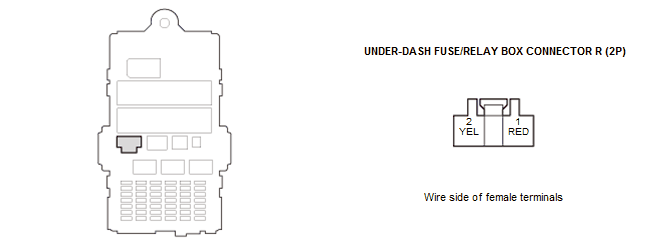

| UNDER-DASH FUSE/RELAY BOX CONNECTOR R (2P) |

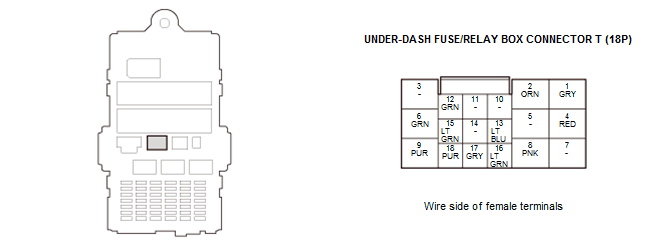

| UNDER-DASH FUSE/RELAY BOX CONNECTOR T (18P) |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | Not used | ------ | ------ |
| 2 | Not used | ------ | ------ |
| 3 | Not used | ------ | ------ |
| 4*1 | AS SILCON UNLOCK | Detects AS SILCON UNLOCK signal | With front passenger's door lock knob switch UNLOCK: less than 0.2 V With front passenger's door lock knob switch LOCK and MICU is wakeup mode: about battery voltageWith front passenger's door lock knob switch LOCK and MICU is sleep mode: pulse |
| 5 | Not used | ------ | ------ |
| 6 | Not used | ------ | ------ |
| 7 | Not used | ------ | ------ |
| 8 | Not used | ------ | ------ |
| 9 | Not used | ------ | ------ |
| 10 | Not used | ------ | ------ |
| 11*2 | P-PIN SW | Detects P-PIN SW signal | With vehicle in ACC or ON mode and park pin switch OFF: about battery voltageWith vehicle in ACC or ON mode and park pin switch ON: less than 0.2 V |
| 12 | Not used | ------ | ------ |
| 13 | Not used | ------ | ------ |
| 14 | HAZARD SW | Detects HAZARD SW signal | With hazard warning switch ON: about battery voltageWith hazard warning switch OFF: less than 0.2 V |
| 15 | Not used | ------ | ------ |
| 16*3 | RR DEF SW | Detects RR DEF SW signal | With rear window defogger switch ON: less than 0.2 VWith rear window defogger switch OFF and MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
*1: With security*2: CVT*3: Without climate control
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | R TURN SW | Detects R TURN SW signal | With right turn signal switch ON: less than 0.2 VWith right turn signal switch OFF and MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 2 | Not used | ------ | ------ |
| 3 | H/L HI SW | Detects H/L HI SW signal | With combination light switch HI: less than 0.2 VWith combination light switch OFF and MICU is wakeup mode: about battery voltageWith combination light switch OFF and MICU is sleep mode: pulse |
| 4 | H/L OFF SW | Detects H/L OFF SW signal | With combination light switch OFF: less than 0.2 VWith combination light switch ON and MICU is wakeup mode: about battery voltageWith combination light switch ON and MICU is sleep mode: pulse |
| 5 | PARKING LT SW | Detects PARKING LT SW signal | With combination light switch PARKING: less than 0.2 VWith combination light switch OFF and MICU is wakeup mode: about battery voltageWith combination light switch OFF and MICU is sleep mode: pulse |
| 6 | RR WIPER INT SW | Detects RR WIPER INT SW signal | With vehicle in ON mode and rear wiper switch OFF: about battery voltageWith vehicle in ON mode and rear wiper switch INT: less than 0.2 V |
| 7 | RR WASHER SW | Detects RR WASHER SW signal | With rear washer switch ON: less than 0.2 VWith rear washer switch OFF and MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 8 | FR WIPER INT&LO SW | Detects FR WIPER INT&LO SW signal | With front windshield wiper switch INT or LO: less than 0.2 VWith front windshield wiper switch OFF and MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 9 | FR WASHER SW | Detects FR WASHER SW signal | With front windshield washer switch ON: less than 0.2 V With front windshield washer switch OFF and MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 10 | COMBI SW GND (LT) | Ground for combination switch | Less than 0.2 V at all times |
| 11 | H/L ON SW | Detects H/L ON SW signal | With combination light switch ON: less than 0.2 VWith combination light switch OFF and MICU is wakeup mode: about battery voltageWith combination light switch OFF and MICU is sleep mode: pulse |
| 12 | PASSING SW | Detects PASSING SW signal | With combination light switch PASSING: less than 0.2 VWith combination light switch OFF and MICU is wakeup mode: about battery voltageWith combination light switch OFF and MICU is sleep mode: pulse |
| 13* | FR FOG SW | Detects FR FOG SW signal | With fog light switch ON: less than 0.2 VWith fog light switch OFF and MICU is wakeup mode: about battery voltageWith fog light switch OFF and MICU is sleep mode: pulse |
| 14 | L TURN SW | Detects L TURN SW signal | With left turn signal switch ON: less than 0.2 VWith left turn signal switch OFF and MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 15 | FR WIPER MIST SW | Detects FR WIPER MIST SW signal | With front windshield wiper switch MIST: less than 0.2 VWith front windshield wiper switch OFF and MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 16 | FR WIPER HI&LO SW | Detects FR WIPER HI&LO SW signal | With front windshield wiper switch HI or LO: less than 0.2 VWith front windshield wiper switch OFF and MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 17 | RR WIPER SW | Detects RR WIPER SW signal | With rear wiper switch ON: less than 0.2 VWith rear wiper switch OFF and MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 18 | Not used | ------ | ------ |
| 19 | Not used | ------ | ------ |
| 20 | COMBI SW GND (WIP) | Ground for combination switch | Less than 0.2 V at all times |
*: With fog light
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | Not used | ------ | ------ |
| 2 | Not used | ------ | ------ |
| 3 | DR SILCON LOCK | Detects DR SILCON LOCK signal | With driver's door lock knob switch LOCK: less than 0.2 VWith driver's door lock knob switch UNLOCK and MICU is wakeup mode: about battery voltageWith driver's door lock knob switch UNLOCK and MICU is sleep mode: pulse |
| 4*3 | KEY SW | Detects KEY SW signal | With ignition key switch ON: less than 0.2 VWith ignition key switch OFF and MICU is wakeup mode: about battery voltageWith ignition key switch OFF and MICU is sleep mode: pulse |
| 4*4 | KEY SW | Detects KEY SW signal | With vehicle in OFF (LOCK) mode and MICU is wakeup mode: about battery voltageWith vehicle in OFF (LOCK) mode and MICU is sleep mode: pulseWith vehicle in ACC or ON mode: less than 0.2 V |
| 5 | P/W TIMER | Outputs P/W TIMER signal | Without vehicle off operation: about battery voltageWith vehicle off operation: less than 0.2 V |
| 6 | Not used | ------ | ------ |
| 7 | Not used | ------ | ------ |
| 8 | Not used | ------ | ------ |
| 9 | Not used | ------ | ------ |
| 10*1 | DR KEY CYL UNLOCK | Detects DR KEY CYL UNLOCK signal | With driver's door key cylinder switch LOCK: about battery voltageWith driver's door key cylinder switch UNLOCK: less than 0.2 V |
| 11*1 | DR KEY CYL LOCK | Detects DR KEY CYL LOCK signal | With driver's door key cylinder switch UNLOCK: about battery voltageWith driver's door key cylinder switch LOCK: less than 0.2 V |
| 12 | REMOTE SW UNLOCK | Detects REMOTE SW UNLOCK signal | With driver's door lock switch LOCK: about battery voltageWith driver's door lock switch UNLOCK: less than 0.2 V |
| 13 | K LINE | Communication line | ------ |
| 14*2 | KEY SOL | Outputs KEY SOL signal | With vehicle in ACC or ON mode and in P position: about battery voltageIf none of above conditions are met: less than 0.2 V |
| 15 | DR SILCON UNLOCK | Detects DR SILCON UNLOCK signal | With driver's door lock knob switch UNLOCK: less than 0.2 VWith driver's door lock knob switch LOCK and MICU is wakeup mode: about battery voltage |
| 16 | Not used | ------ | ------ |
| 17 | REMOTE SW LOCK | Detects REMOTE SW LOCK signal | With driver's door lock switch UNLOCK: about battery voltageWith driver's door lock switch LOCK: less than 0.2 V |
| 18 | S-NET | Communication line | ------ |
| 19*4 | SMART BUZZER | Outputs SMART BUZZER signal | ------ |
| 20 | Not used | ------ | ------ |
| 21 | Not used | ------ | ------ |
| 22 | Not used | ------ | ------ |
| 23 | GND | Ground for MICU | Less than 0.2 V at all times |
| 24 | INTR LTGHT- | Outputs INTR LIGHT- signal | About 0 V - battery voltage (depending on interior light brightness) |
*1: With security*2: CVT without keyless access system*3: Without keyless access system*4: With keyless access system
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B BACK UP | Power outputs terminal for control units | About battery voltage at all times |
| 2 | IG1 METER | IG1 power source | With vehicle in ON mode: about battery voltage |
| 3 | IG2 A/C | IG2 power source | With vehicle in ON mode: about battery voltage |
| 4 | ACC | ACC power source | With vehicle in ACC mode: about battery voltage |
| 5 | Not used | ------ | ------ |
| 6 | Not used | ------ | ------ |
| 7*1 | R TURN | Outputs R TURN signal | With right turn signal light ON: about battery voltage |
| 8*2 | RR DEF RLY CL- | Detects RR DEF RLY CL- signal | With vehicle in ON mode and rear window defogger switch OFF: about battery voltageWith vehicle in ON mode and rear window defogger switch ON: less than 0.2 V |
| 9 | +B INTR LT | Power source for interior lights | About battery voltage at all times |
| 10 | ILLUMI+ | Power output terminal for interior lights | With parking lights are OFF: less than 0.2 VWith parking lights are ON: about battery voltage |
| 11*1 | L TURN | Outputs L TURN signal | With left turn signal light ON: about battery voltage |
| 12 | GND | Ground for power window relay circuit | Less than 0.2 V at all times |
*1: With mirror turn signal light*2: Without climate control
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B P/W AS | Drives front passenger's power window motor | With MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 2 | R SIDE DOOR LOCK | Drives front passenger's door lock actuator | With front passenger's door lock actuator in locking operation: about battery voltage |
| 3 | FUEL PUMP RLY OUT | Drives fuel pump | With vehicle in ON mode: about battery voltage |
| 4 | IG1 OPTION | IG1 power source | With vehicle in ON mode: about battery voltage |
| 5* | STOP LT | Outputs STOP LT signal | With brake pedal pressed: about battery voltageWith brake pedal released: less than 0.2 V |
| 6 | Not used | ------ | ------ |
| 7 | Not used | ------ | ------ |
| 8 | R SIDE DOOR UNLOCK | Drives front passenger's door lock actuator | With front passenger's door lock actuator in unlocking operation: about battery voltage |
*: With keyless access system
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B P/W DR | Drives driver's power window motor | About battery voltage at all times |
| 2 | B-CAN_L | Communication line | ------ |
| 3 | B-CAN_H | Communication line | ------ |
| 4 | Not used | ------ | ------ |
| 5* | +B SMART | Power source for keyless access system | About battery voltage at all times |
| 6 | L SIDE DOOR LOCK | Drives driver's door lock actuator | With driver's door lock actuator in locking operation: about battery voltage |
| 7 | +B SUNROOF | Power source for moonroof control unit/motor | About battery voltage at all times |
| 8 | +B BACK UP | Power outputs terminal for control units | About battery voltage at all times |
| 9 | L SIDE DOOR UNLOCK | Drives driver's door lock actuator | With driver's door lock actuator in unlocking operation: about battery voltage |
| 10 | IG1 FUEL PUMP | IG1 power source | With vehicle in ON mode: about battery voltage |
*: With keyless access system
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | GND | Ground for MICU | Less than 0.2 V at all times |
| 2 | Not used | ------ | ------ |
| 3*1 | ACS | Detects ACS signal | With vehicle in ON mode and A/C switch ON and heater fan switch ON: less than 0.2 VIf none of above conditions are met: about battery voltage |
| 4 | FR ACC SOCKET | Power source for front accessory power socket | With vehicle in ACC mode: about battery voltage |
| 5 | K LINE | Communication line | ------ |
| 6 | K LINE | Communication line | ------ |
| 7 | Not used | ------ | ------ |
| 8*1 | BLOWER HI | Detects BLOWER HI signal | With vehicle in ON mode: about 0V - battery voltage (depending on heater fan switch position) |
| 9 | +B BACK UP | Power outputs terminal for control units | About battery voltage at all times |
| 10 | Not used | ------ | ------ |
| 11 | Not used | ------ | ------ |
| 12 | Not used | ------ | ------ |
| 13 | Not used | ------ | ------ |
| 14 | IG1 METER | IG1 power source | With vehicle in ON mode: about battery voltage |
| 15 | +B HAZARD | Power source for hazard switch | About battery voltage at all times |
| 16*3 | BACK LT | Detects BACK LT signal | With vehicle in ON mode and reverse position: about battery voltageWith vehicle in ON mode and out of reverse position: less than 0.2 V |
| 16*4 | BACK LT | Detects BACK LT signal | With vehicle in ON mode and R position: about battery voltageWith vehicle in ON mode and out of R position: less than 0.2 V |
| 17 | ILLUMI+ | Power output terminal for interior lights | With parking lights are OFF: less than 0.2 VWith parking lights are ON: about battery voltage |
| 18 | IG1 VSA/ABS | IG1 power source | With vehicle in ON mode: about battery voltage |
| 19*2 | +B RR WIPER | Power source for rear window wiper motor | About battery voltage at all times |
| 20 | IG2 A/C | IG2 power source | With vehicle in ON mode: about battery voltage |
*1: Without climate control*2: With keyless access system*3: M/T*4: CVT
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | IG1 SRS2 | IG1 power source | With vehicle in ON mode: about battery voltage |
| 2 | ILLUMI+ | Power output terminal for interior lights | With parking lights are OFF: less than 0.2 VWith parking lights are ON: about battery voltage |
| 3 | Not used | ------ | ------ |
| 4 | IG1 SRS | IG1 power source | With vehicle in ON mode: about battery voltage |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | Not used | ------ | ------ |
| 2* | IG1-B | IG1 power source | With vehicle in ON mode: about battery voltage |
| 3 | IG2 MAIN | IG2 power source | With vehicle in ON mode: about battery voltage |
| 4 | IG1 MAIN | IG1 power source | With vehicle in ON mode: about battery voltage |
| 5 | ACC MAIN | ACC power source | With vehicle in ACC mode: about battery voltage |
*: With keyless access system
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | BACK LT | Power output terminal for back-up lights | M/T: With vehicle in ON mode and reverse position: about battery voltageCVT: With vehicle in ON mode and R position: about battery voltageIf none of above conditions are met: less than 0.2 V |
| 2*1 | T/GATE LOCK ACT | Drives tailgate release actuator | With tailgate release actuator in open operation: about battery voltage |
| 3 | L SIDE DOOR UNLOCK | Drives left rear door lock actuator | With left rear door lock actuator in unlocking operation: about battery voltage |
| 4 | L TURN | Outputs L TURN signal | With left turn signal light ON: about battery voltage |
| 5 | R TURN | Outputs R TURN signal | With right turn signal light ON: about battery voltage |
| 6 | GND | Ground for MICU | Less than 0.2 V at all times |
| 7 | L SIDE DOOR LOCK | Drives left rear door lock actuator | With left rear door lock actuator in locking operation: about battery voltage |
| 8 | Not used | ------ | ------ |
| 9 | Not used | ------ | ------ |
| 10 | Not used | ------ | ------ |
| 11 | Not used | ------ | ------ |
| 12 | +B H/SEAT | Power source for seat heater | About battery voltage at all times |
| 13 | R SIDE DOOR LOCK | Drives right rear door lock actuator | With right rear door lock actuator in locking operation: about battery voltage |
| 14 | R SIDE DOOR UNLOCK | Drives right rear door lock actuator | With right rear door lock actuator in unlocking operation: about battery voltage |
| 15 | STOP LT | Power output terminal for brake lights | With brake pedal pressed: about battery voltageWith brake pedal released: less than 0.2 V |
| 16*2 | DR DOOR LOCK | Drives driver's door lock actuator | With driver's door lock actuator in locking operation: about battery voltage |
| 17*2 | DR DOOR UNLOCK | Drives driver's door lock actuator | With driver's door lock actuator in unlocking operation: about battery voltage |
| 18 | +B P/W RR L | Drives left rear power window motor | With MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 19 | Not used | ------ | ------ |
| 20 | IG1 RR WIPER | IG1 power source | With vehicle in ON mode: about battery voltage |
| 21 | Not used | ------ | ------ |
| 22 | +B P/W RR R | Drives right rear power window motor | With MICU is wakeup mode: about battery voltageWith MICU is sleep mode: less than 0.2 V at all time |
| 23 | DR DOOR SW | Detects DR DOOR SW signal | With driver's door switch ON: less than 0.2 VWith driver's door switch OFF and MICU is wakeup mode: about battery voltageWith driver's door switch OFF and MICU is sleep mode: pulse |
| 24 | +B INTR LT | Power source for interior lights | About battery voltage at all times |
| 25 | ILLUMI+ | Power output terminal for exterior lights | With parking lights are OFF: less than 0.2 VWith parking lights are ON: about battery voltage |
| 26 | TAIL GATE SW | Detects TAIL GATE SW signal | With tailgate latch switch ON: less than 0.2 VWith tailgate latch switch OFF and MICU is wakeup mode: about battery voltageWith tailgate latch switch OFF and MICU is sleep mode: pulse |
| 27*2 | RR L SILCON UNLOCK | Detects RR L SILCON UNLOCK signal | With left rear door lock knob switch UNLOCK: less than 0.2 VWith left rear door lock knob switch LOCK and MICU is wakeup mode: about battery voltageWith left rear door lock knob switch LOCK and MICU is sleep mode: pulse |
| 28 | Not used | ------ | ------ |
| 29 | Not used | ------ | ------ |
| 30 | Not used | ------ | ------ |
| 31 | Not used | ------ | ------ |
| 32 | Not used | ------ | ------ |
| 33 | Not used | ------ | ------ |
| 34 | AS DOOR SW | Detects AS DOOR SW signal | With front passenger's door switch ON: less than 0.2 VWith front passenger's door switch OFF and MICU is wakeup mode: about battery voltageWith front passenger's door switch OFF and MICU is sleep mode: pulse |
| 35 | RR R ABS SNSR- | RR R ABS SNSR- signal | ------ |
| 36 | RR R ABS SNSR+ | RR R ABS SNSR+ signal | ------ |
| 37 | RR AS DOOR SW | Detects RR AS DOOR SW signal | With right rear door switch ON: less than 0.2 VWith right rear door switch OFF and MICU is wakeup mode: about battery voltageWith right rear door switch OFF and MICU is sleep mode: pulse |
| 38 | GND | Ground for MICU | Less than 0.2 V at all times |
| 39 | RR DR DOOR SW | Detects RR DR DOOR SW signal | With left rear door switch ON: less than 0.2 VWith left rear door switch OFF and MICU is wakeup mode: about battery voltageWith left rear door switch OFF and MICU is sleep mode: pulse |
| 40 | RR WIPER MTR | Outputs RR WIPER MTR signal | With vehicle in ON mode and rear wiper at auto-stop position: about battery voltageIf none of above conditions are met: less than 0.2 V |
| 41 | CARGO LT | Outputs CARGO LT signal | With cargo light OFF: about battery voltageWith cargo light ON: less than 0.2 V |
| 42 | Not used | ------ | ------ |
| 43 | Not used | ------ | ------ |
| 44 | Not used | ------ | ------ |
| 45 | Not used | ------ | ------ |
| 46 | Not used | ------ | ------ |
| 47 | Not used | ------ | ------ |
| 48 | IG1 SRS2 | IG1 power source | With vehicle in ON mode: about battery voltage |
| 49 | RR L ABS SNSR- | RR L ABS SNSR- signal | ------ |
| 50 | RR L ABS SNSR+ | RR L ABS SNSR+ signal | ------ |
| 51 | Not used | ------ | ------ |
| 52*3 | RR R SILCON UNLOCK | Detects RR R SILCON UNLOCK signal | With right rear door lock knob switch UNLOCK: less than 0.2 VWith right rear door lock knob switch LOCK and MICU is wakeup mode: about battery voltageWith right rear door lock knob switch LOCK and MICU is sleep mode: pulse |
*1: With keyless access system*2: With selectable unlock*3: With security
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1*2 | ST CUT RLY COM | Power output terminal for starter cut relay | With vehicle in START mode: about battery voltage |
| 2 | +B F/BOX MAIN3 | Power source for under-dash fuse/relay box | About battery voltage at all times |
| 3 | Not used | ------ | ------ |
| 4 | Not used | ------ | ------ |
| 5 | IG1 FUEL PUMP | IG1 power source | With vehicle in ON mode: about battery voltage |
| 6 | L TURN | Outputs L TURN signal | With left turn signal light ON: about battery voltage |
| 7*1 | ACC KEYLOCK | ACC power source | With vehicle in ACC or ON mode: about battery voltage |
| 8 | FI MAIN RLY OUT | Power output terminal for PGM-FI system | ------ |
| 9 | IG1 ACG | IG1 power source | With vehicle in ON mode: about battery voltage |
| 10*3 | IG1 ST CUT RLY | IG1 power source | With vehicle in ON mode: about battery voltage |
| 11 | STOP LT | Detects STOP LT signal | With brake pedal pressed: about battery voltageWith brake pedal released: less than 0.2 V |
| 12 | Not used | ------ | ------ |
| 13 | +B HAZARD | Power source for IPD | About battery voltage at all times |
| 14 | Not used | ------ | ------ |
| 15 | +B BACK UP | Power source for MICU and other units | About battery voltage at all times |
| 16 | Not used | ------ | ------ |
| 17 | L H/L HI | Outputs L H/L HI signal | With combination light switch OFF: less than 0.2 VWith combination light switch HI: about battery voltage |
| 18*4 | IG1 MISS SOL | IG1 power source | With vehicle in ON mode: about battery voltage |
| 19 | HORN RLY OUT | Power output terminal for horn | With horn switch OFF: less than 0.2 VWith horn switch ON: about battery voltage |
| 20 | +B HORN | Power source for horns | About battery voltage at all times |
| 21 | S-NET | Communication line | ------ |
| 22*4 | ATP-P | Detects ATP-P signal | With out of P position and MICU is wakeup mode: about battery voltageWith P position: less than 0.2 VWith out of P position and MICU is sleep mode: pulse |
| 23*4 | ATP-R | Detects ATP-R signal | With vehicle in ON mode and R position: less than 0.2 VIf none of above conditions are met: about battery voltage |
| 24 | WIPER HI/LO RLY CL- | Outputs WIPER HI/LO RLY CL- signal | With vehicle in ON mode and windshield wiper LO speed: less than 0.2 VWith vehicle in ON mode and windshield wiper HI speed: about battery voltage |
| 25 | IG1 METER | IG1 power source | With vehicle in ON mode: about battery voltage |
| 26 | +B INTR LT | Power source for interior lights | About battery voltage at all times |
| 27 | Not used | ------ | ------ |
| 28 | Not used | ------ | ------ |
| 29 | FR WIPER INT RLY CL- | Outputs FR WIPER INT RLY CL- signal | With vehicle in ON mode and windshield wiper operation: less than 0.2 VWith vehicle in ON mode and windshield wiper stopping: about battery voltage |
| 30 | Not used | ------ | ------ |
| 31 | Not used | ------ | ------ |
| 32 | FUEL PUMP RLY CL- | FUEL PUMP RLY CL- signal | ------ |
| 33*5 | BACK LT | Detects BACK LT signal | With vehicle in ON mode and reverse position: bout battery voltageWith vehicle in ON mode and out of reverse position: less than 0.2 V |
| 34 | ILLUMI+ | Power output terminal for exterior lights | With parking lights are OFF: less than 0.2 VWith parking lights are ON: about battery voltage |
| 35*6 | HOOD SW | Detects HOOD SW signal | With security hood switch ON : less than 0.2 VWith security hood switch OFF and MICU is wakeup mode: about battery voltageWith security hood switch OFF and MICU is sleep mode: pulse |
| 36 | IG2 A/C | IG2 power source | With vehicle in ON mode: about battery voltage |
| 37*7 | FR FOG LT RLY CL- | Outputs FR FOG LT RLY CL- signal | With fog light switch ON: less than 0.2 VWith fog light switch OFF: about battery voltage |
| 38 | H/L LO RLY CL- | Outputs H/L LO RLY CL- signal | With headlight (low) is ON: less than 0.2 VWith headlight (low) is OFF: about battery voltage |
| 39 | FR WIPER AS | Detects FR WIPER AS signal | With windshield wiper at out of auto-stop position and MICU is wakeup mode: pulseIf none of above conditions are met: less than 0.2 V |
| 40 | Not used | ------ | ------ |
*1: CVT without keyless access system*2: Without keyless access system *3: With keyless access system*4: CVT*5: M/T*6: With security*7: With fog light
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B F/BOX MAIN | Power source for under-dash fuse/relay box | About battery voltage at all times |
| 2 | +B F/BOX MAIN2 | Power source for under-dash fuse/relay box | About battery voltage at all times |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | ILLUMI+ | Power output terminal for exterior lights | With parking lights are OFF: less than 0.2 VWith parking lights are ON: about battery voltage |
| 2 | R H/L HI | Outputs R H/L HI signal | With combination light switch OFF: less than 0.2 VWith combination light switch HI: about battery voltage |
| 3 | Not used | ------ | ------ |
| 4 | FR WASHER MTR | Drives windshield/rear window washer motor | With vehicle in ON mode and front washer switch ON: about battery voltageIf none of above conditions are met: less than 0.2 V |
| 5 | Not used | ------ | ------ |
| 6 | R TURN | Outputs R TURN signal | With right turn signal light ON: about battery voltage |
| 7 | Not used | ------ | ------ |
| 8 | RR WASHER MTR | Drives windshield/rear window washer motor | With vehicle in ON mode and rear washer switch ON: about battery voltageIf none of above conditions are met: less than 0.2 V |
| 9 | IG1 VSA/ABS | IG1 power source | With vehicle in ON mode: about battery voltage |
| 10 | Not used | ------ | ------ |
| 11 | Not used | ------ | ------ |
| 12 | RR R ABS SNSR- | RR R ABS SNSR- signal | ------ |
| 13* | SCTY HORN RLY CL- | Outputs SCTY HORN RLY CL- signal | With security horn ON: less than 0.2 VWith security horn OFF: about battery voltage |
| 14 | Not used | ------ | ------ |
| 15 | RR R ABS SNSR+ | RR R ABS SNSR+ signal | ------ |
| 16 | PARKING LT RLY CL- | Power output terminal for taillight relay | With parking lights are OFF: less than 0.2 VWith parking lights are ON: about battery voltage |
| 17 | RR L ABS SNSR+ | RR L ABS SNSR+ signal | ------ |
| 18 | RR L ABS SNSR- | RR L ABS SNSR- signal | ------ |
*: With security horn
