EPS Control Unit Connector for Inputs and Outputs (KA/KC models)

Connector Index

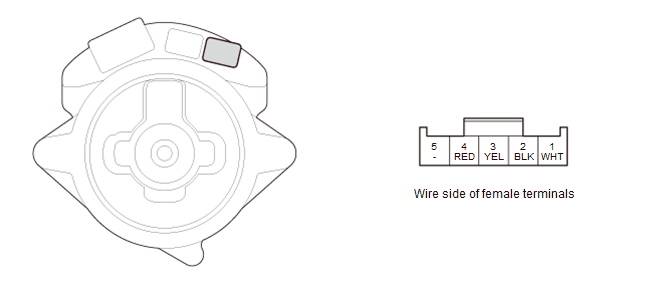

EPS Control Unit Connector A (5P)

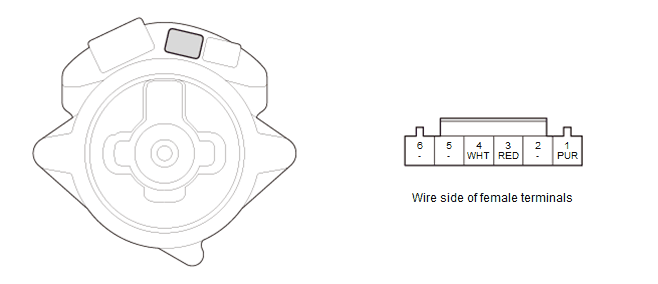

EPS Control Unit Connector B (6P)

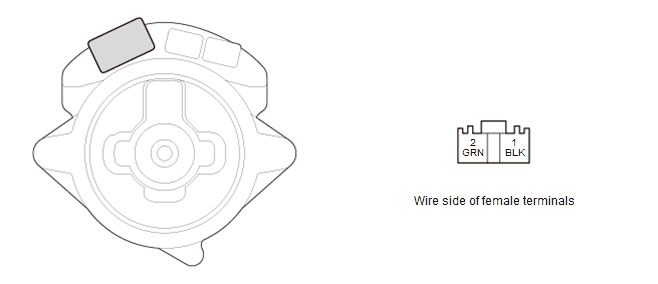

EPS Control Unit Connector C (2P)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal sign	Description
1	TSM	Detect the torque sensor signal
2	TSE	Ground for the torque sensor
3	TSS	Detect the torque sensor signal
4	TSV	Power source for the torque sensor
5	Not used	- - -

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal sign	Description
1	IG1 VSA/ABS	Power source for activating the system

Terminal number	Terminal sign	Description
2	Not used	- - -
3	F-CAN_L	F-CAN communication circuit
4	F-CAN_H	F-CAN communication circuit
5	Not used	- - -
6	Not used	- - -

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal sign	Description
1	GND	Ground for the EPS control unit
2	+B EPS	Power source for the actuator EPS motor
