EPS Control Unit Connector for Inputs and Outputs
| Connector Index |

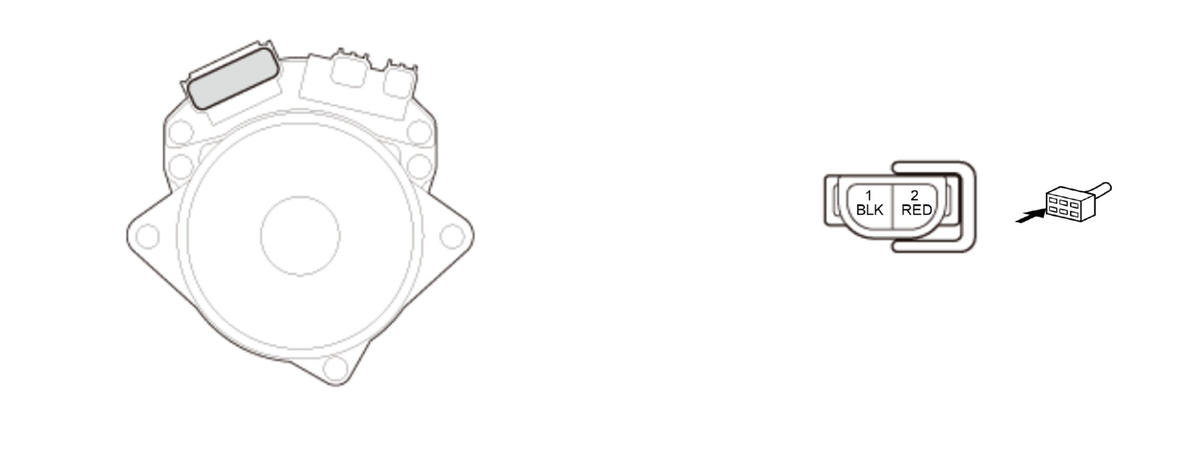

| EPS Control Unit Connector A (2P) |

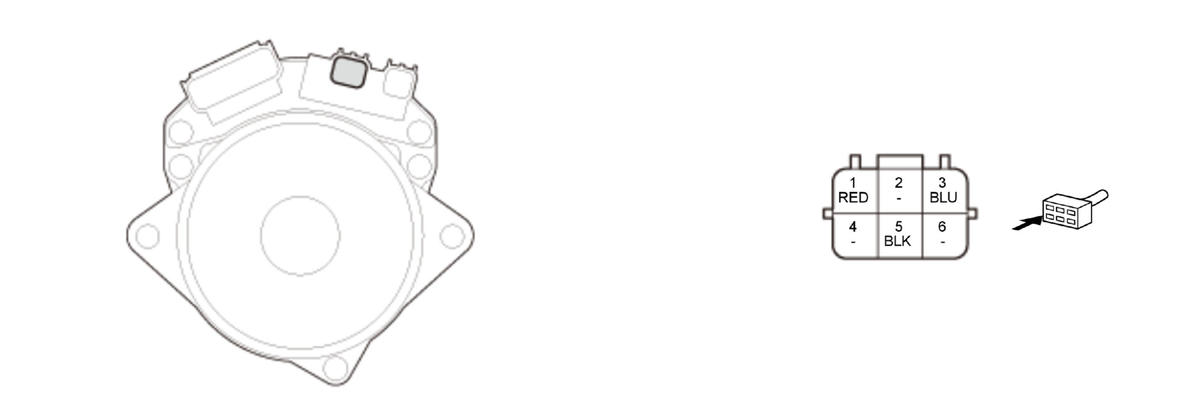

| EPS Control Unit Connector B (6P) |

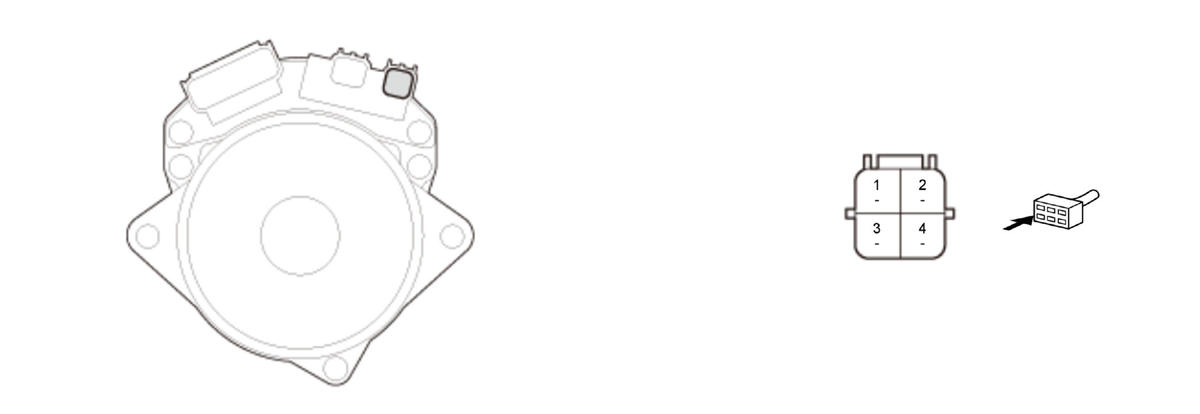

| EPS Control Unit Connector C (4P) |
EPS Control Unit Inputs and Outputs for Connector A (2P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal sign |
Description |
| 1 |
GND |
Ground for the EPS control unit |
| 2 |
+B EPS |
Power source for the actuator EPS motor |
EPS Control Unit Inputs and Outputs for Connector B (6P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal sign |
Description |
| 1 |
F-CAN B_L |
F-CAN communication circuit |
| 2 |
Not used |
--- |
| 3 |
F-CAN B_H |
F-CAN communication circuit |
| 4 |
Not used |
--- |
| 5 |
IG |
Power source for activating the system |
| 6 |
Not used |
--- |
EPS Control Unit Inputs and Outputs for Connector C (4P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Terminal number |
Terminal sign |
Description |
| 1 |
T/S GND |
Ground for the torque sensor |
| 2 |
T/S VDD |
Power source for torque sensor |
| 3 |
TSM |
Detects torque sensor main signal |
| 4 |
TSS |
Detects torque sensor sub signal |
