DTC P0A2F: General Description

Courtesy of HONDA, U.S.A., INC.

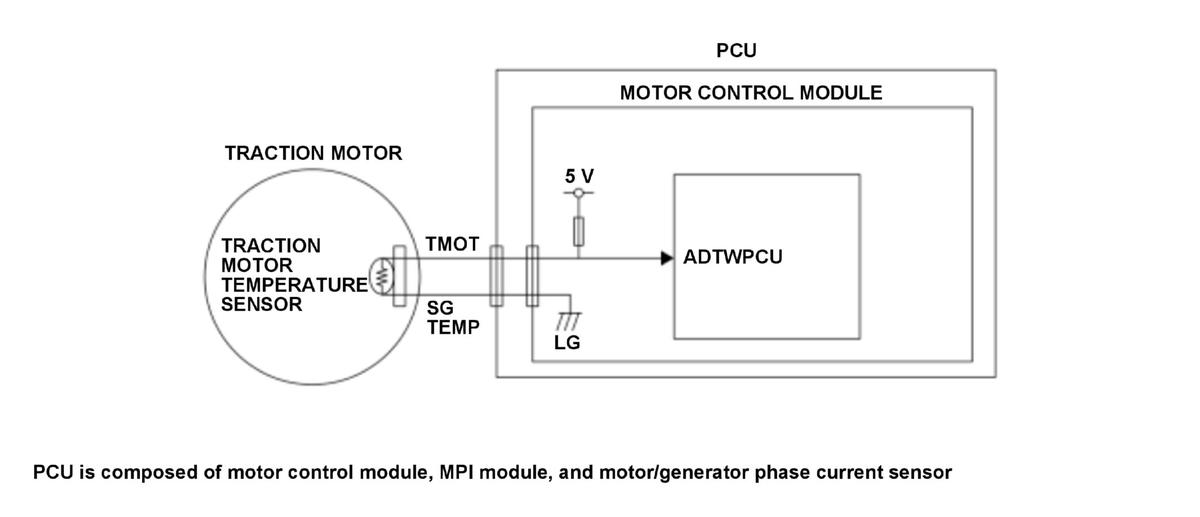

The traction motor is cooled by an automatic transmission fluid (ATF)-based oil cooling system and the motor control module obtains traction motor temperature signal to monitor whether the temperature is normal. The motor control module detects a malfunction and stores a DTC when the traction motor temperature is abnormally high for the prescribed time or more.
