DTC P1D13: General Description

Courtesy of HONDA, U.S.A., INC.

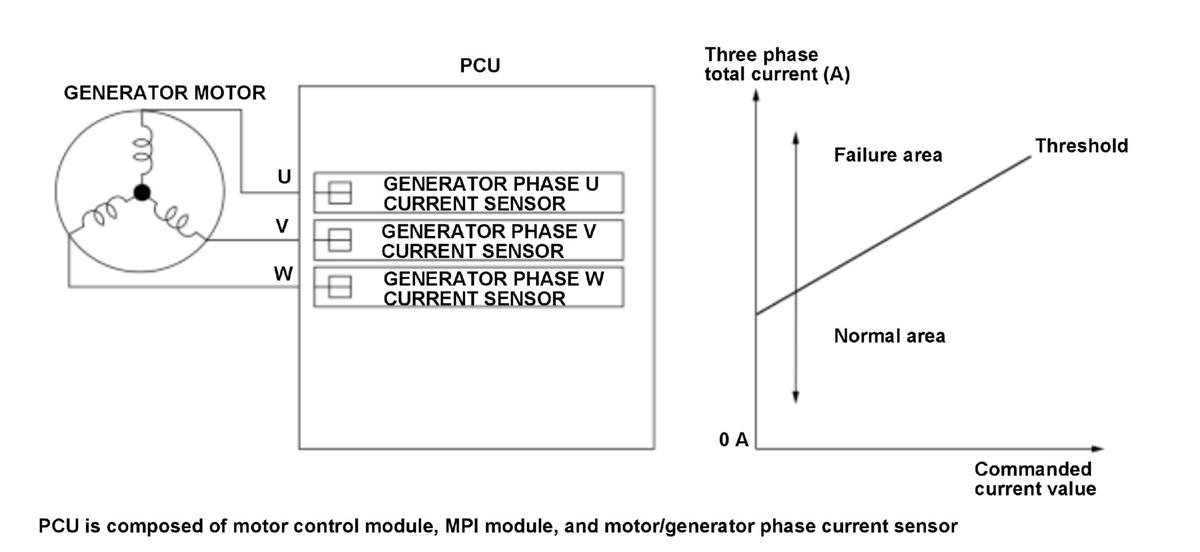

The power control unit (PCU) controls the motor output based on the generator phase current sensor signals. If the sum of three generator phase current sensor current is out of a specified range for a specified time, the motor control module in the PCU detects a malfunction and stores a DTC.
