VSA Modulator-Control Unit Removal and Installation: Installation

NOTE:

How to read the torque specifications .
Review the Service Precautions before doing repairs or service .
Do not damage or drop the VSA modulator-control unit as it is sensitive.
Do not use power tools when installing the VSA modulator-control unit.
When replacing the VSA modulator-control unit, do the keyless access system registration.

VSA Modulator-Control Unit Bracket - Install

Courtesy of HONDA, U.S.A., INC.

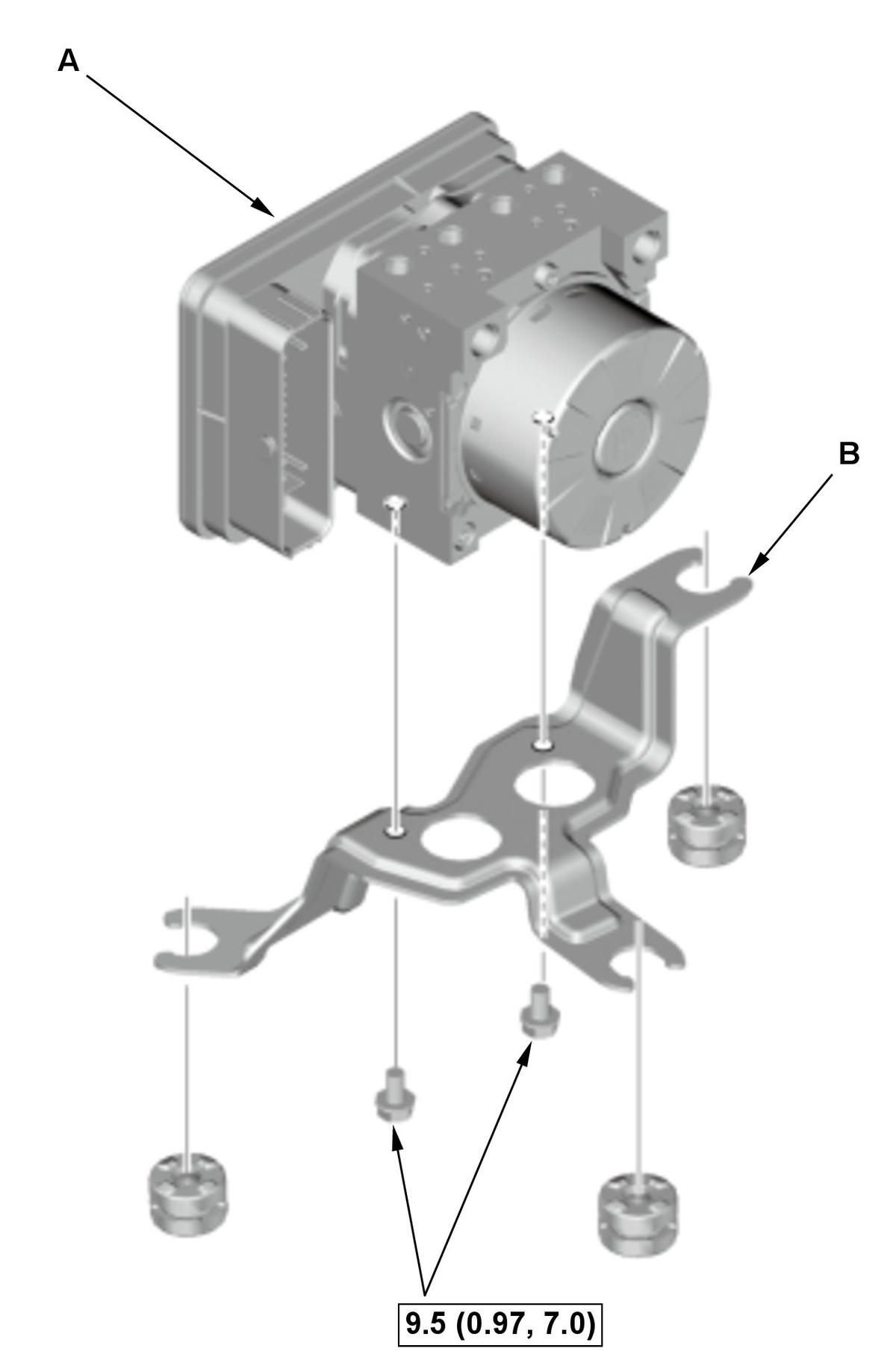

1. Install the VSA modulator-control unit (A) to the modulator bracket (B).

VSA Modulator-Control Unit - Install

Courtesy of HONDA, U.S.A., INC.

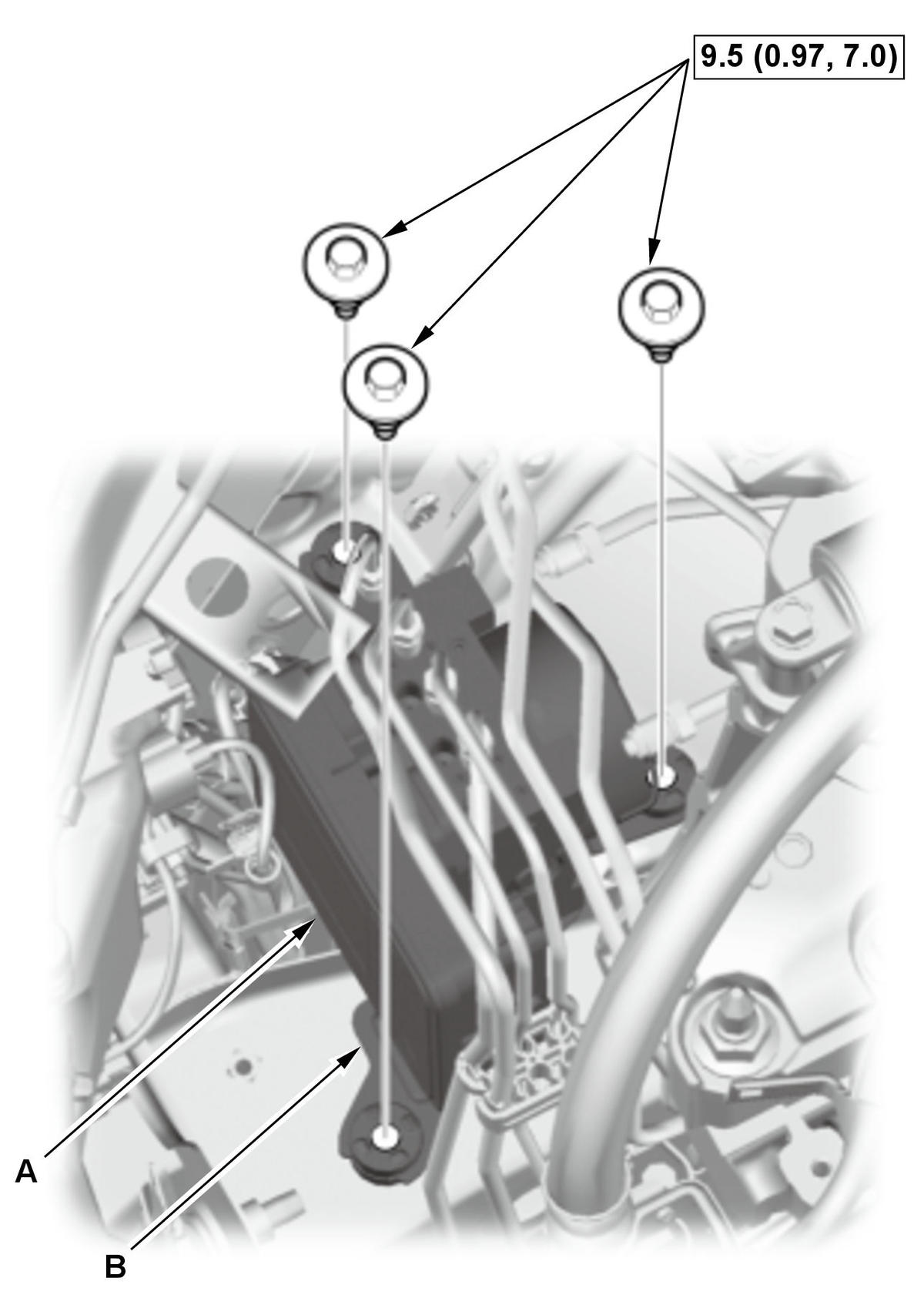

1. Install the VSA modulator-control unit (A) with the bracket (B).

Courtesy of HONDA, U.S.A., INC.

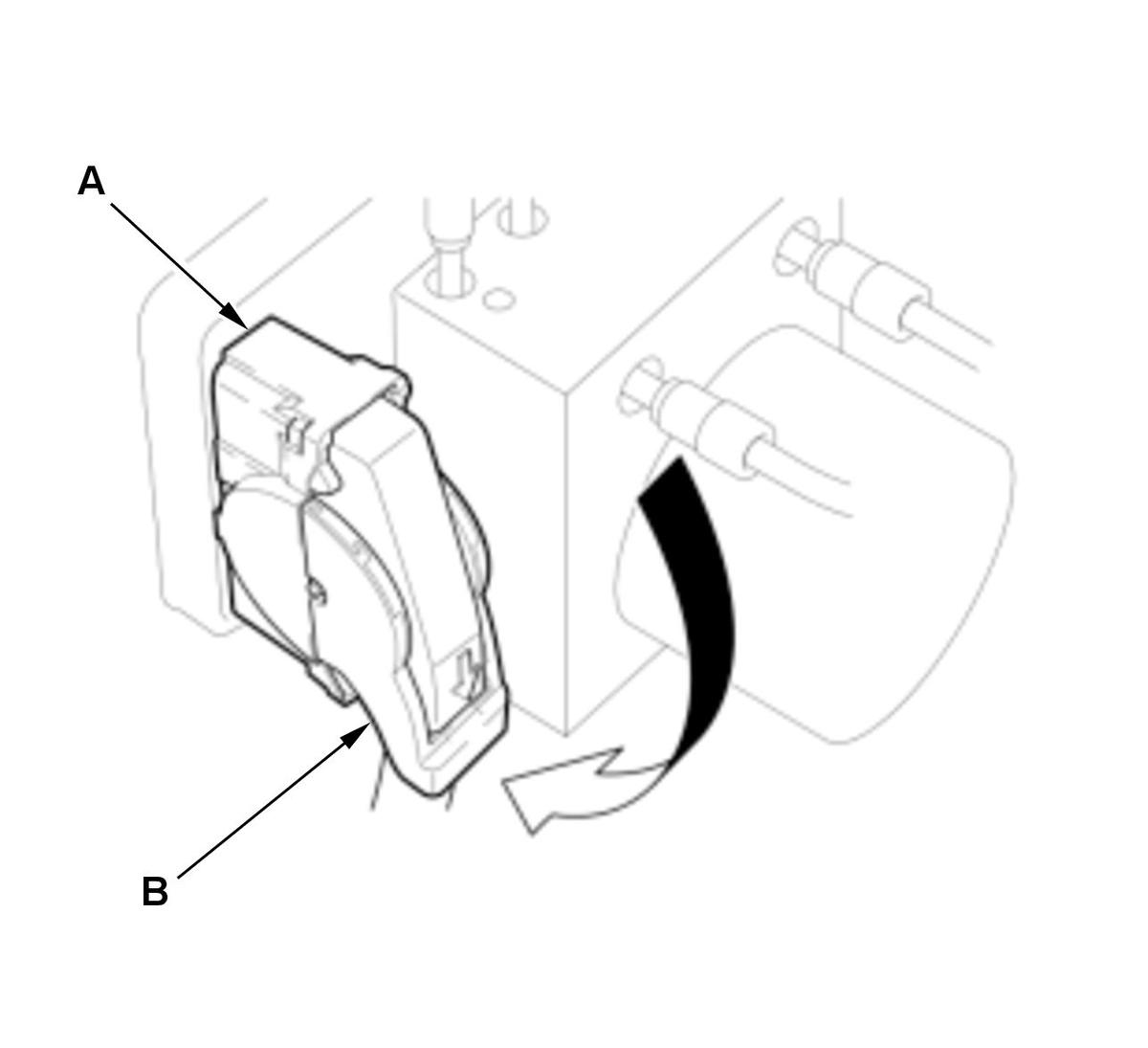

2. Align the connecting surface of the VSA modulator-control unit connector (A).

3. Pull down the lever (B) of the VSA modulator-control unit connector, then confirm the connector is fully seated.

Courtesy of HONDA, U.S.A., INC.

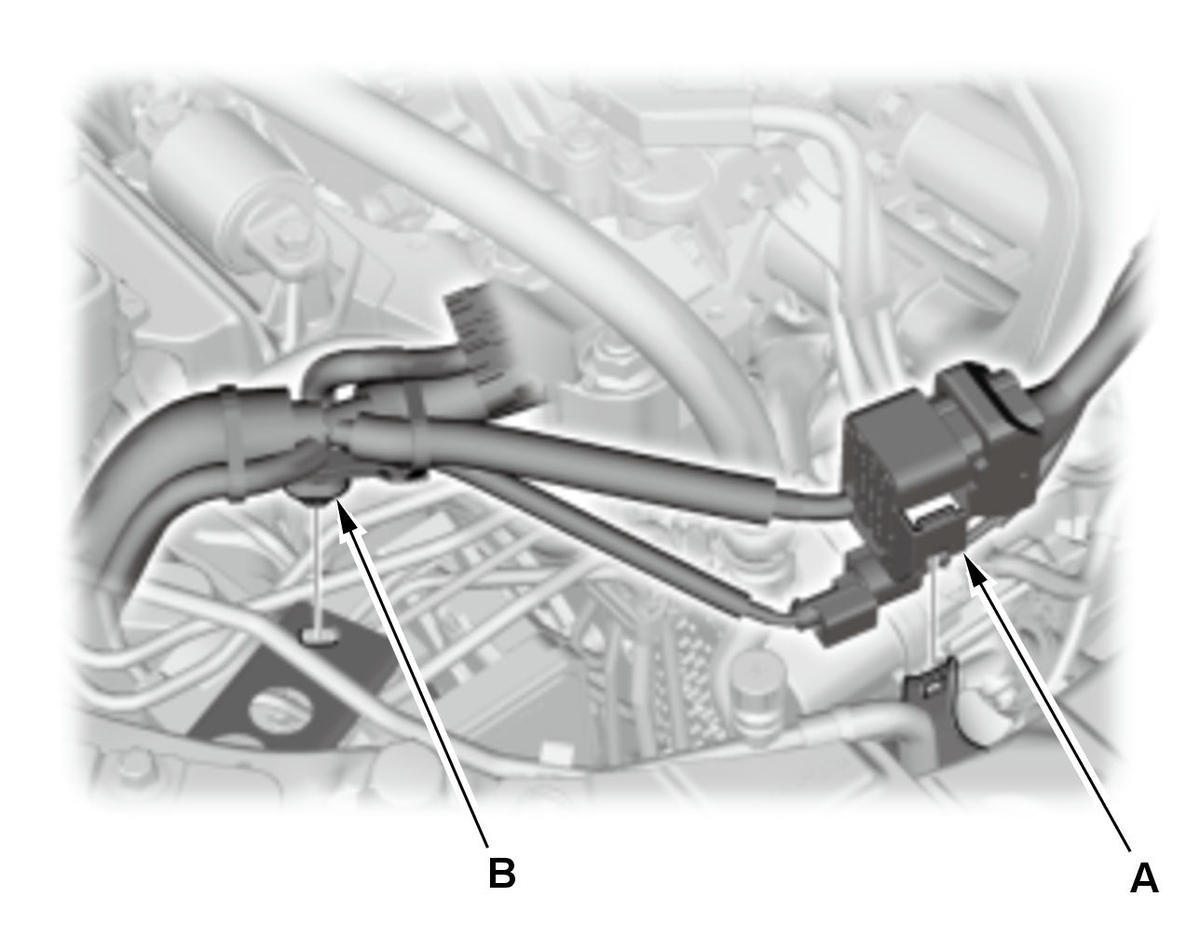

4. Install the harness clamp (A), and the harness clip (B).

Courtesy of HONDA, U.S.A., INC.

5. Connect the brake lines.

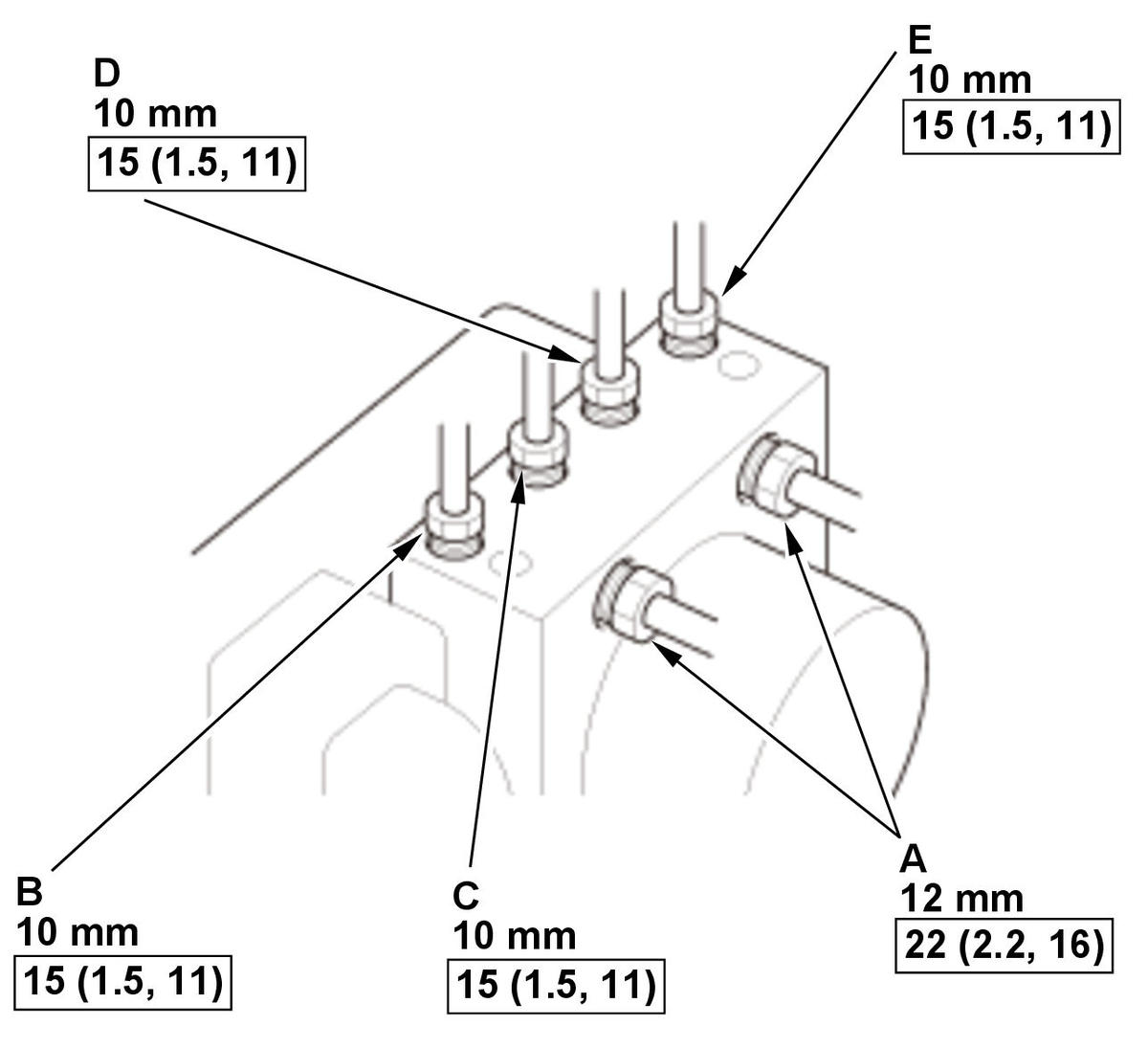

NOTE: Brake lines are connected to the pedal feel simulator (A), the right-rear (B), the left-front (C), the right-front (D), and the left-rear (E) brake systems.

PCM - Install
Ground Cable - Connect

Courtesy of HONDA, U.S.A., INC.

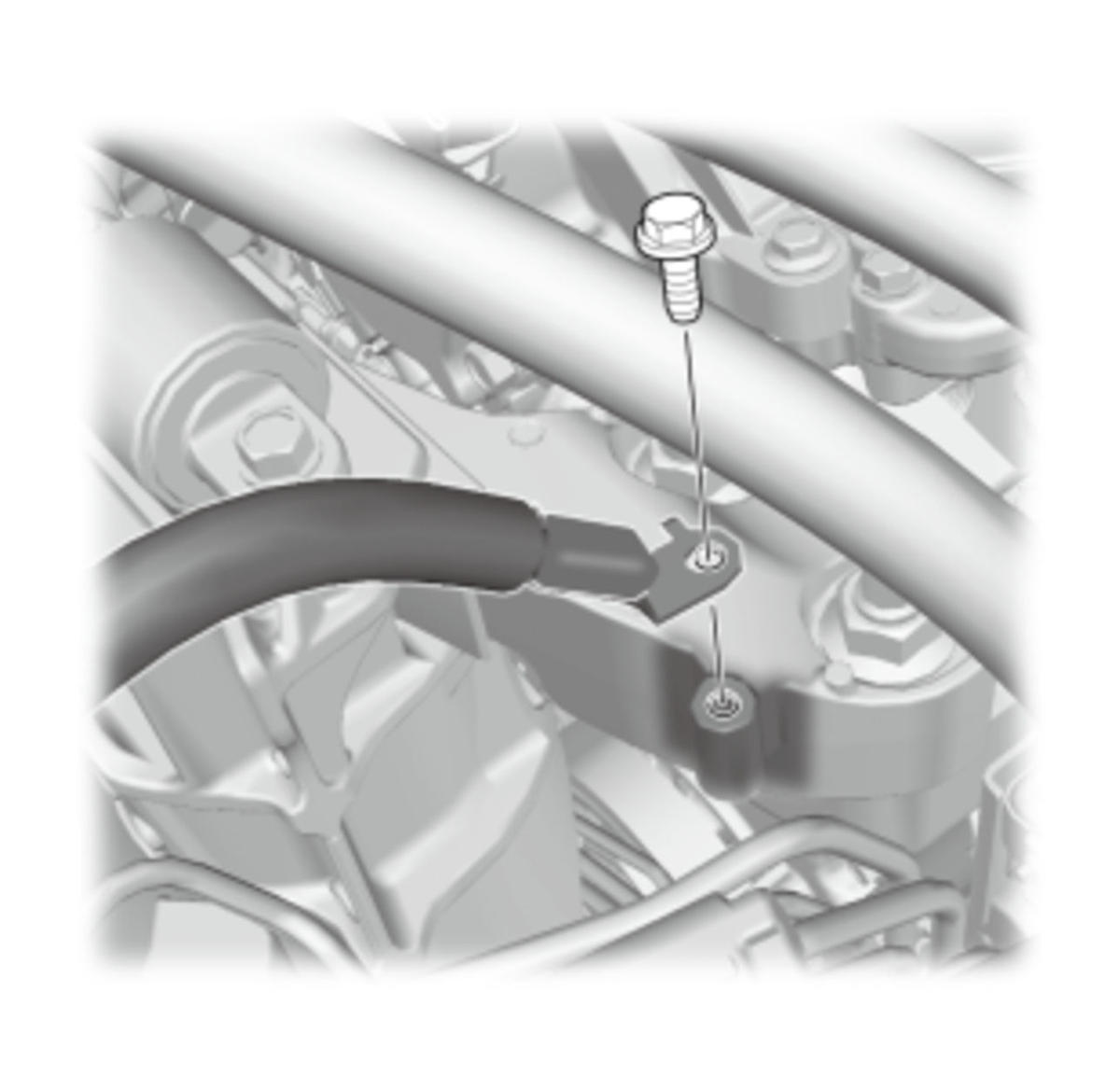

1. Connect the ground cable .
Brake System - Bleed
Keyless Access System - Register

VSA Modulator-Control Unit Software - Check

1. Make sure the VSA modulator-control unit has the latest software. If it does not have the latest, update the software in the VSA modulator-control unit .

VSA Modulator-Control Unit After Install - Check

1. Turn the vehicle to the ON mode.

2. Apply and release the parking brake 2 times, then make sure that the brake system indicator (red) goes OFF.

NOTE: If the brake system indicator (red) does not go OFF, check for poor connection at the VSA modulator-control unit connector.

VSA Sensor Neutral Position - Memorize
TPMS - Calibrate
