Torque Specifications

NOTE:

Refer to the appropriate portion of the manual for the precautions and complete procedures.
Refer to the appropriate portion of the manual for the bolts/nuts not indicated here.
- -
  1: Parts to be tightened in a particular order.
- -
  2: Follow the appropriate manual procedures closely for torque, sequence, and special steps.
Power tools must be used appropriately.
- -
  Follow instructions and precautions carefully per the tool's manufacturer.
- -
  Do not use power tools for tightening. Only use them during removals of fasteners.
When using some special tools or crowfoot-type wrenches, the torque value changes due to the added leverage. The actual torque applied will be greater than the torque reading shown.
- -
  The torque specification given is the actual torque, not the reading on the torque wrench.
- -

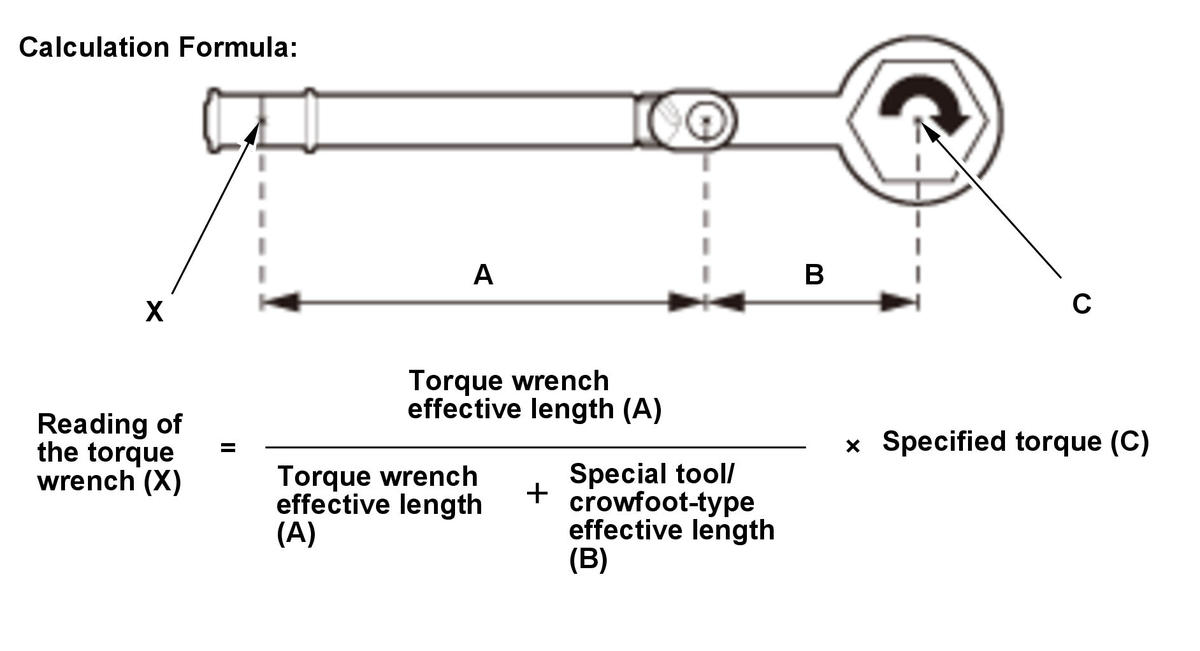

  To compensate for this additional leverage, use the formula below to calculate the torque value reading on the torque wrench.
- -
  Always use the special tool or crowfoot-type wrench in a straight line with the torque wrench, or you will apply improper torque.

Courtesy of HONDA, U.S.A., INC.

Engine Electrical

Location	Item		Remark	Torque
Ignition system	Spark plugs			22 N.m (2.2 kgf.m, 16 lbf.ft)

Engine Mechanical

Location	Item		Remark	Torque
Engine assembly	Side engine mount bolts		Use new bolts	49 N.m (5.0 kgf.m, 36 lbf.ft)
	Side engine mount nuts		Use new nut	93 N.m (9.5 kgf.m, 69 lbf.ft)
	Side engine mount bracket bolts		Use new bolts	54 N.m (5.5 kgf.m, 40 lbf.ft)
	Transmission mount bolt (12 mm)		Use new bolt	54 N.m (5.5 kgf.m, 40 lbf.ft)
	Transmission mount bolts (14 mm)		Use new bolts	74 N.m (7.5 kgf.m, 55 lbf.ft)
	Transmission mount nuts		Use new nuts	54 N.m (5.5 kgf.m, 40 lbf.ft)
	Torque rod bolt (to the bracket)		Use new bolt	83 N.m (8.5 kgf.m, 61 lbf.ft)
	Torque rod bolt (to the subframe)		Use new bolt	95 N.m (9.7 kgf.m, 70 lbf.ft)
	Torque rod bracket bolts		Use new bolts	50 N.m (5.1 kgf.m, 37 lbf.ft)
Engine lubrication	Oil pressure switch		Use new washer	22 N.m (2.2 kgf.m, 16 lbf.ft)
	Oil pan drain bolt		Use new washer	40 N.m (4.1 kgf.m, 30 lbf.ft)
	Oil filter			12 N.m (1.2 kgf.m, 9 lbf.ft)
Intake manifold and exhaust system	Intake manifold bolts *2			24 N.m (2.4 kgf.m, 18 lbf.ft)
	Intake manifold nuts *2			24 N.m (2.4 kgf.m, 18 lbf.ft)
	Exhaust pipe self-locking nuts	TWC side	Use new gasket	33 N.m (3.4 kgf.m, 24 lbf.ft)
	Exhaust pipe flexible joint bolts	Muffler side		22 N.m (2.2 kgf.m, 16 lbf.ft)

Engine Cooling

Location	Item	Torque
Cooling system	Water passage bolts	24 N.m (2.4 kgf.m, 18 lbf.ft)
	Water passage nuts	24 N.m (2.4 kgf.m, 18 lbf.ft)
	Thermostat housing bolts	10 N.m (1.0 kgf.m, 7 lbf.ft)

Fuel Emissions

Location	Item	Remark	Torque
Fuel and emissions	Accelerator pedal module		13 N.m (1.3 kgf.m, 10 lbf.ft)
	A/F sensor		45 N.m (4.6 kgf.m, 33 lbf.ft)
	ECT Sensor 1	Use new O-ring	12 N.m (1.2 kgf.m, 9 lbf.ft)
	ECT Sensor 2	Use new O-ring	12 N.m (1.2 kgf.m, 9 lbf.ft)
	EGR cooler bolts/nut*2	Use new gasket	24 N.m (2.4 kgf.m, 18 lbf.ft)
	EGR pipe bolts/nuts *2	Use new gasket	24 N.m (2.4 kgf.m, 18 lbf.ft)
	EGR passage bolts/nuts	Use new gasket	24 N.m (2.4 kgf.m, 18 lbf.ft)
	EGR valve nuts	Use new gasket	24 N.m (2.4 kgf.m, 18 lbf.ft)
	Fuel tank unit bolts *2		9.4 N.m (0.96 kgf.m, 6.9 lbf.ft)
	Fuel tank bolts		31 N.m (3.2 kgf.m, 23 lbf.ft)
	Knock sensor bolt		22 N.m (2.2 kgf.m, 16 lbf.ft)
	PCV valve	Use new O-rings	45 N.m (4.6 kgf.m, 33 lbf.ft)
	Rocker arm oil pressure sensor	Use new O-rings	22 N.m (2.2 kgf.m, 16 lbf.ft)
	Rocker arm oil pressure switch	Use new O-rings	22 N.m (2.2 kgf.m, 16 lbf.ft)
	Secondary HO2S		45 N.m (4.6 kgf.m, 33 lbf.ft)
	Throttle body bolts*2	Use new gasket	12 N.m (1.2 kgf.m, 9 lbf.ft)
	Under floor three way converter bolts	Use new gasket	22 N.m (2.2 kgf.m, 16 lbf.ft)
	Electric VTC motor	Use new O-rings	24 N.m (2.4 kgf.m, 18 lbf.ft)
	Warm up three way catalytic converter bracket bolts *2		24 N.m (2.4kgf.m, 18 lbf.ft)
	Warm up three way catalytic converter lower bolts	Use new gasket	32 N.m (3.3 kgf.m, 24 lbf.ft)
	Warm up three way catalytic converter upper nuts	Use new gasket	32 N.m (3.3 kgf.m, 24 lbf.ft)

Gear

Location	Item		Remark	Torque
Gear	ATF drain plug		Use new sealing washer	49 N.m (5.0 kgf.m, 36 lbf.ft)
	ATF filler plug		Use new sealing washer	44 N.m (4.5 kgf.m, 32 lbf.ft)
	Line pressure inspection port sealing bolt		Use new sealing washer	20 N.m (2.0 kgf.m, 15 lbf.ft)
	Transmission fluid pressure sensor		Use new sealing washer	20 N.m (2.0 kgf.m, 15 lbf.ft)
	Drive plate bolts *2			74 N.m (7.5 kgf.m, 55 lbf.ft)
	Upper transmission mounting bolts			64 N.m (6.5 kgf.m, 47 lbf.ft)
	Lower transmission mounting bolt	From transmission side		64 N.m (6.5 kgf.m, 47 lbf.ft)
	Lower transmission mounting bolt	From engine side		65 N.m (6.6 kgf.m, 48 lbf.ft)
	Park pawl actuator bolts			27 N.m (2.8 kgf.m, 20 lbf.ft)

Driveline/Axle

Location	Item	Remark	Torque
Driveline/axle	Driveshaft spindle nut (26 mm)	Use oil on the seating surface Use new nut	328 N.m (33.4 kgf.m, 242 lbf.ft)

Steering

Location	Item	Remark	Torque
Steering	Steering wheel bolt	Use new bolt	49 N.m (5.0 kgf.m, 36 lbf.ft)
	Steering joint bolt		29 N.m (3.0 kgf.m, 21 lbf.ft)
	Steering column nuts *1		22 N.m (2.2 kgf.m, 16 lbf.ft)
	Steering column self-locking nuts *1	Use new nuts	22 N.m (2.2 kgf.m, 16 lbf.ft)
	Steering gearbox bolts *1	Use new bolts	71 N.m (7.2 kgf.m, 52 lbf.ft)
	Steering gearbox stiffener bolts *1	Use new bolts	44 N.m (4.5 kgf.m, 32 lbf.ft)
	Tie-rod end ball joint nuts		54 N.m (5.5 kgf.m, 40 lbf.ft)
	Tie-rod end locknuts		44 N.m (4.5 kgf.m, 32 lbf.ft)

Suspension

Location	Item	Remark	Torque
Front suspension	Wheel nuts		108 N.m (11.0 kgf.m, 80 lbf.ft)
	Knuckle damper pinch bolts		74 N.m (7.5 kgf.m, 55 lbf.ft)
	Lower arm ball joint castle nut (to knuckle)	Use new nut	78-88 N.m (8.0-9.0 kgf.m, 58-65 lbf.ft)
	Lower arm nuts (to lower ball joint)*1	Use new nuts	55 N.m (5.6 kgf.m, 41 lbf.ft)
	Lower arm bolt (front side)	Use new bolt	160 N.m (16.3 kgf.m, 118 lbf.ft)
	Lower arm bolts (rear side)	Use new bolts	84 N.m (8.6 kgf.m, 62 lbf.ft)
	Stabilizer bar bushing holders flange bolts *1	Use new bolts	30 N.m (3.1 kgf.m, 22 lbf.ft)
	Stabilizer link flange nut (to damper)	Use new nut	67 N.m (6.8 kgf.m, 49 lbf.ft)
	Stabilizer link flange nut (to stabilizer bar)	Use new nut	46 N.m (4.7 kgf.m, 34 lbf.ft)
	Damper nuts (to body)	Use new nuts	64 N.m (6.5 kgf.m, 47 lbf.ft)
	Damper self-locking nut	Use new nut	60 N.m (6.1 kgf.m, 44 lbf.ft)
Rear suspension	Wheel nuts		108 N.m (11.0 kgf.m, 80 lbf.ft)
	Upper arm A bolt (to subframe)	Use new bolt/nut	60 N.m (6.1 kgf.m, 44 lbf.ft)
	Upper arm A bolt (to knuckle)	Use new bolt/nut	60 N.m (6.1 kgf.m, 44 lbf.ft)
	Upper arm B bolt (to subframe)	Use new bolt/nut	60 N.m (6.1 kgf.m, 44 lbf.ft)
	Upper arm B bolt (to knuckle)	Use new bolt/nut	60 N.m (6.1 kgf.m, 44 lbf.ft)
	Lower arm bolt (to subframe)	Use new bolt/nut	123 N.m (12.5 kgf.m, 91 lbf.ft)
	Lower arm bolt (to knuckle)	Use new bolt/nut	95 N.m (9.7 kgf.m, 70 lbf.ft)
	Knuckle bracket bolts	Use new bolts	23 N.m (2.3 kgf.m, 17 lbf.ft)
	Control arm adjusting bolt/nut	Use new bolt/nut	52 N.m (5.3 kgf.m, 38 lbf.ft)
	Control arm self-locking nut	Use new nut	60 N.m (6.1 kgf.m, 44 lbf.ft)
	Trailing arm bolt/nut (to knuckle)	Use new bolt/nut	60 N.m (6.1 kgf.m, 44 lbf.ft)
	Trailing arm bolts (to body)	Use new bolts	60 N.m (6.1 kgf.m, 44 lbf.ft)
	Stabilizer bar bushing holders flange bolts	Use new bolts	15 N.m (1.5 kgf.m, 11 lbf.ft)
	Stabilizer link flange nut (to stabilizer bar)	Use new nut	46 N.m (4.7 kgf.m, 34 lbf.ft)
	Stabilizer link flange nut (to knuckle)	Use new nut	47 N.m (4.8 kgf.m, 35 lbf.ft)
	Damper nut (to knuckle)	Use new nut	64 N.m (6.5 kgf.m, 47 lbf.ft)
	Damper nuts (to body)	Use new nuts	51 N.m (5.2 kgf.m, 38 lbf.ft)
	Damper self-locking nut	Use new nut	30 N.m (3.1 kgf.m, 22 lbf.ft)

Brakes

Location	Item	Remark	Torque
Conventional brake	Front brake caliper bracket bolts		137 N.m (14.0 kgf.m, 101 lbf.ft)
	Front brake caliper bolts		50 N.m (5.1 kgf.m, 37 lbf.ft)
	Front brake hose banjo bolt	Use new washers	35 N.m (3.6 kgf.m, 26 lbf.ft)
	Front brake line		15 N.m (1.5 kgf.m, 11 lbf.ft)
	Rear brake caliper bracket bolts		108 N.m (11.0 kgf.m, 80 lbf.ft)
	Rear brake caliper bolts		35 N.m (3.6 kgf.m, 26 lbf.ft)
	Rear brake hose banjo bolt	Use new washers	35 N.m (3.6 kgf.m, 26 lbf.ft)
	Rear brake line		15 N.m (1.5 kgf.m, 11 lbf.ft)
	Pedal feel simulator/brake pedal nuts		12 N.m (1.2 kgf.m, 9 lbf.ft)
	Brake pedal bracket bolts		22 N.m (2.2 kgf.m, 16 lbf.ft)
Electric servo brake	Brake pedal feel simulator brake line (10 mm)		15 N.m (1.5 kgf.m, 11 lbf.ft)
	Brake pedal feel simulator brake line (12 mm)		22 N.m (2.2 kgf.m, 16 lbf.ft)
	Brake tandem motor cylinder brake line		15 N.m (1.5 kgf.m, 11 lbf.ft)
VSA	VSA modulator-control unit brake line (10 mm)		15 N.m (1.5 kgf.m, 11 lbf.ft)
VSA	VSA modulator-control unit brake line (12 mm)		22 N.m (2.2 kgf.m, 16 lbf.ft)

Body

Location	Item	Remark	Torque
Frame	Front subframe bolts *1	Use new bolts	93 N.m (9.5 kgf.m, 69 lbf.ft)
	Front subframe rear stay bolts *1		38 N.m (3.9 kgf.m, 28 lbf.ft)
	Rear subframe bolts (14mm) *1	Use new bolts	93 N.m (9.5 kgf.m, 69 lbf.ft)
	Rear subframe bolts (10mm) *1	Use new bolts	54 N.m (5.5 kgf.m, 40 lbf.ft)
	Rear subframe front stay bolts *1	Use new bolts	54 N.m (5.5 kgf.m, 40 lbf.ft)
	Rear subframe stiffener bolts *1	Use new bolts	59 N.m (6.0 kgf.m, 44 lbf.ft)
	Rear subframe rear stay bolts *1		22 N.m (2.2 kgf.m, 16 lbf.ft)
	Rear bulkhead gusset bolts (TORX)		28 N.m (2.9 kgf.m, 21 lbf.ft)
	Rear bulkhead gusset bolts		28 N.m (2.9 kgf.m, 21 lbf.ft)
	Rear bulkhead gusset nuts		28 N.m (2.9 kgf.m, 21 lbf.ft)
	IPU guard bolts		22 N.m (2.2 kgf.m, 16 lbf.ft)

Heating, Ventilation, and Air Conditioning

Location	Item	Remark	Torque
A/C compressor	Electric A/C compressor assembly bolts		22 N.m (2.2 kgf.m, 16 lbf.ft)
A/C compressor	Electric A/C compressor relief valve	Use new O-ring	9.8 N.m (1.0 kgf.m, 7.2 lbf.ft)
Receiver line	A/C pressure sensor	Use new O-ring	11 N.m (1.1 kgf.m, 8 lbf.ft)

Body Electrical

Location	Item	Remark	Torque
Wipers/washers	Windshield wiper arm nut		29 N.m (3.0 kgf.m, 21 lbf.ft)
