Removal and Installation

  1. Rear Shelf - Remove
  2. RF Unit - Remove

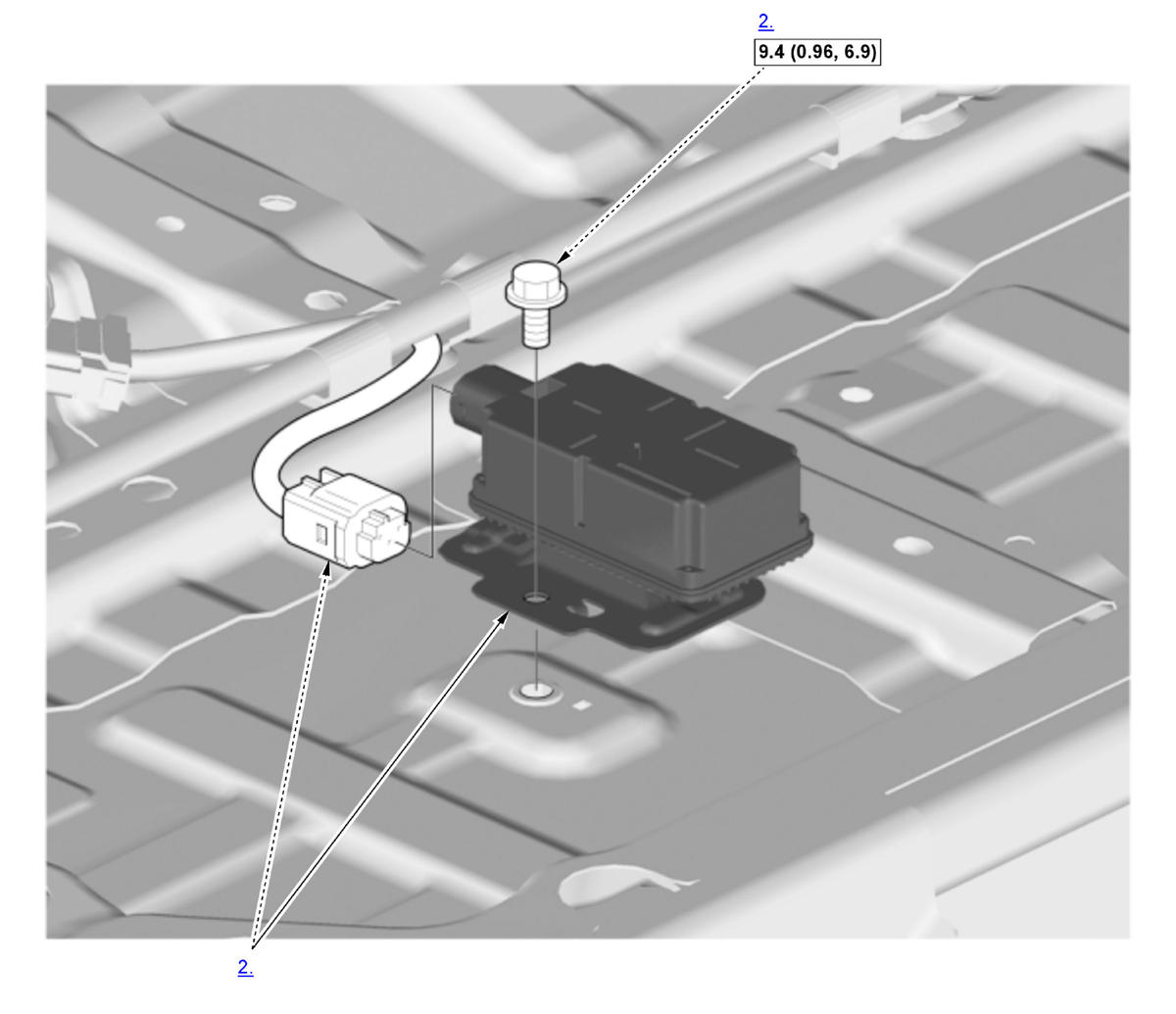

    GHH420656Courtesy of HONDA, U.S.A., INC.
    Torque: N.m (kgf/m, lbf.ft)
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
