DTC P0630
DTC P0630: VIN Not Programmed or Mismatch
General Description

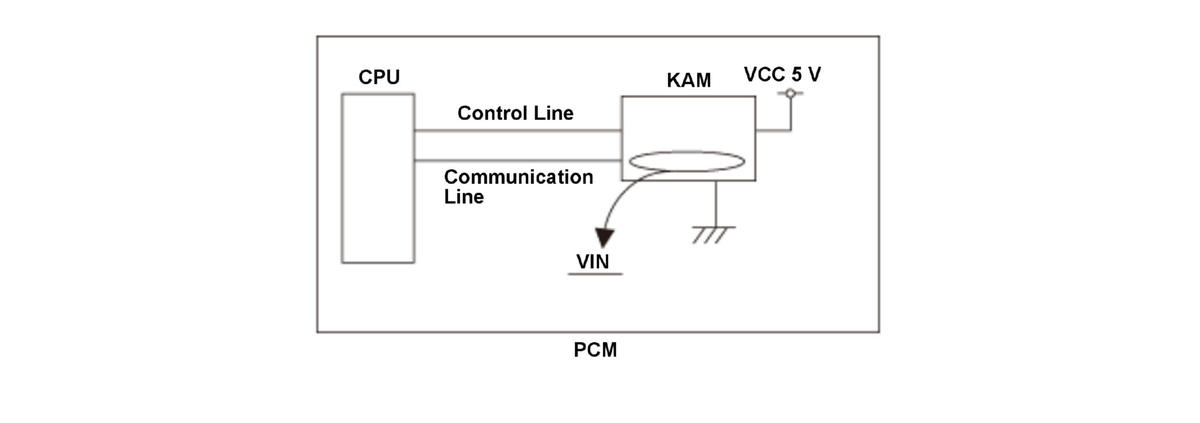

The powertrain control module (PCM) stores a vehicle identification number (VIN) in the keep alive memory (KAM) and outputs the VIN according to commands from the HDS. The VIN for each vehicle is registered to the PCM using the HDS. The registered VIN is read by the CPU from the KAM after the vehicle is turned to the ON mode, or after the Clear command is executed. If the VIN is not registered in the KAM when the vehicle is turned to the ON mode, or when the Clear command is executed, the PCM detects a VIN unregistered condition and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type, OBD Status
| Execution | Continuous |
| Sequence | None |
| Duration | 1 second or less |
| DTC Type | One drive cycle, MIL on |
| OBD Status | PASSED/FAILED/NOT COMPLETED (STILL TESTING) |
Enable Conditions
| Condition | |
|---|---|
| Vehicle | ON mode |
Malfunction Threshold
The VIN is not registered in the KAM in the PCM.
Possible Cause
NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.
- VIN not registered in the PCM KAM
Diagnosis Details
Conditions for setting the DTC
When a malfunction is detected, the MIL comes on and a Pending DTC, a Confirmed DTC, and the freeze data are stored in the PCM memory.
Conditions for clearing the DTC
When the VIN registration is completed, the MIL is cleared.
