Valve Inspection: Inspection

  1. Valve - Remove
  2. Valve - Inspect

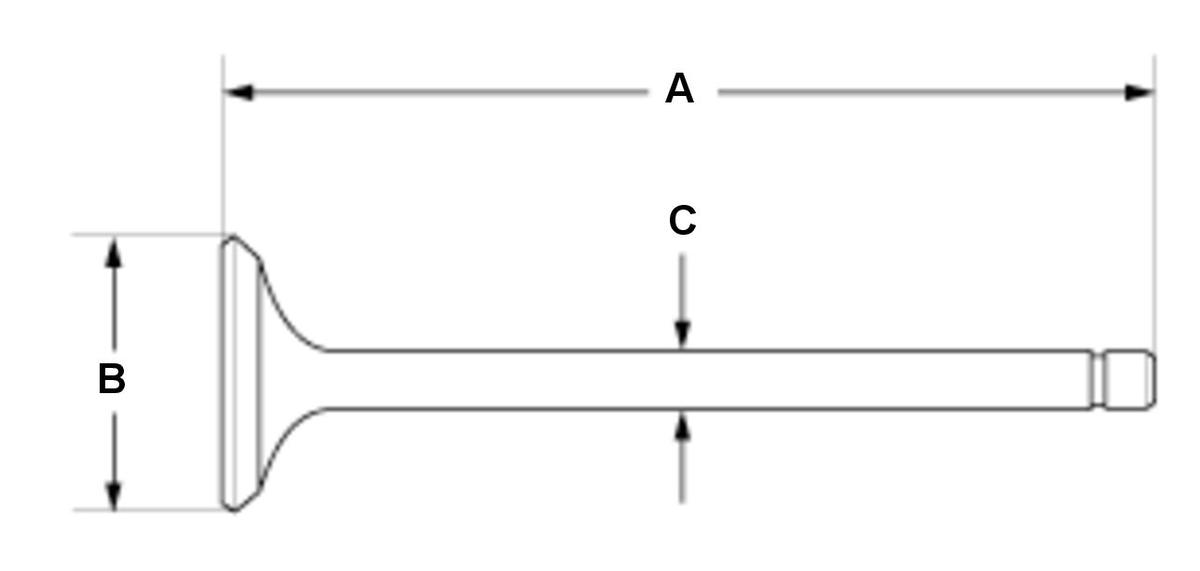

    GHH435262Courtesy of HONDA, U.S.A., INC.
    		 1. Measure the valve in these areas.

    Intake Valve Dimensions

    Exhaust Valve Dimensions
    A Standard (New):  115.65-116.25 mm (4.5531-4.5768 in)
    B Standard (New):  25.85-26.15 mm (1.0177-1.0295 in)
    C Standard (New):  5.45-5.46 mm (0.2146-0.2150 in)
    C Service Limit:  5.42 mm (0.2134 in)
    A Standard (New):  117.50-118.10 mm (4.6260-4.6496 in)
    B Standard (New):  32.85-33.15 mm (1.2933-1.3051 in)
    C Standard (New):  5.48-5.49 mm (0.2157-0.2161 in)
    C Service Limit:  5.45 mm (0.2146 in)
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
