Door Lock Control

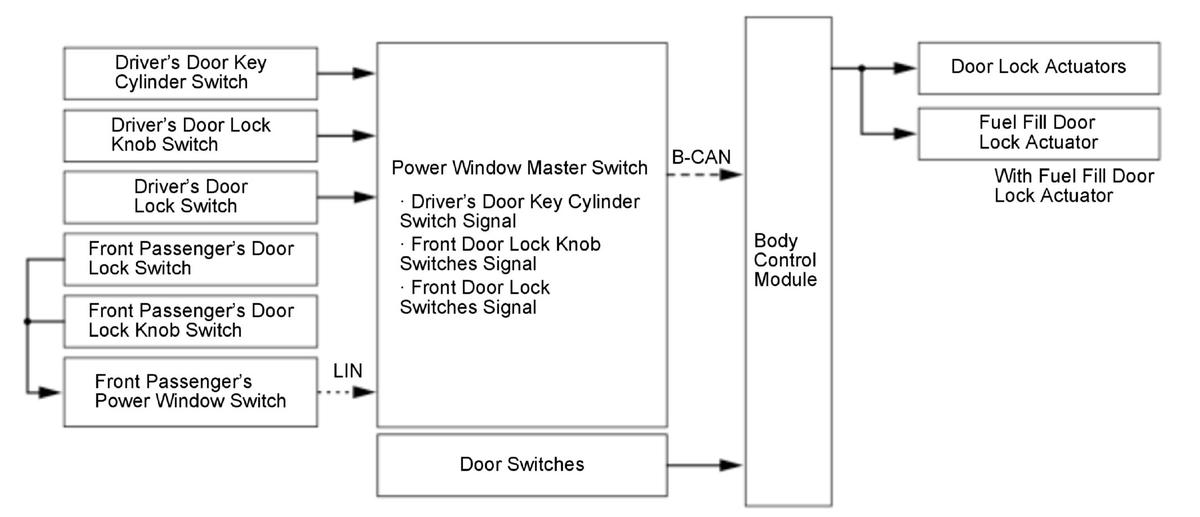

The door lock control function allows the body control module to detect the status of various switch signals and control each actuator in order to lock and unlock the doors.
The system has three circuits between the door lock actuators and the body control module to improve safety of the system. One is for the driver's door lock actuator, and others are for the left rear door lock actuator and passenger's side door lock actuators. The door lock actuator circuit has two fuses. When one fuse is blown, another fuse in the same circuit must be checked.
