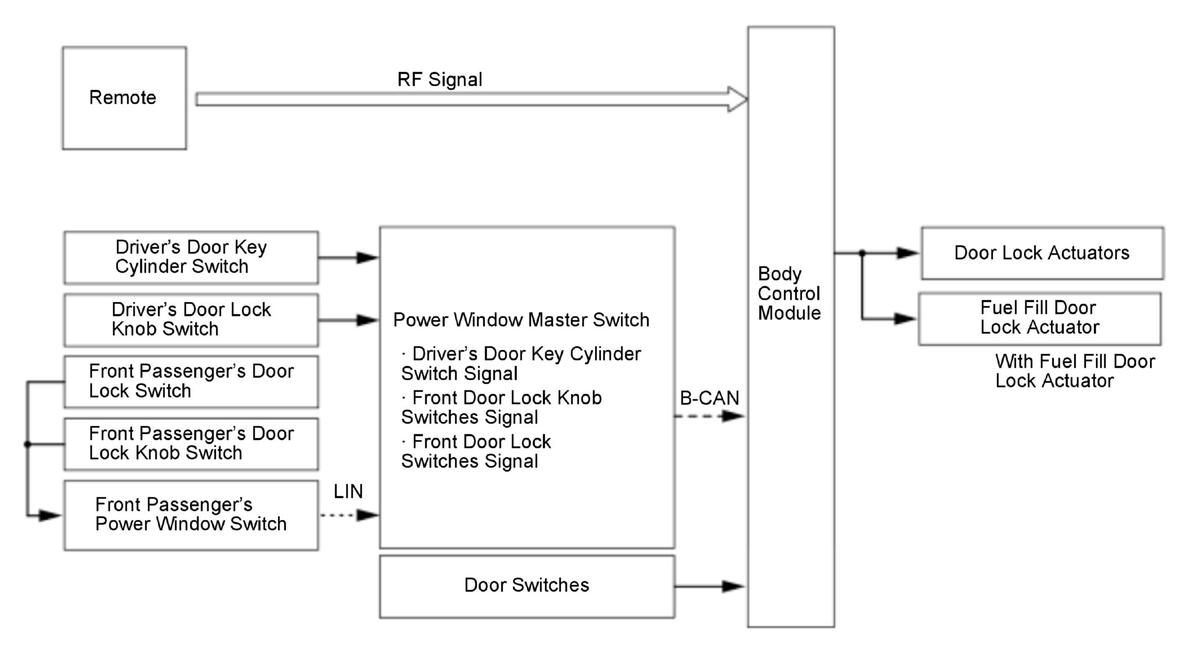

Keyless Door Lock Control
The remote transmits a lock or unlock signal to the body control module, which then controls the door lock actuator by the B-CAN and other various switch signals. The customization menu can set the relock timer value.
Courtesy of HONDA, U.S.A., INC.
|
