Trunk Lid Control

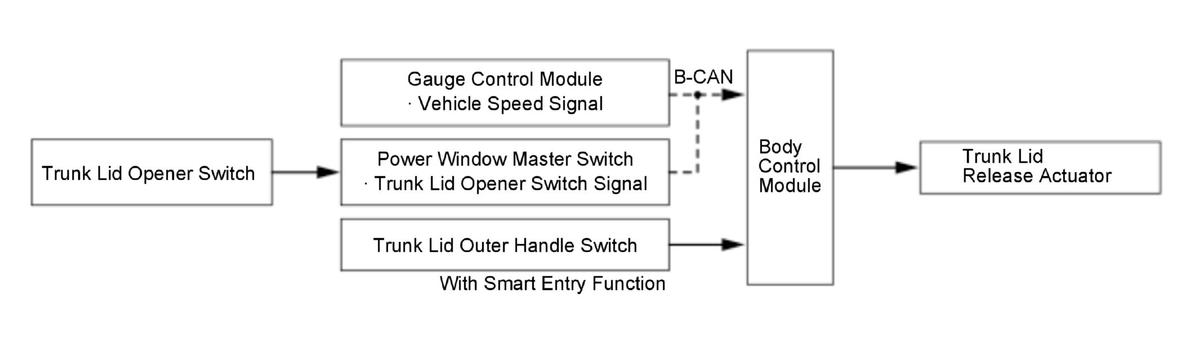

In the trunk lid release function, the body control module activates the trunk lid release actuator by operation of the trunk lid opener switch or the trunk lid outer handle switch when the vehicle runs at a speed less than 1.2 mph (2 km/h). The trunk lid can be unlocked by operating the trunk lid outer handle switch without having the remote when all the doors are unlocked.

GHH387942Courtesy of HONDA, U.S.A., INC.
