DTC P0562 (Motor Control Module): General Description

Courtesy of HONDA, U.S.A., INC.

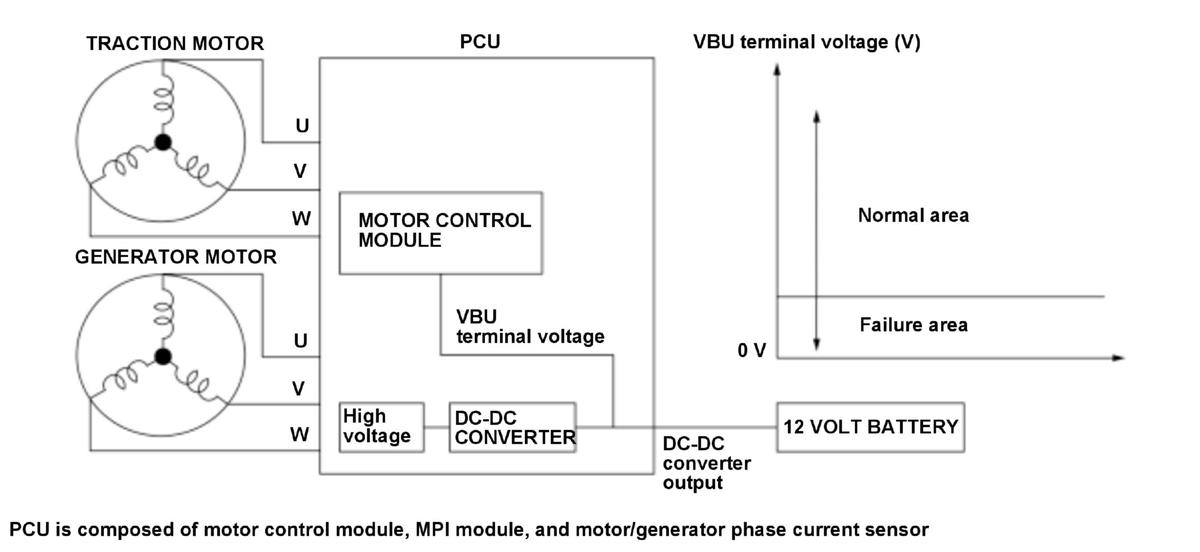

The power control unit (PCU) controls the voltage at which to charge a 12 volt battery according to the input from the VBU terminal voltage. If the VBU terminal voltage is out of a specified value for a specified time, the motor control module in the PCU detects a malfunction and stores a DTC.
