DTC P06B1 (Generator Motor Control Module): General Description

Courtesy of HONDA, U.S.A., INC.

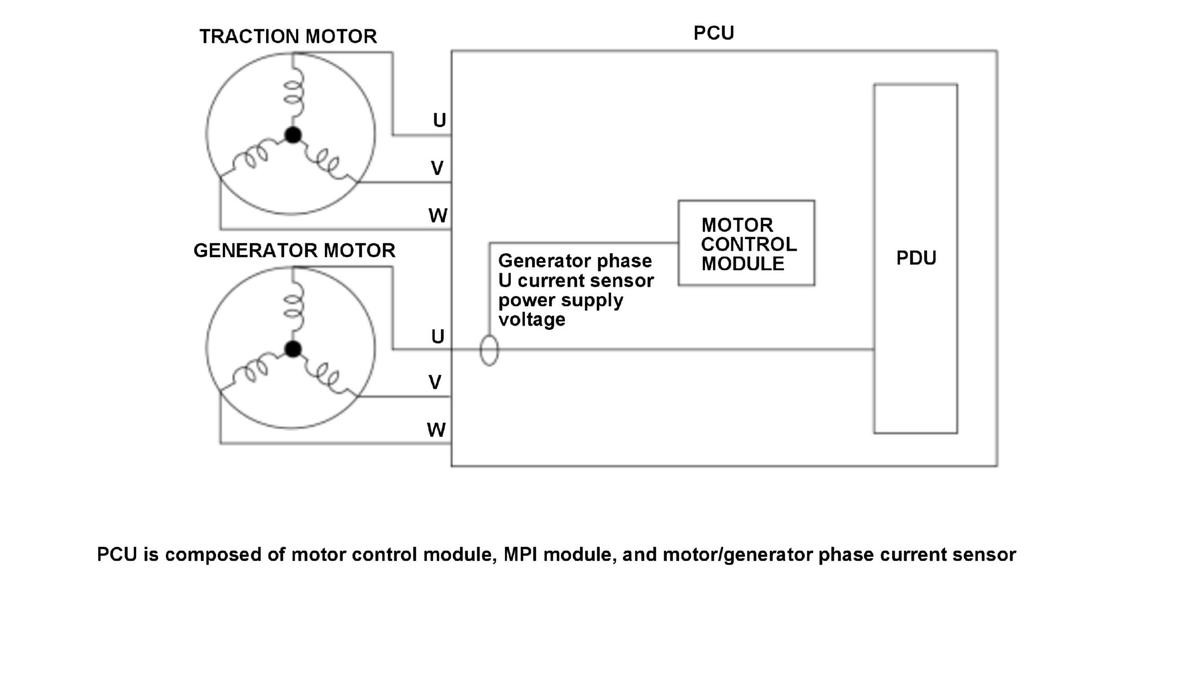

The power control unit (PCU) controls the motor output based on the generator phase U current sensor signals. When the power supply voltage is out of a specified range for a set time, the motor control module in the PCU detects a malfunction and stores a DTC.
