DTC P0AF5: General Description

Courtesy of HONDA, U.S.A., INC.

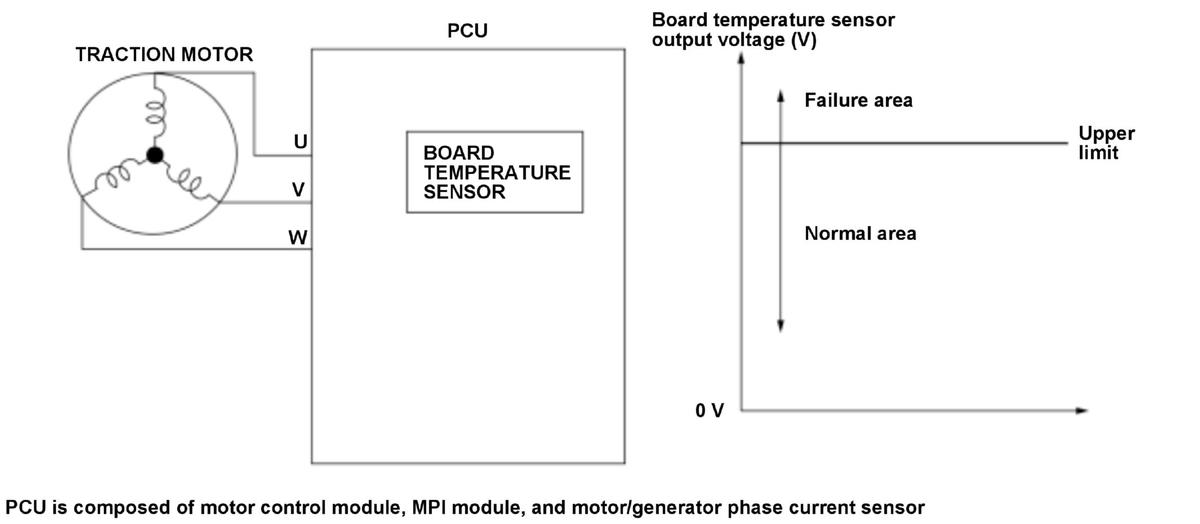

The power control unit (PCU) monitors the board temperature sensor value to prevent malfunction of internal parts due to heat generation. If the board temperature sensor output voltage is a specified voltage for a specified time, the motor control module in the PCU detects a malfunction and stores a DTC.
