DTC U1600 (Motor Control Module): General Description

Courtesy of HONDA, U.S.A., INC.

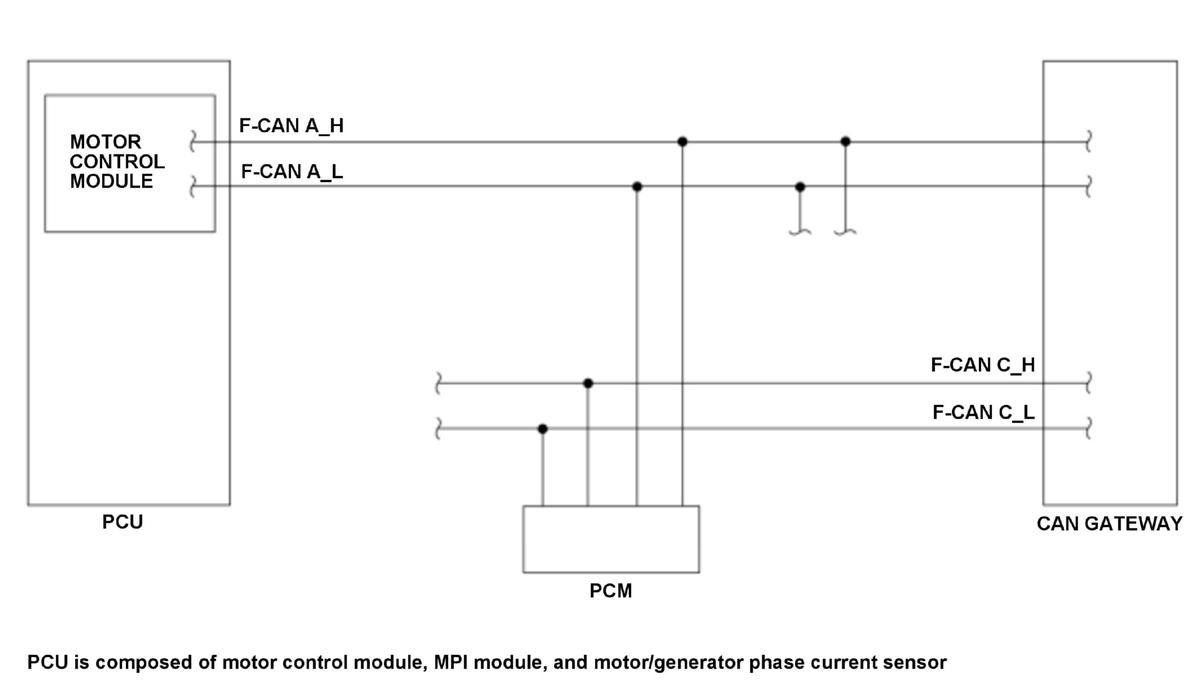

The controller area network (CAN) transmits/receives pulsing signals to/from the control modules simultaneously by using two signal lines (H line and L line). When the motor control module does not receive the signals from the powertrain control module (PCM) via the F-CAN lines or the received data is abnormal for a specified time, a malfunction is detected and a DTC is stored.
