PCM Gear Unit Control System PCM Connector for Inputs and Outputs
NOTE: Refer to the PCM Connector for Inputs and Outputs in the Fuel and Emissions Systems as needed.
| Connector Index |
|---|
| PCM Connector A (50P) |
| PCM Connector E (80P) |
| SBW Shifter Control Module 20P Connector |
| Park Pawl Actuator Driver Unit 26P Connector |

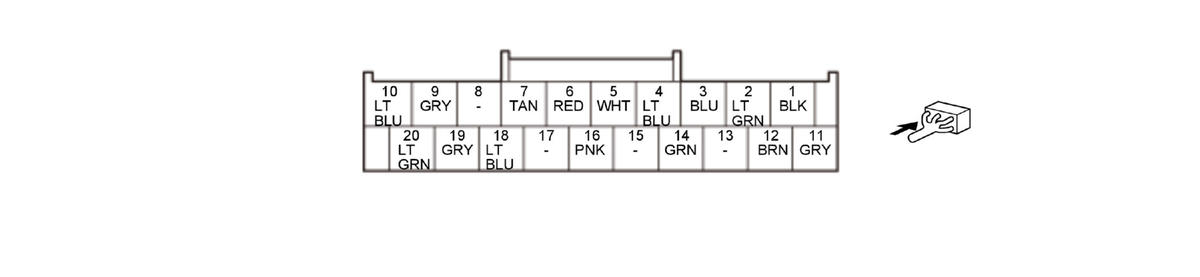

SBW Shifter Control Module 20P Connector (female terminals)
| Terminal Number | Terminal Name | Description |
|---|---|---|
| 1 | GND | Ground for SBW shifter control module |
| 2 | SBW SG1 | Sensor ground |
| 3 | ILL- (LED) | Detects illumination control signal |
| 4 | SBW PPOS2 | Detects park position sensor P position signal |
| 5 | F-CAN A_H | Sends and receives communication signal |
| 6 | F-CAN A_L | Sends and receives communication signal |
| 7 | SRKS | Outputs key-release signal |
| 8 | Not used | |
| 9 | EP-CAN A_H | Sends and receives communication signal |
| 10 | EP-CAN A_L | Sends and receives communication signal |
| 11 | SBW PPOS1 | Detects park position sensor P position signal |
| 12 | SBW VCC1 | Provides sensor reference voltage |
| 13 | Not used | |
| 14 | ATP-P | Outputs P position signal |
| 15 | Not used | |
| 16 | ACC | Power source for SBW shifter control module |
| 17 | Not used | |
| 18 | IG1 SHIFTER | Power source for SBW shifter control module |
| 19 | ILLUMI+ | Power source for SBW shifter illumination |
| 20 | +B SHIFTER | Power source for SBW shifter control module |
Park Pawl Actuator Driver Unit 26P Connector (female terminals)
| Terminal Number | Terminal Name | Description |
|---|---|---|
| 1 | Not used | |
| 2 | GND | Ground for park pawl actuator driver unit |
| 3 | GND | Ground for park pawl actuator driver unit |
| 4 | P-ACT MTR W | Detects park pawl actuator motor W-phase signal |
| 5 | P-ACT MTR V | Detects park pawl actuator motor V-phase signal |
| 6 | P-ACT MTR U | Detects park pawl actuator motor U-phase signal |
| 7 | F-CAN A_L | Sends and receives communication signal |
| 8 | F-CAN A_H | Sends and receives communication signal |
| 9 | IGN TRX | Communication line |
| 10 | PARKCMD | Sends and receives communication signal |
| 11 | PARKBUSY | Sends and receives communication signal |
| 12 | Not used | |
| 13 | +B P-ACT UNIT | Power source for park pawl actuator driver unit |
| 14 | Not used | |
| 15 | IG1 P-ACT | Detects ignition signal |
| 16 | ESL PWR | Detects ESL PWR signal |
| 17 | GND | Ground for park pawl actuator driver unit |
| 18 | GND | Ground for park pawl actuator driver unit |
| 19 | P-ACT EENC | Ground for park pawl actuator encoder |
| 20 | P-ACT VENC | Power source for park pawl actuator encoder |
| 21 | P-ACT RB | Detects park pawl actuator encoder signal |
| 22 | P-ACT RA | Detects park pawl actuator encoder signal |
| 23 | P-ACT RLY CL- | Drives park pawl actuator relay |
| 24 | Not used | |
| 25 | Not used | |
| 26 | Not used |
