Under-Hood Fuse/Relay Box (Relay Circuit Board Part)

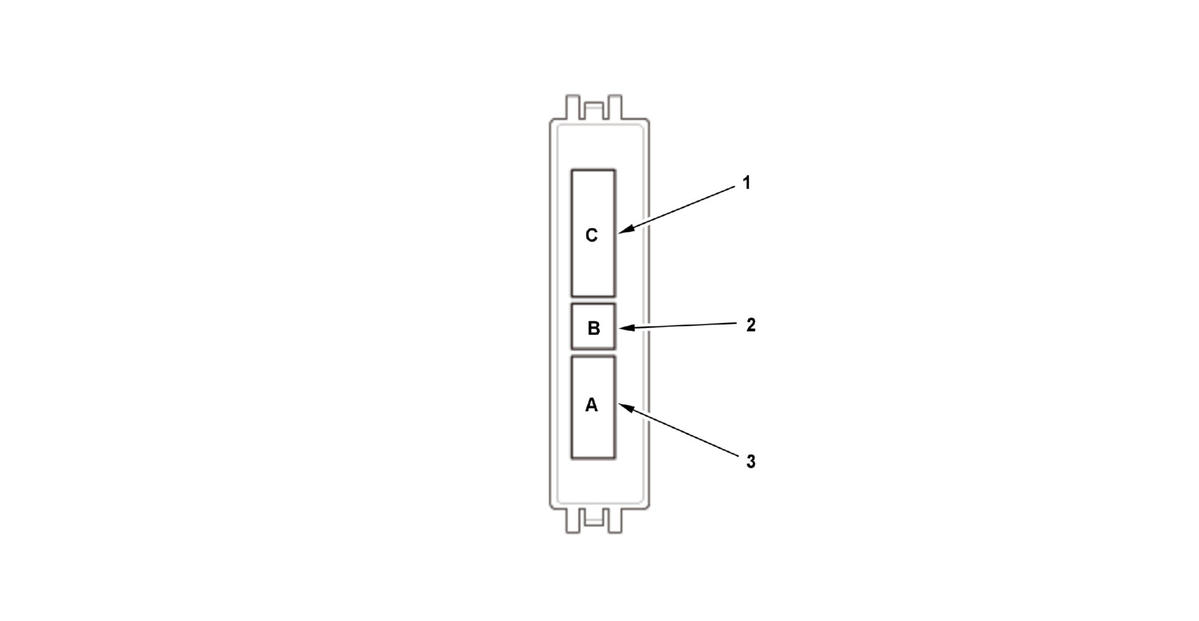

Fig 1: Under-Hood Fuse/Relay Box (Relay Circuit Board Part) Component Locations
GHH384314Courtesy of HONDA, U.S.A., INC.
Under-Hood Fuse/Relay Box (Relay Circuit Board Part) Legend

Socket Ref Terminal Connects to Notes
A 3 8 Engine compartment wire harness
B 2 6 Engine compartment wire harness
C 1 18 Engine compartment wire harness
