Power Seat Control Unit Connector For Inputs And Outputs
| Connector Index |
|---|

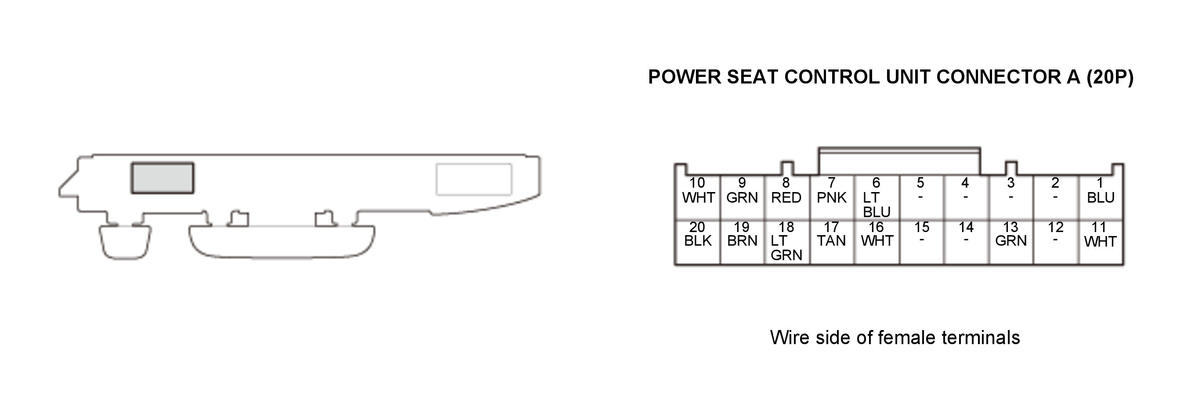

| POWER SEAT CONTROL UNIT CONNECTOR A (20P) |

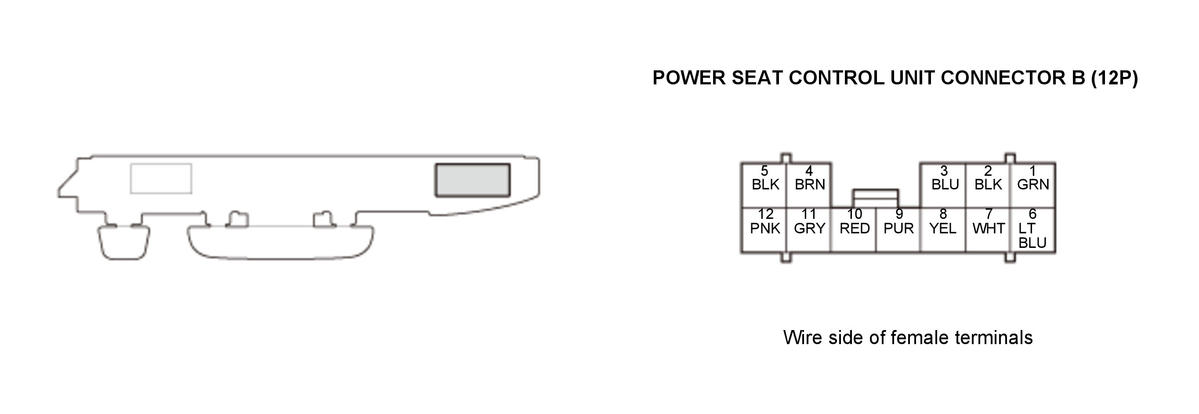

| POWER SEAT CONTROL UNIT CONNECTOR B (12P) |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | ATP-P | Detects ATP-P signal | With out of P position: about battery voltage With P position: less than 0.2 V |
| 2 | Not used | - - - | - - - |
| 3 | Not used | - - - | - - - |
| 4 | Not used | - - - | - - - |
| 5 | Not used | - - - | - - - |
| 6 | SVCC | Power source for power seat sensor | With power seat control unit in wakeup mode: about 5 V |
| 7 | FHSE | Detects FHSE signal | About 0.5 - 4.5 V (depending on front up-down position) |
| 8 | SLSE | Detects SLSE signal | About 0.5 - 4.5 V (depending on slide position) |
| 9 | RHSE | Detects RHSE signal | About 0.5 - 4.5 V (depending on rear up-down position) |
| 10 | RESE | Detects RESE signal | About 0.5 - 4.5 V (depending on recline position) |
| 11 | +B BACKUP | Power source for power seat control unit | About battery voltage at all times |
| 12 | Not used | - - - | - - - |
| 13 | IG1 METER | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 14 | Not used | - - - | - - - |
| 15 | Not used | - - - | - - - |
| 16 | B-CAN_H | Communication line | - - - |
| 17 | B-CAN_L | Communication line | - - - |
| 18 | UART (DPMS) | Communication line | - - - |
| 19 | SEG | Ground for power seat sensor | Less than 0.2 V at all times |
| 20 | GND | Ground for power seat control unit | Less than 0.2 V at all times |
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | SLIDE RR | Drives slide motor | With slide motor operation (rear side): about battery voltage |
| 2 | GND | Ground for power seat control unit | Less than 0.2 V at all times |
| 3 | SLIDE FR | Drives slide motor | With slide motor operation (front side): about battery voltage |
| 4 | RR HT DN | Drives rear up-down motor | With rear up-down motor operation (down): about battery voltage |
| 5 | GND | Ground for power seat control unit | Less than 0.2 V at all times |
| 6 | +B DR P/SEAT(SLI) | Detects +B DR P/SEAT(SLI) signal | About battery voltage at all times |
| 7 | FR HT DN | Drives front up-down motor | With front up-down motor operation (down): about battery voltage |
| 8 | REC FR | Drives recline motor | With recline motor operation (front side): about battery voltage |
| 9 | RR HT UP | Drives rear up-down motor | With rear up-down motor operation (up): about battery voltage |
| 10 | FR HT UP | Drives front up-down motor | With front up-down motor operation (up): about battery voltage |
| 11 | REC RR | Drives recline motor | With recline motor operation (rear side): about battery voltage |
| 12 | +B DR P/SEAT(REC) | Detects +B DR P/SEAT(REC) signal | About battery voltage at all times |
