Description
>>
Driving Support System
>>
Function Failure Indication
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

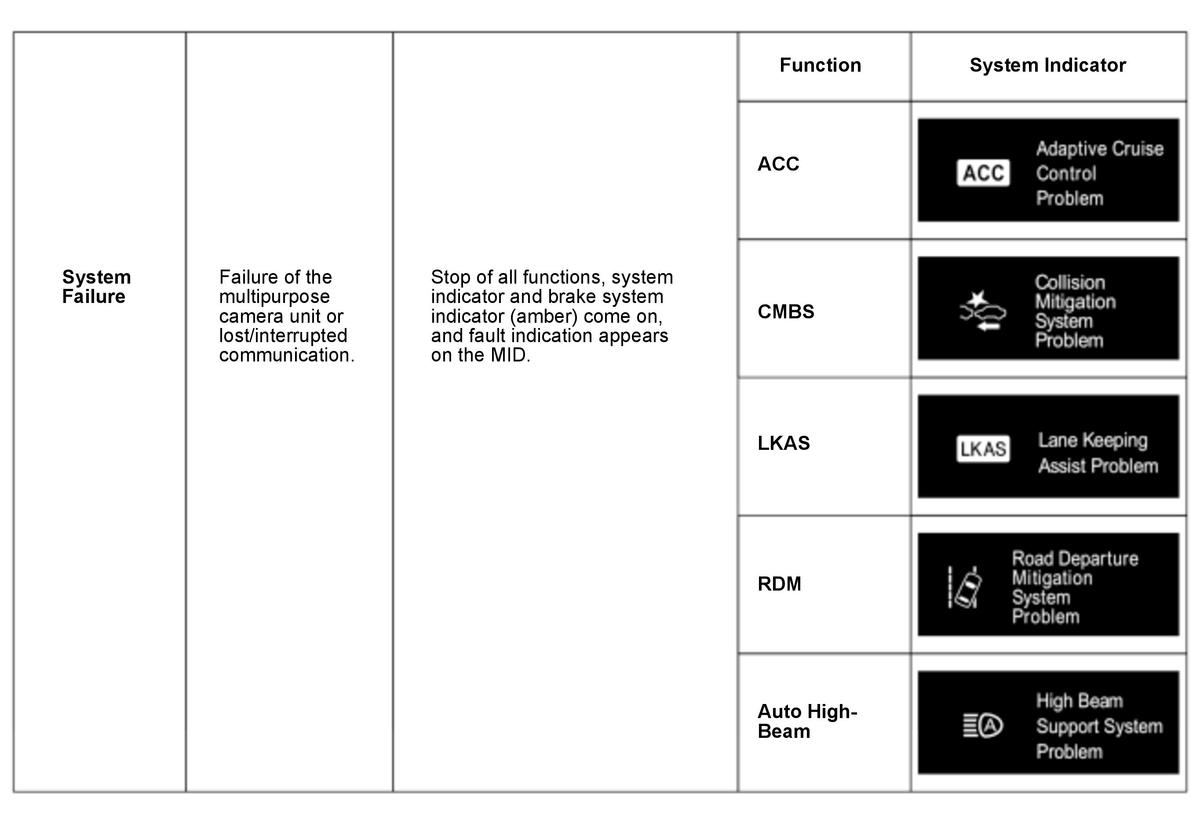

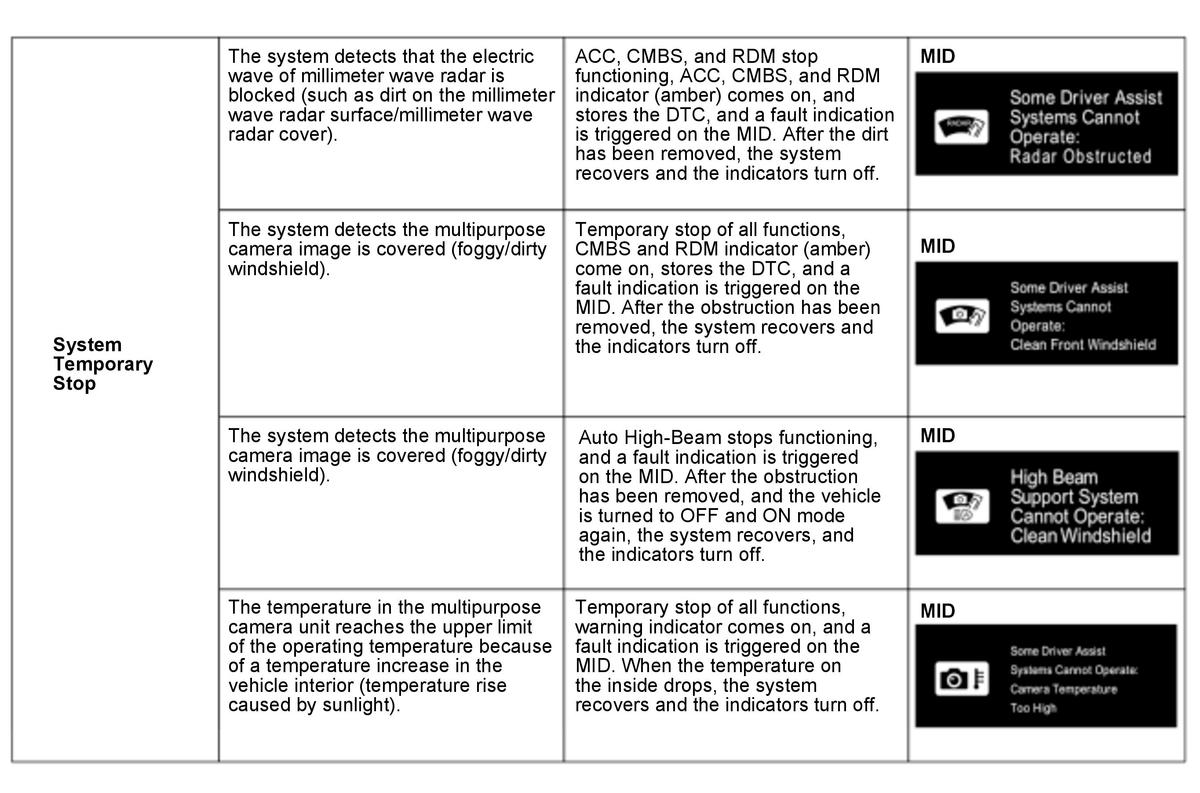

Function Failure Indication
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
