BD Player Unit Connector For Inputs And Outputs (2016 2017 2018)

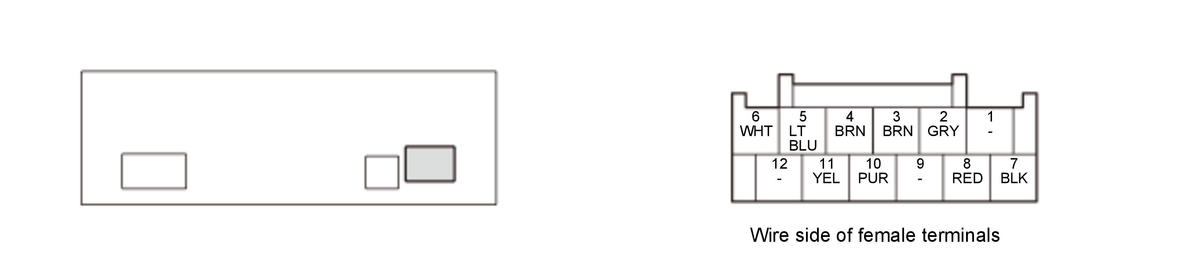

BD PLAYER UNIT CONNECTOR A (12P)

Courtesy of HONDA, U.S.A., INC.

Cavity	Terminal Name	Description
A1	Not used	- - -
A2	ILLUMI+	Detects parking light on signal
A3	SCTY(1)	Security signal from MICU
A4	GA BUS +	GA-Net bus communication signal
A5	GA SYS ON	Detects BD player unit switching ON/OFF
A6	GA +B	Continuous power source
A7	GND	Ground for BD player unit
A8	ILLUMI- LED)	Detects illumination control signal
A9	Not used	- - -
A10	SCTY(2)	Security signal to rear controller and screen
A11	GA BUS -	GA-Net bus communication signal
A12	Not used	- - -

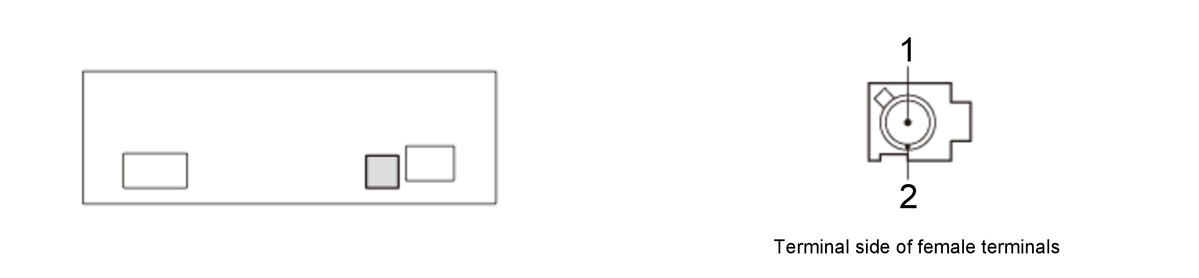

BD PLAYER UNIT CONNECTOR B (2P)

Courtesy of HONDA, U.S.A., INC.

Cavity	Terminal Name	Description
B1	SPDIF	Outputs sound signal to audio-navigation unit
B2	SH (SPDIF)	Shield for terminals No. 1

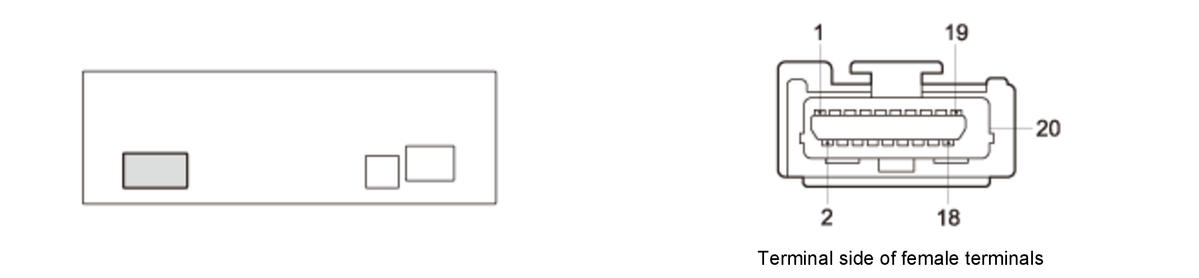

BD PLAYER UNIT CONNECTOR C (20P)

Courtesy of HONDA, U.S.A., INC.

Cavity	Terminal Name	Description
C1	T.M.D.S DATA2+	Inputs video/audio data signal
C2	T.M.D.S DATA2 SHIELD	Shield for terminals No. 1 and No. 3
C3	T.M.D.S DATA2-	Inputs video/audio data signal
C4	T.M.D.S DATA1+	Inputs video/audio data signal
C5	T.M.D.S DATA1 SHIELD	Shield for terminals No. 4 and No. 6
C6	T.M.D.S DATA1-	Inputs video/audio data signal
C7	T.M.D.S DATA0+	Inputs video/audio data signal
C8	T.M.D.S DATA 0 SHIELD	Shield for terminals No. 7 and No. 9
C9	T.M.D.S DATA0-	Inputs video/audio data signal
C10	T.M.D.S CLOCK+	TMDS synchronous signal
C11	T.M.D.S CLOCK SHIELD	Shield for terminals No. 10 and No. 12
C12	T.M.D.S CLOCK+	TMDS synchronous signal
C13	CEC	HDMI control signal
C14	UTILITY	Not used
C15	SCL	I2C bus synchronous signal
C16	SDA	I2C bus communication signal
C17	DDC, CEC GROUND	Ground for HDMI control signal
C18	+5V POWER	5 V power supply
C19	HOT PLUG DETECT	Detects connection signal
C20	SHIELD	Shield for all of terminals
