Cd Player Unit Connector For Inputs And Outputs (2019 2020 2021)
| Connector Index |
| CD Player Unit Connector A (12P) |
| CD Player Unit Connector B (2P) |
| CD Player Unit Connector C (2P) |

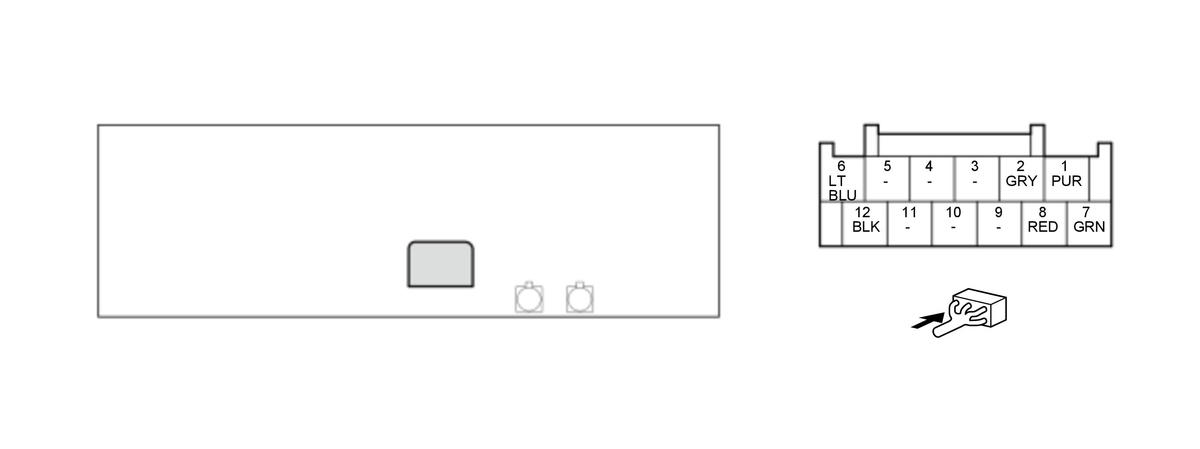

CD Player Unit Connector A (12P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
MOST ECL 3 |
Inputs ECL signal |
| A2 |
ILLUMI+ |
Detects illumination on signal |
| A3 |
Not used |
- - - |
| A4 |
Not used |
- - - |
| A5 |
Not used |
- - - |
| A6 |
+B RADIO |
Continuous power source |
| A7 |
MOST ECL 7 |
Outputs ECL signal |
| A8 |
ILLUMI-(LED) |
Inputs illumination control signal |
| A9 |
Not used |
- - - |
| A10 |
Not used |
- - - |
| A11 |
Not used |
- - - |
| A12 |
GND |
Ground for CD player unit (G405) |

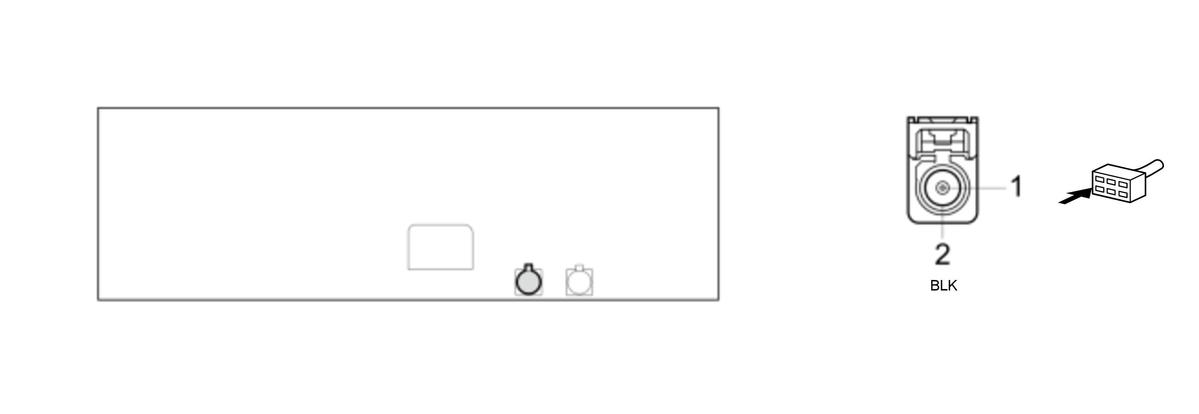

CD Player Unit Connector B (2P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| B1 |
MOST TX+ |
Outputs MOST communication signal |
| B2 |
MOST TX- |
Shield for terminal No. 1 |

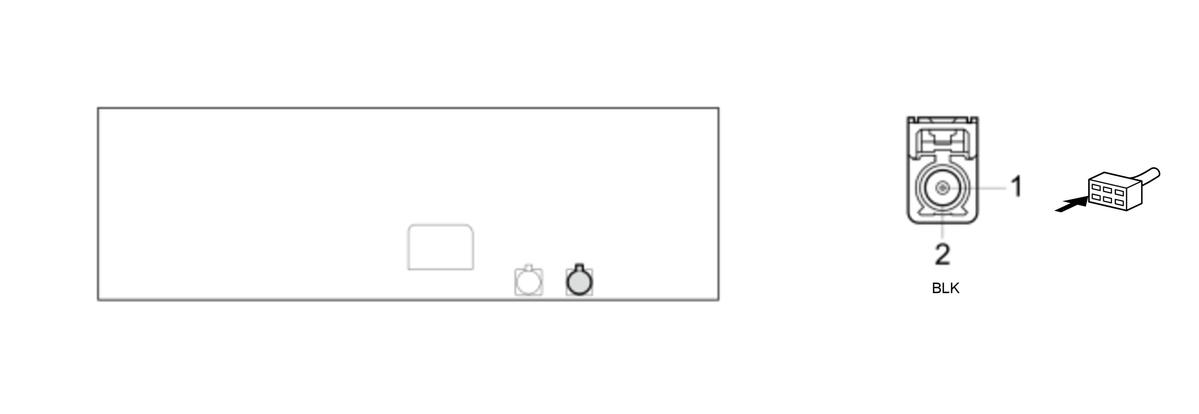

CD Player Unit Connector C (2P) (female terminals)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| C1 |
MOST RX+ |
Inputs MOST communication signal |
| C2 |
MOST RX- |
Shield for terminal No. 1 |
