DVD Player Unit Connector For Inputs And Outputs (2016 2017 2018)
| Connector Index |
| DVD Player Unit Connector A (24P) |
| DVD Player Unit Connector B (2P) |

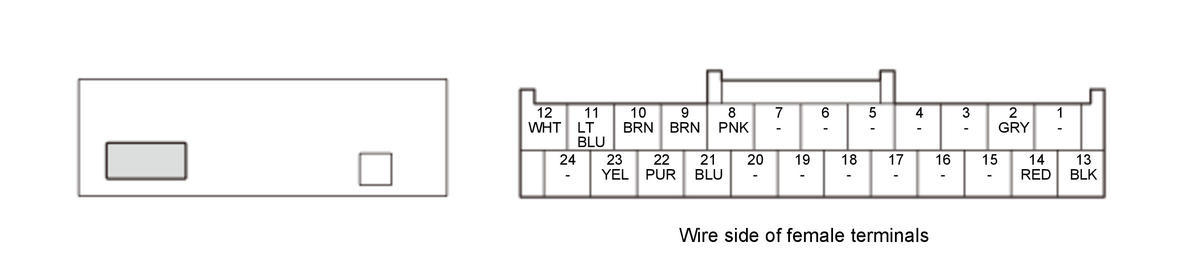

DVD PLAYER UNIT CONNECTOR A (24P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| A1 |
Not used |
- - - |
| A2 |
ILLUMI+ |
Detects parking light on signal |
| A3 |
Not used |
- - - |
| A4 |
Not used |
- - - |
| A5 |
Not used |
- - - |
| A6 |
Not used |
- - - |
| A7 |
Not used |
- - - |
| A8 |
DVD VIDEO GND |
Ground for video signal |
| A9 |
SCTY(1) |
Security signal from MICU |
| A10 |
GA BUS + |
GA-Net bus communication signal |
| A11 |
GA SYS ON |
Detects DVD player unit switching ON/OFF |
| A12 |
GA+ B |
Continuous power source |
| A13 |
GND |
Ground for DVD player unit |
| A14 |
ILLUMI-(LED) |
Detects illumination control signal |
| A15 |
Not used |
- - - |
| A16 |
Not used |
- - - |
| A17 |
Not used |
- - - |
| A18 |
Not used |
- - - |
| A19 |
Not used |
- - - |
| A20 |
Not used |
- - - |
| A21 |
DVD VIDEO |
Outputs video signal to audio unit |
| A22 |
SCTY(2) |
Security signal to rear controller and screen |
| A23 |
GA BUS - |
GA-Net bus communication signal |
| A24 |
Not used |
- - - |
DVD PLAYER UNIT CONNECTOR B (2P)
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| B1 |
SPDIF |
Outputs sound signal to audio unit |
| B2 |
SH (SPDIF) |
Shield for terminals No. 1 |
