USB Charger Unit Connector For Inputs And Outputs (2016 2017 2018)

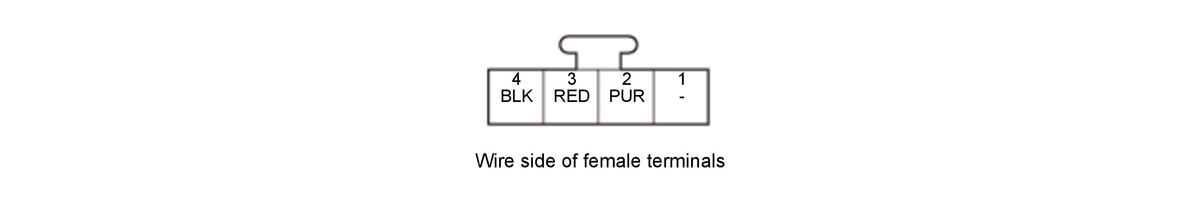

USB CHARGER UNIT 4P CONNECTOR
 Courtesy of HONDA, U.S.A., INC.
|
| Cavity |
Terminal Name |
Description |
| 1 |
Not used |
- - - |
| 2 |
ACC (DC/DC)*
1ACC* 2 |
Power source for accessories |
|
| 3 |
+B USB(15A) |
Continuous power source |
| 4 |
GND |
Ground for USB charger unit (G603) |
*1: With auto idle stop system
*2: Without auto idle stop system
