Unit Check

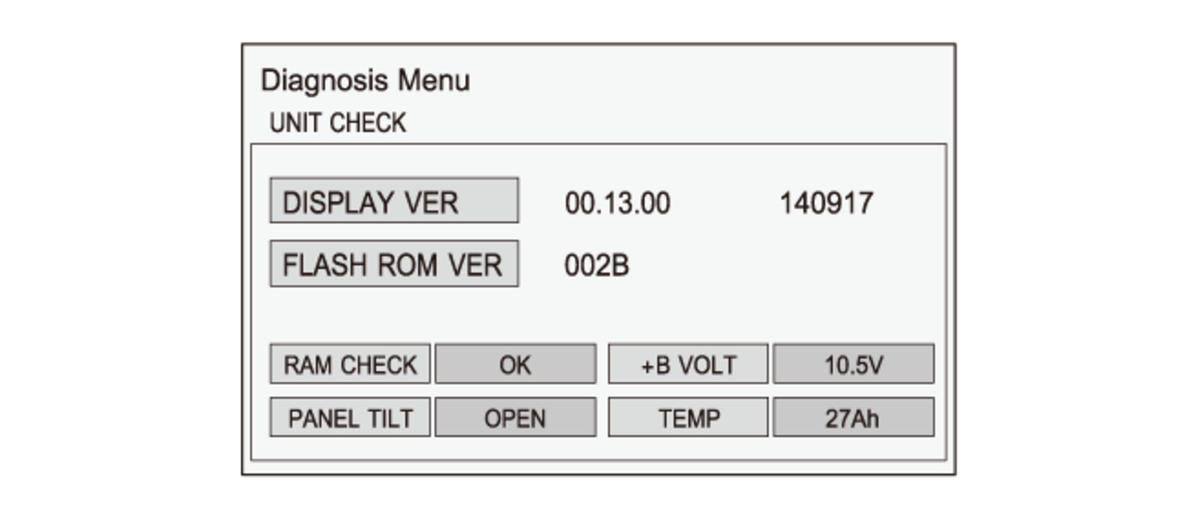

The screen displays the device version, the self-diagnostic status, and the screen status while in this self-diagnostic mode.
| Category | Check Item or Information | Display Results | |
|---|---|---|---|
| UNIT CHECK | DISPLAY VER | Indicates a version of the main microcomputer and its release date. | Software version and release date are always displayed |
| TFT-M Ver | Indicates a version of the flash ROM. | Software version is always displayed | |
| RAM CHECK | Indicates the result of REAR DISPLAY RAM CHECK. | OK (green): RAM is OK NG (red): RAM is NG -- (white): Checking |
|
| PANEL TILT | Indicates panel tilt status. | Close (green): Detects the display close Open (green): Detects the display open Open too much (green): Detects the display too much opened more than 125° Error (red): Detects illegal state of the display |
|
| +B VOLT | Indicates power supply voltage (+B) value. | (Detected voltage) (green): OK Err (red): Unable to detect voltage |
|
| TEMP | Indicates temperature value. | (Detected temperature) (green): OK Err (red): Unable to detect temperature or error of microcomputer |
|
