Engine Start/Stop Switch: Test

Engine Start/Stop Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

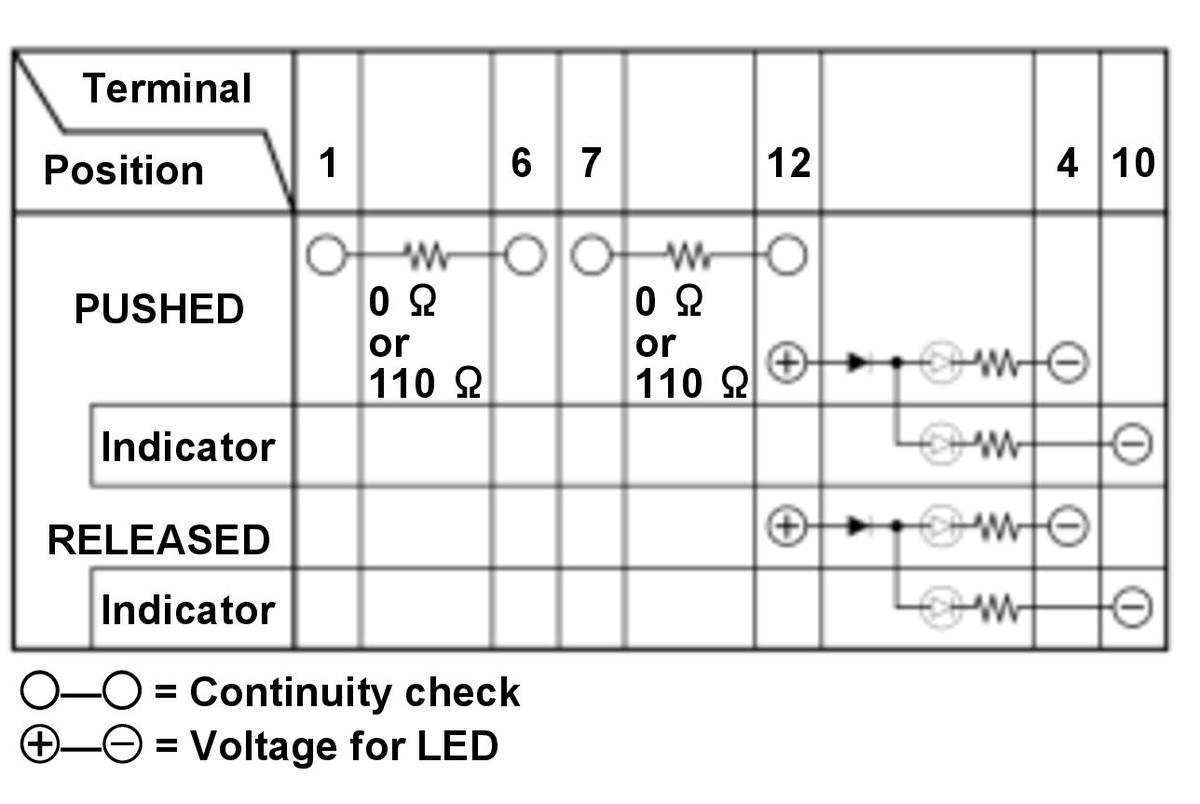

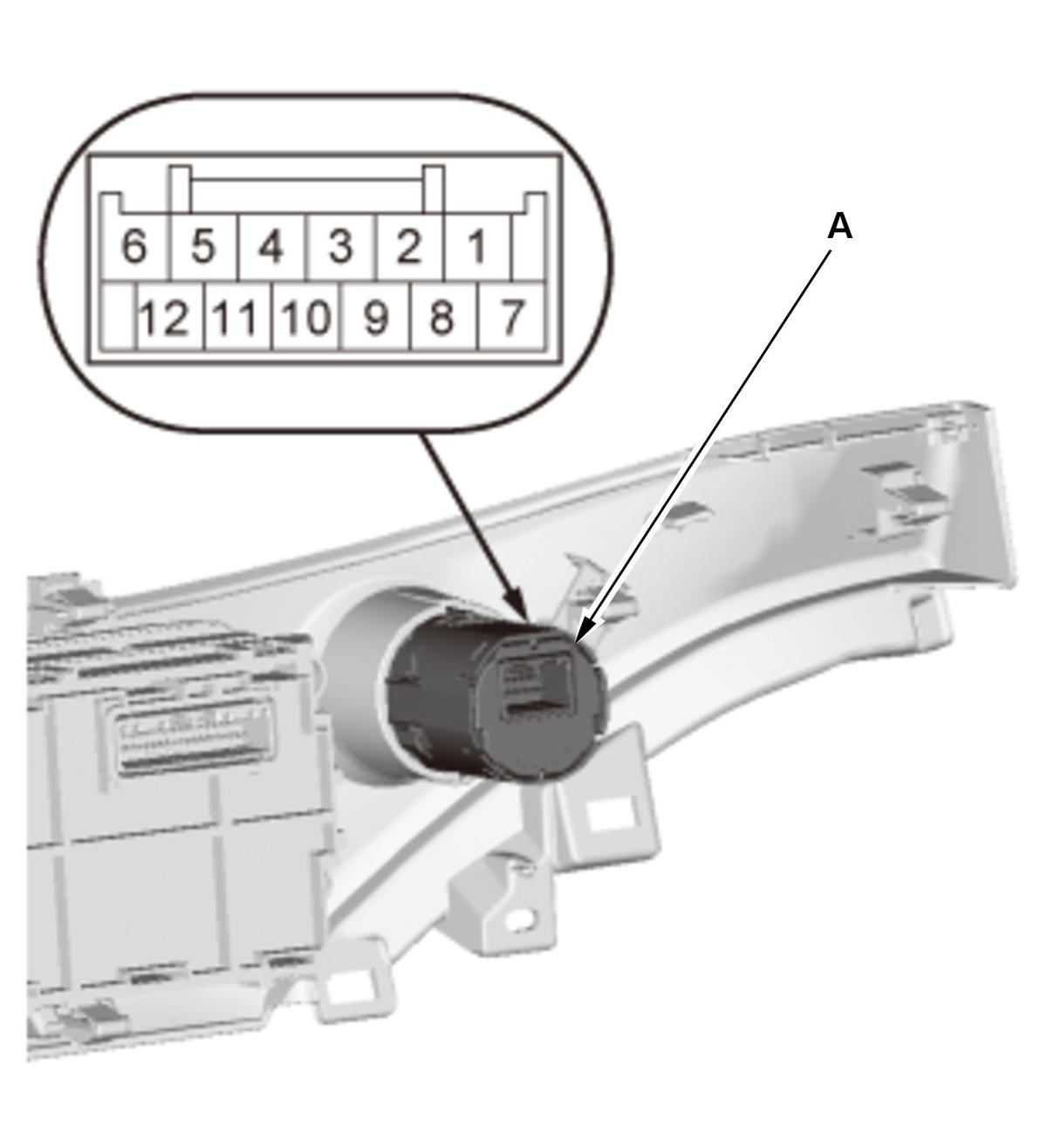

1. Check the engine start/stop switch (A) according to the table.

NOTE:

When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
Remember this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

2. If the result is not as specified, replace the engine start/stop switch .

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
