Timer for the evaluation of starting problems

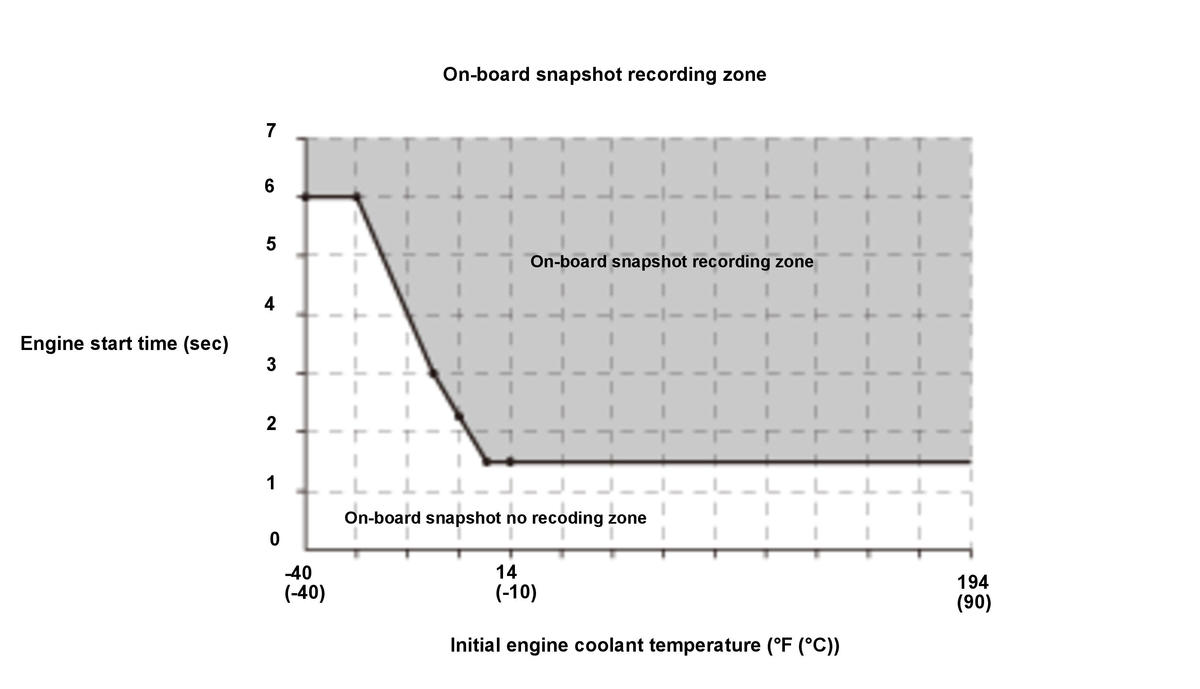

The timer for evaluation of engine starting problems is variable and depends on the engine coolant temperature when the engine starts. The relation between the engine coolant temperature and the engine start time is shown below.
| Initial engine coolant temperature (°F (°C)) | -40 (-40) |
-22 (-30) |
-13 (-25) |
-4 (-20) |
5 (-15) |
14 (-10) |
194 (90) |
| Engine start time (sec) | 6.0 | 6.0 | 3.0 | 2.25 | 1.5 | 1.5 | 1.5 |
