Dashboard - 2/3
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Dashboard - 2/3

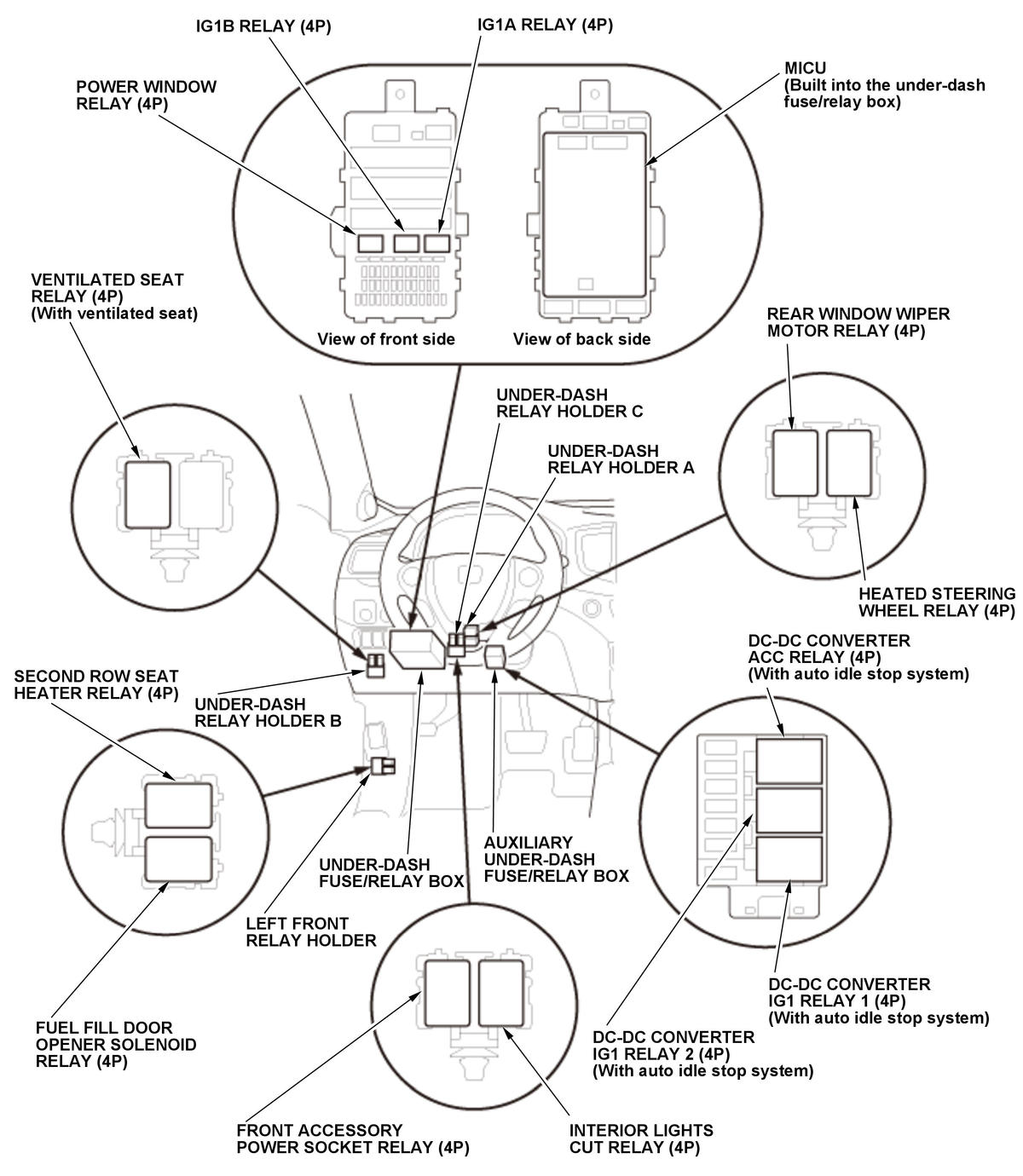

Dashboard - 2/3 Location
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
